3.4 Bulkhead installation
Check that the surface is clean, flat and straight. There must be enough space on the
other side to run the cable.

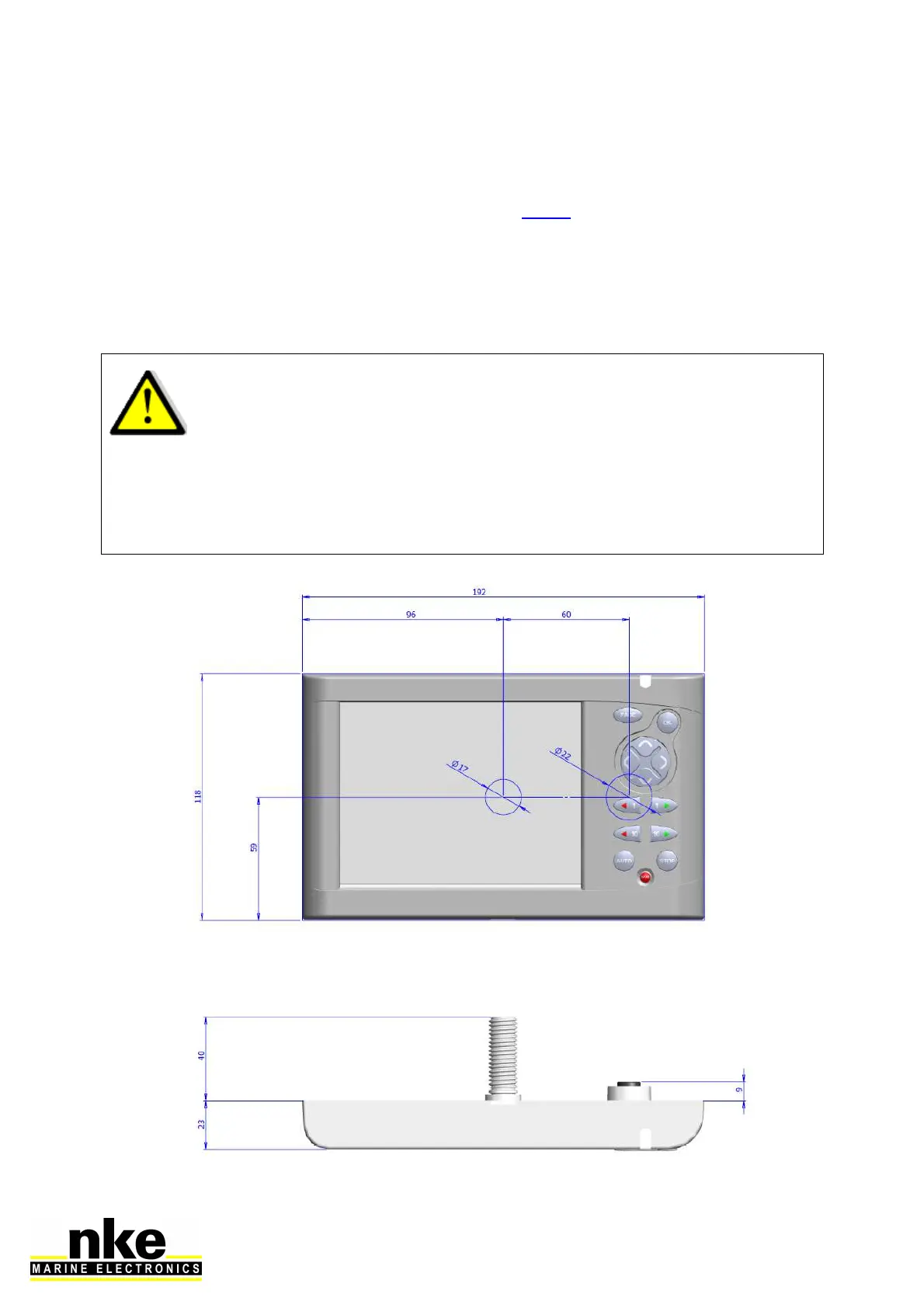

- Drill at ∅15 and Ø22 according to the drawing below,
- Clean the surface with alcohol.
- Use a silicone on the fixation perimeter
- Pull the cable through the ∅22 mm hole,
- Place the display and hand bolt.
Warning:
- When you fix the display, gently tighten the bolt by hand. Over tightening may
damage the housing and cause a leak.
- Do not use a sealant to fix the display.
