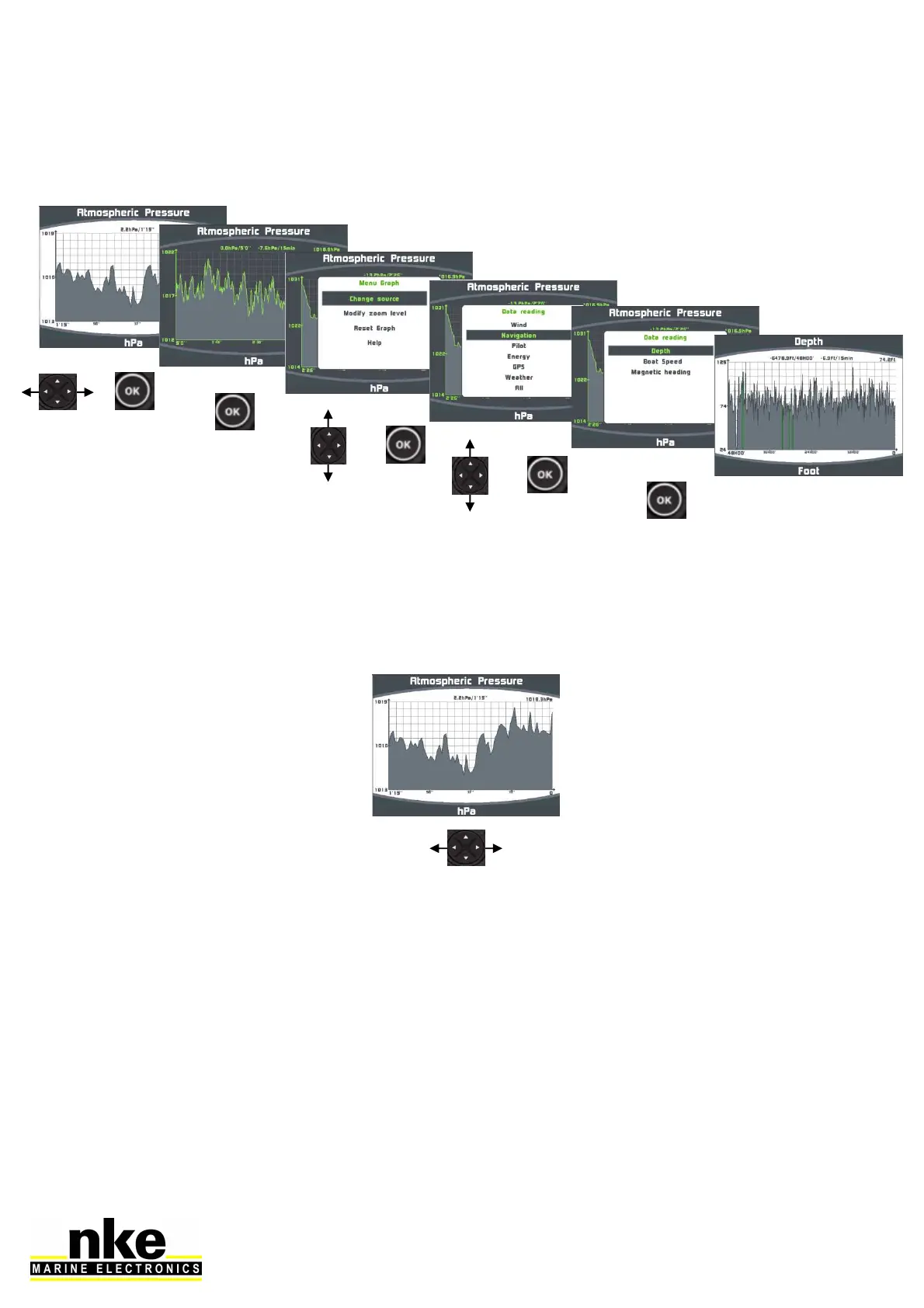

2.12.3 Displaying other data
From a graph page it is possible to display other data. This does not affect the page
construction. It is a temporary display which will not be saved.
2.12.4 Navigating in the graph
Use the left and right arrows to display specific sections of the graph through logged
data once you have set the graph’s scale (§ 2.11.1).
Green marks show no data in log (ie the unit was powered off).
Red marks show that the Topline bus was not in working order.
