3.5 Connection to the Topline bus and NMEA
1. Run the bus cable from the Gyropilot Graphic to the TOPLINE junction of your
system.
2. Connect the cable in the junction box.
Should you want to cut the bus cable to length, uncover and tin the wires before
connecting them.
Cable colour code
White cable /
5
wires
functions
white
+12V
TOPLINE bus
black
Data Topline
braid
commun
red
Not connected
yellow
NMEA +
NMEA input
green
NMEA –
BLANC
GND NOIR
BLANC
GND NOIR
1
2
V
G
N
D
NMEA-
NMEA+
NMEA-
NMEA+
init
main supply 12Vdc
connecting box
90-60-417
-
GND
DATA black
12VDC white

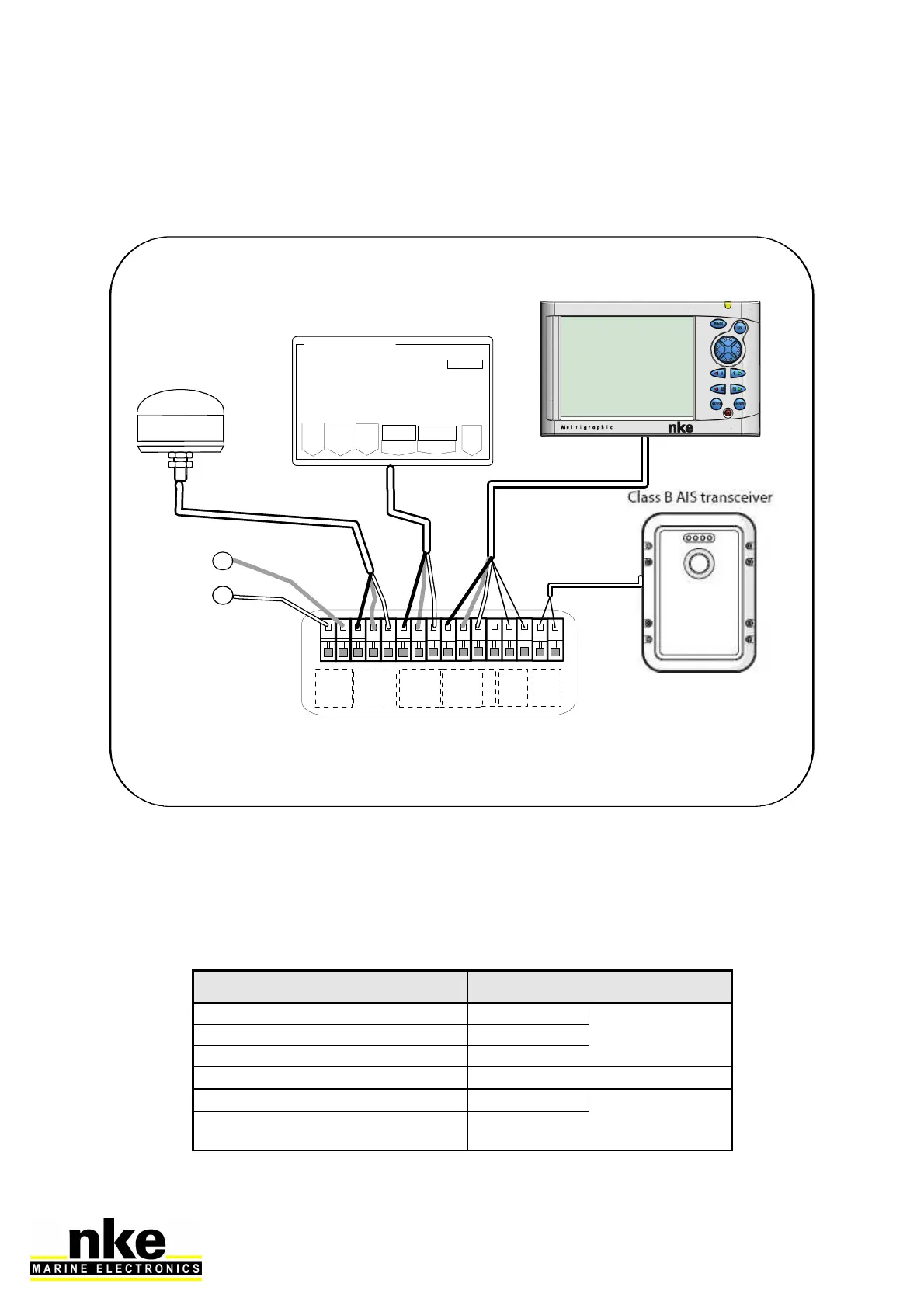

Connecting to bus TOPLINE
+
BLANC
GND
NOIR
nke Gyrop i lot 2
CRP
RVP
RVP
Calculateur Gyro2
Bus
Angle
Barre
Tiller
Embrayage
Alim.
Pompe
réversible
