Operation in Rudder mode
The rudder mode allows the rudder to be set at a fixed angle. The value can be
between – 35° and + 35° to the mid-ship position.
This mode can be used to check the drive unit or just to lock the rudder in a given
position.

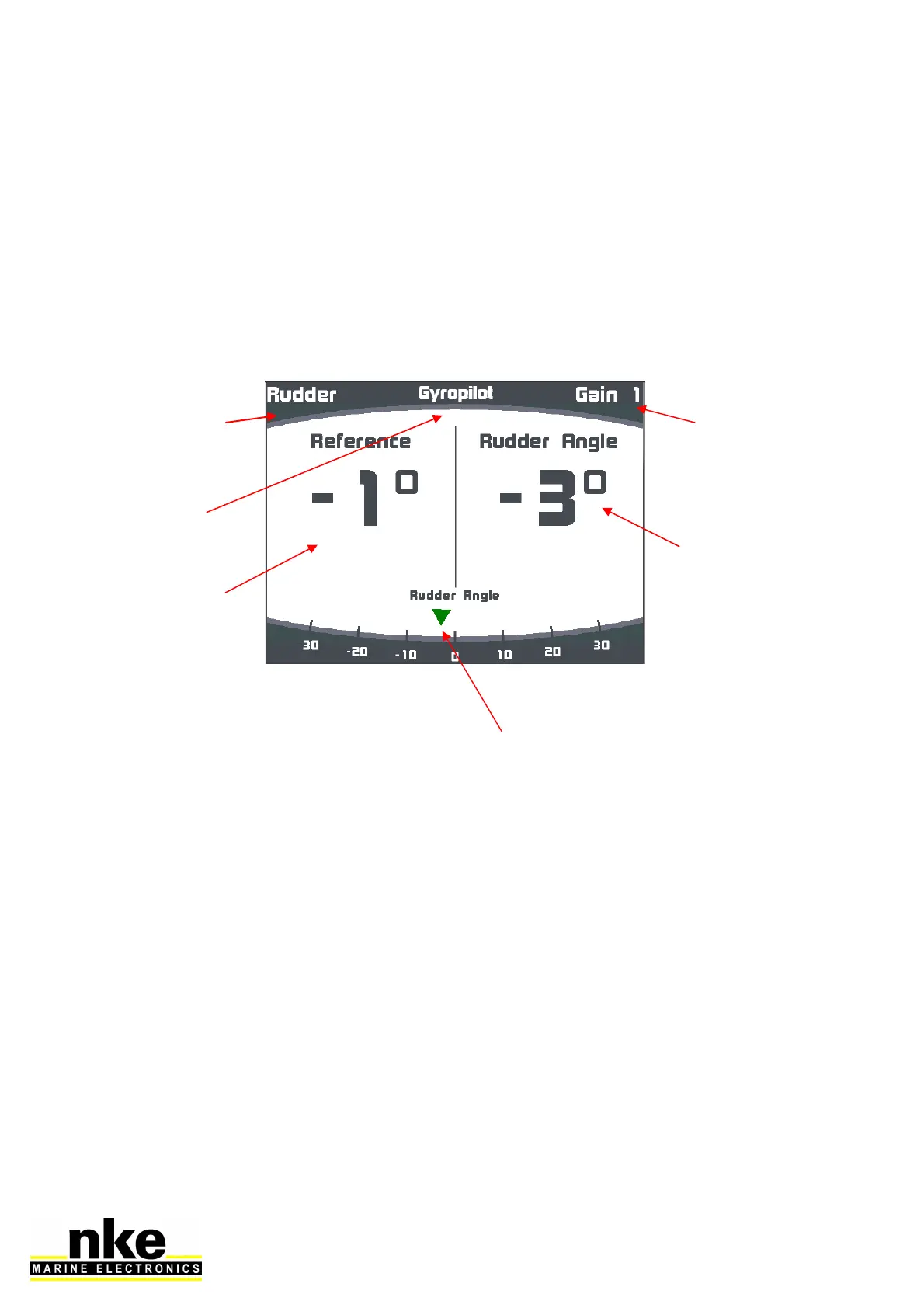

The following graphic shows the pilot page as it will be displayed on the
Multigraphic when the Gyropilot is engaged in Rudder mode
Rudder angle
Gain Mode
Pilot type
Rudder angle lock
Rudder angle
To Next Page
