Nokia 5510 Owner's Guide

Getting started
Copyright © 2004 Nokia. All rights reserved 13
opposite end of the battery
until it snaps into place.

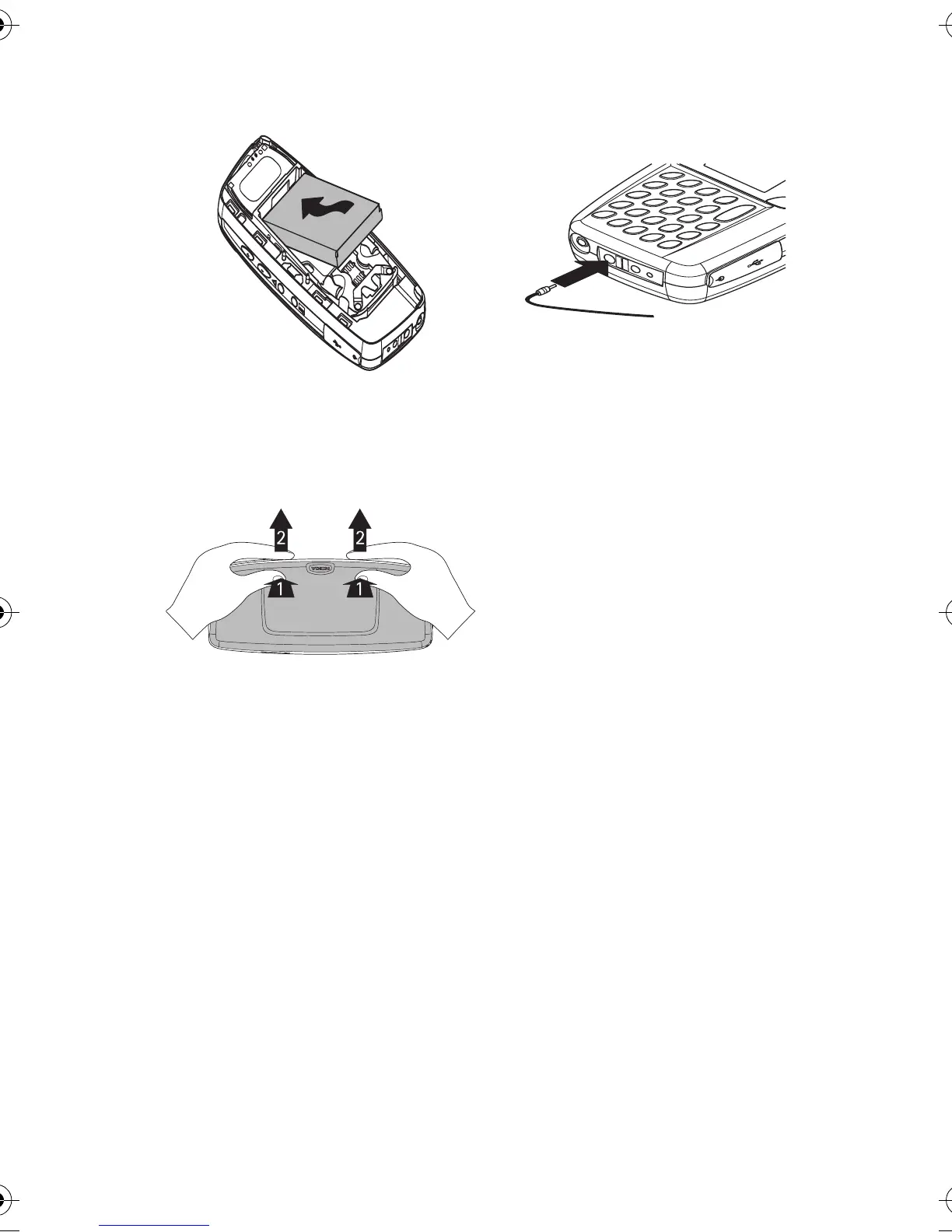

5. Insert the catches of the back
cover in the corresponding
slots in the phone and slide the
cover until it locks into place.
■ Charging the battery
• Do not charge the battery
when the cover of the phone is
removed. See also Battery
statements on page 56.
• When the battery level is low
and only a few minutes of
operating time remain, a
warning tone will sound. If you
do not connect the phone to a
charger when the battery level
becomes too low for operation,
the phone switches itself off.
1. Connect the charger cable to
the socket on the left side of
the phone.
2. Connect the charger to an AC
wall outlet. The battery
indicator bar starts scrolling.
• Charging the battery
supplied with the phone
may take up to 3 hours 45
minutes when using the
ACP-7 charger.
•If Not charging is displayed,
wait for a while, disconnect
the charger, plug it in again,
and retry. If charging still
fails, contact your dealer.
3. When the battery is fully
charged, the bar stops
scrolling. Disconnect the
charger from the AC outlet and
the phone.
Note that you can use the phone
during charging.
Maverik_apac.fm Page 13 Thursday, October 7, 2004 2:03 PM

Nokia 5510 Specifications

General

Display	Monochrome graphic
Weight	155 g
Keyboard	QWERTY
Network Technology	GSM
2G bands	GSM 900 / 1800
GPRS	No
EDGE	No
Announced	2001
Status	Discontinued
SIM	Mini-SIM
Phonebook	Yes
Call records	10 dialed, 10 received, 10 missed calls
Loudspeaker	Yes
Alert types	Vibration; Downloadable monophonic ringtones
3.5mm jack	No
Games	Yes
Messaging	SMS
Clock	Yes
Alarm	Yes
Infrared port	Yes
Music player	Yes
Radio	Stereo FM radio
Java	No
Dimensions	134 x 58 x 28 mm
Stand-by	55 h - 260 h
Talk time	Up to 4 h 30 min
Colors	Blue
Battery	Removable Li-Ion 950 mAh battery (BLC-2)
