Installing the Chassis
36
7210 SAS-M CHASSIS INSTALLATION GUIDE
3HE 10089 AAAA TQZZA Edition 01 Issue: 07
Step 2. Mount the 7210 SAS-M in the rack using four rack-mounting screws, as
shown in Figure 11.

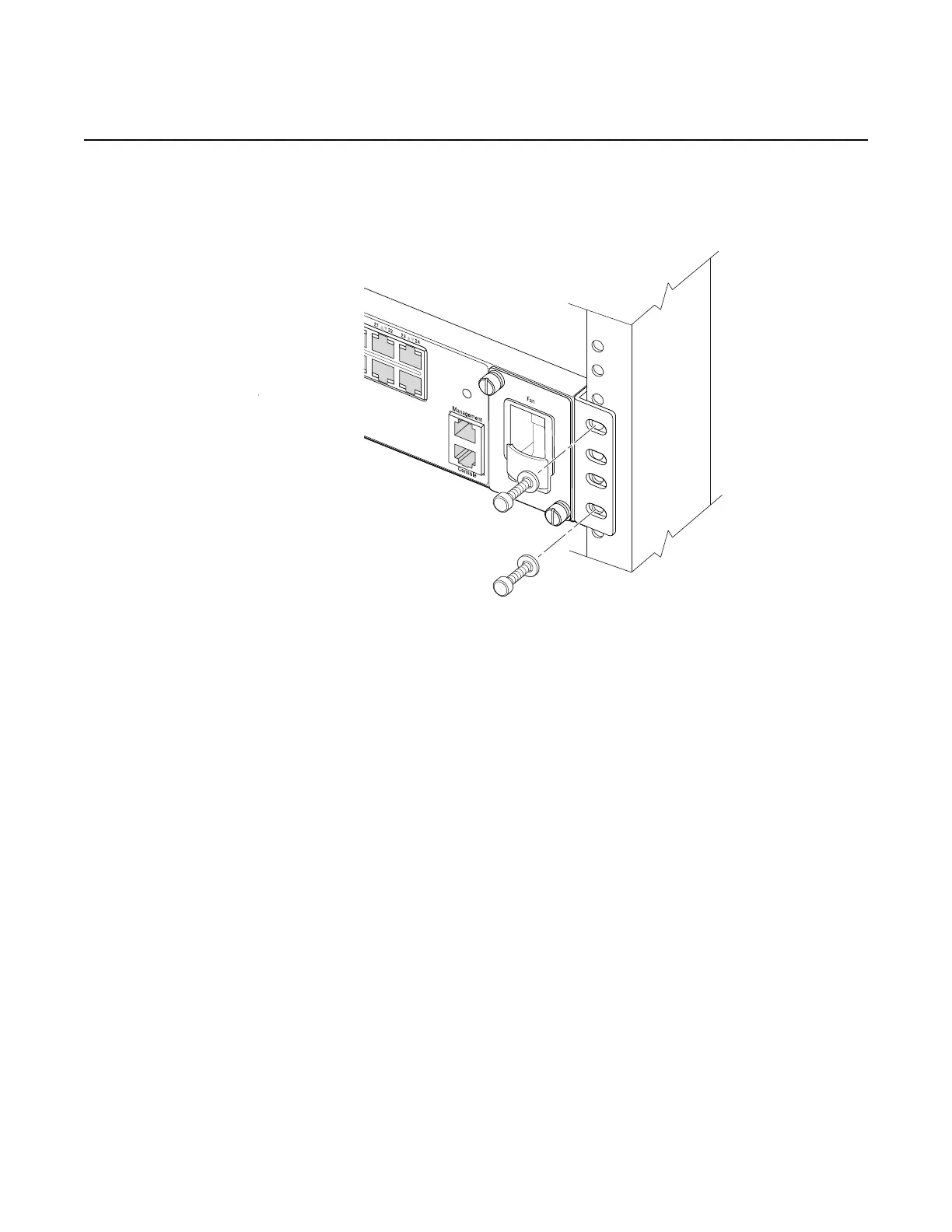

Figure 11 Installing the Switch in a Rack
Step 3. If you are installing a single switch, proceed to Grounding the Chassis on
page 38.
Step 4. If installing multiple switches, mount them in the rack, one below the other,
in any order.
