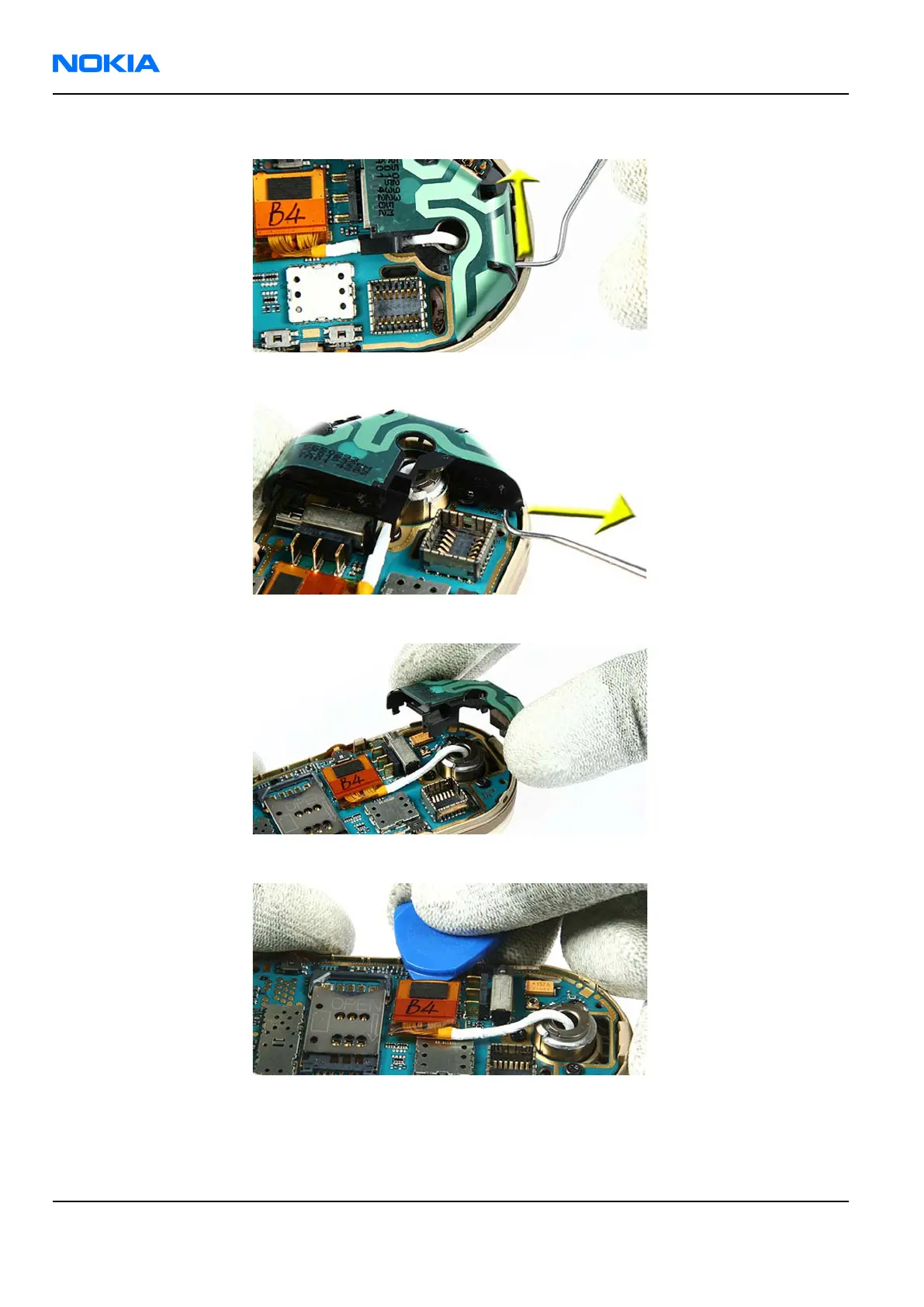

15. Do the same as before (the pike is in this case not visible) and pull in the opposite direction.
16. Now unlock the last snap.
17. Remove the ANTENNA MODULE.
18. Carefully unlock the coax connector with SRT-6.
19. Unsrew the three SWIVEL screws Torx Plus® size 6 in the following order.
Note: For assembly use the reverse order and apply a torque of 25 Ncm +/- 2 Ncm. Always use
new screws!
RM-70
Nokia Customer Care Disassembly and reassembly instructions
Page 5 –14 COMPANY CONFIDENTIAL Issue 1
Copyright © 2005 Nokia. All rights reserved.
