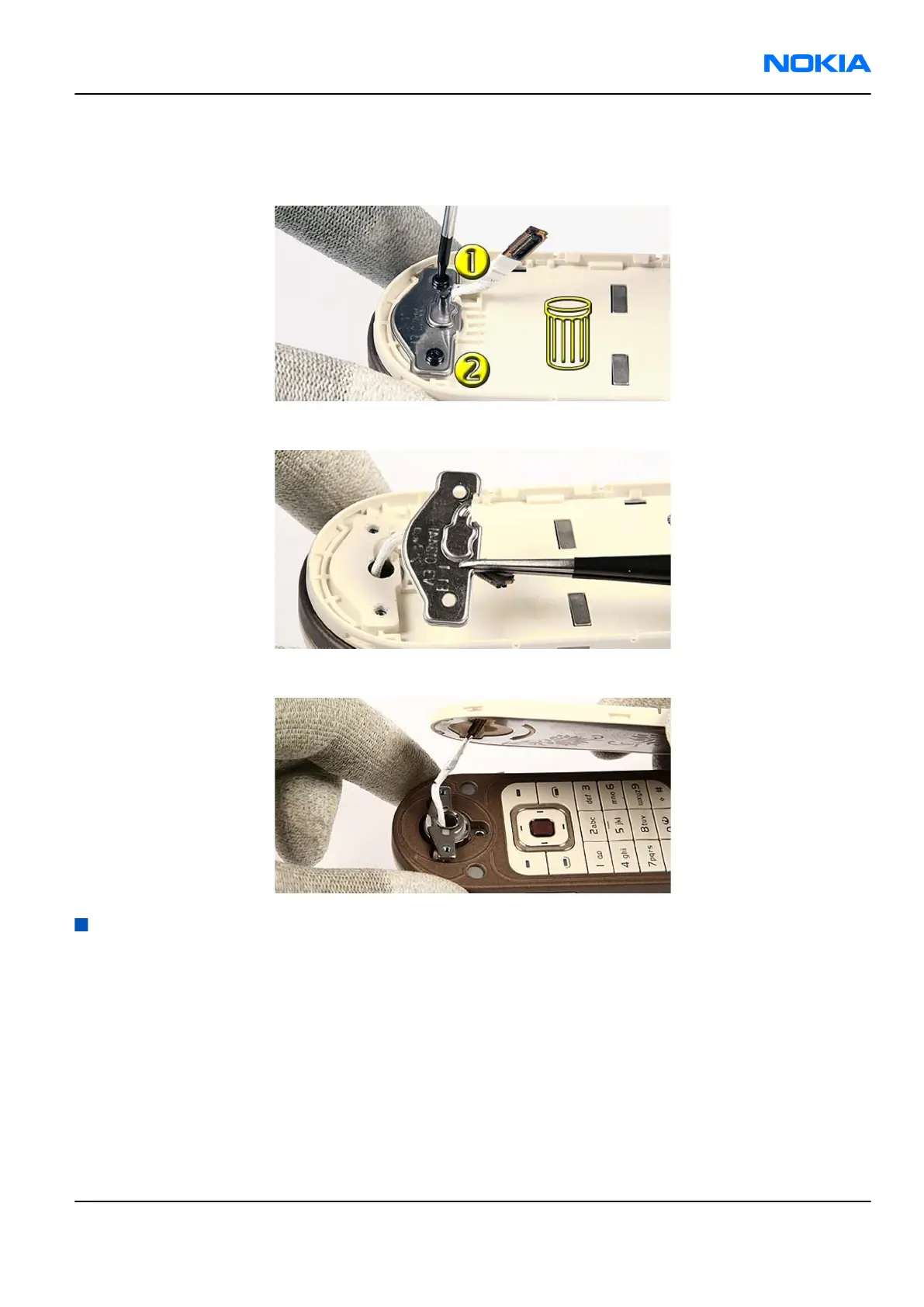

16. Open the two Torx Plus® size 6 screws in the following order.
Note: For assembly use the reverse order and apply a torque of 25 Ncm +/- 2Ncm. Always use
new screws!
17. Remove the SCREWING PLATE.
18. Separate the UPPER BLOCK from the LOWER BLOCK.
Reassembly instructions (upper block)
Steps
1. Follow the disassembly instructions
in reversed order
, from step 18 to step 17.
RM-70
Disassembly and reassembly instructions Nokia Customer Care
Issue 1 COMPANY CONFIDENTIAL Page 5 –9
Copyright © 2005 Nokia. All rights reserved.
