Modes of operation
The functional behavior can be divided into seven different states. Since the UEMEK controls the regulated
power distribution of the phone, each of these states will affect the general functionality of the phone:
• No supply
• Backup
• Power off
• Reset
• Power on
• Deep sleep
Battery and charging
Battery
Note: For technical data, see Battery endurance (page ).
This device uses the BL-4B battery, a 700 mAh minimum Li-ion battery. It has a three contacts interface and
it is based on a blade type connector.

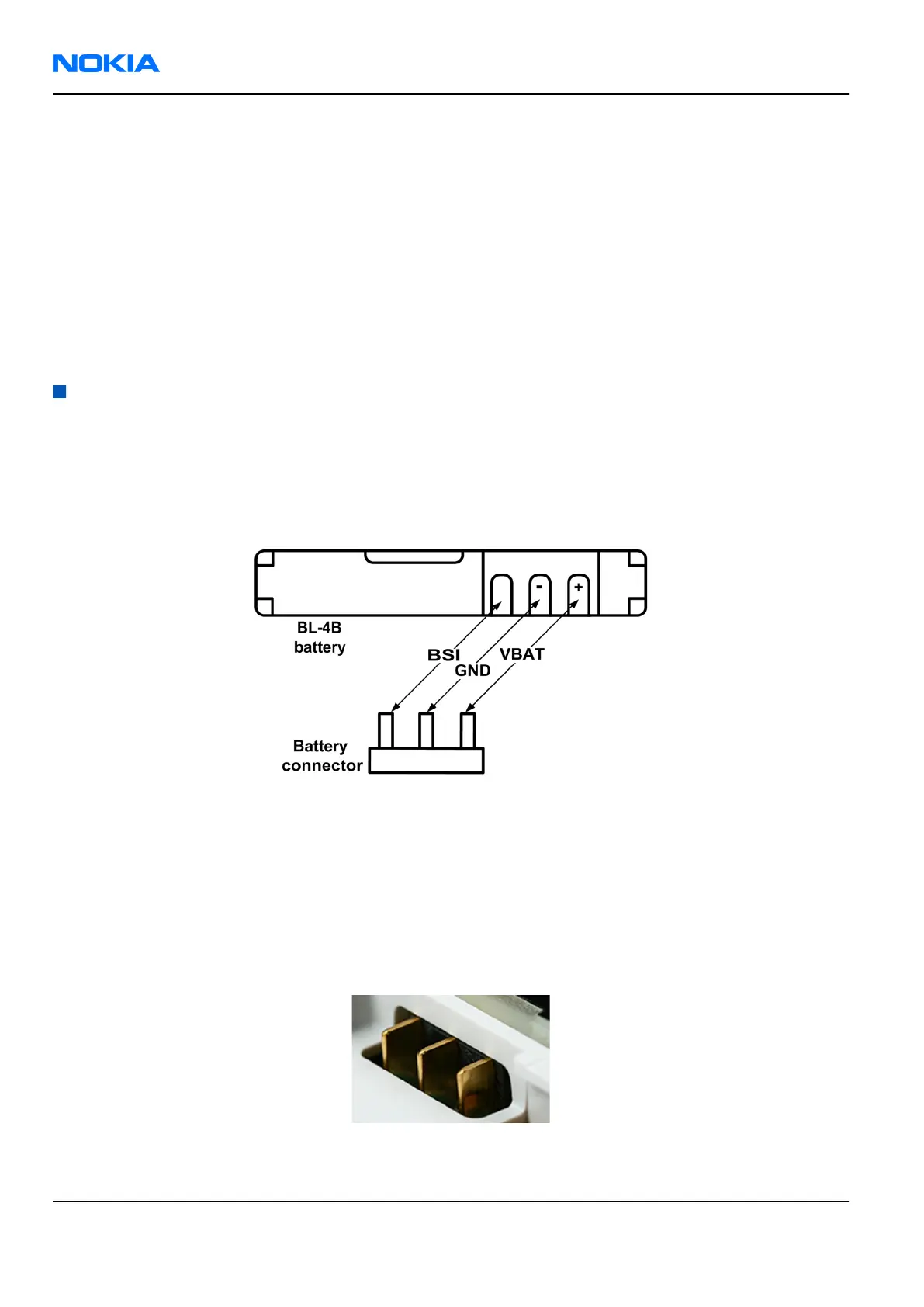

Figure 50 BL-4B battery and battery connector
Battery connector
The battery connector is a blade connector. It has three blades;
• BSI (Battery size indicator)
• GND (Ground)
• VBAT (Battery voltage)
The BSI line is used to recognize the battery capacity by a battery internal pull down resistor.
Figure 51 Blade battery connector
RM-70
Nokia Customer Care System module
Page 8 –10 COMPANY CONFIDENTIAL Issue 1
Copyright © 2005 Nokia. All rights reserved.
