• Select band “GSM900” or “GSM1800” or “GSM1900” (Default = “GSM900”).
• Set Active unit to “Tx” (Default = “Rx”).
• Set Operation mode to “Burst” (Default).
• Set Tx data type to “All1” (Default).
• Set Rx/Tx channel (see table below)
• Set Edge to “Off” (Default).
• Set Tx PA mode to “High” (Default).
• Set power level (see table below)
Band Channel (RX and TX) TX power level
GSM900 37 5
GSM1800 700 0
GSM1900 661 0

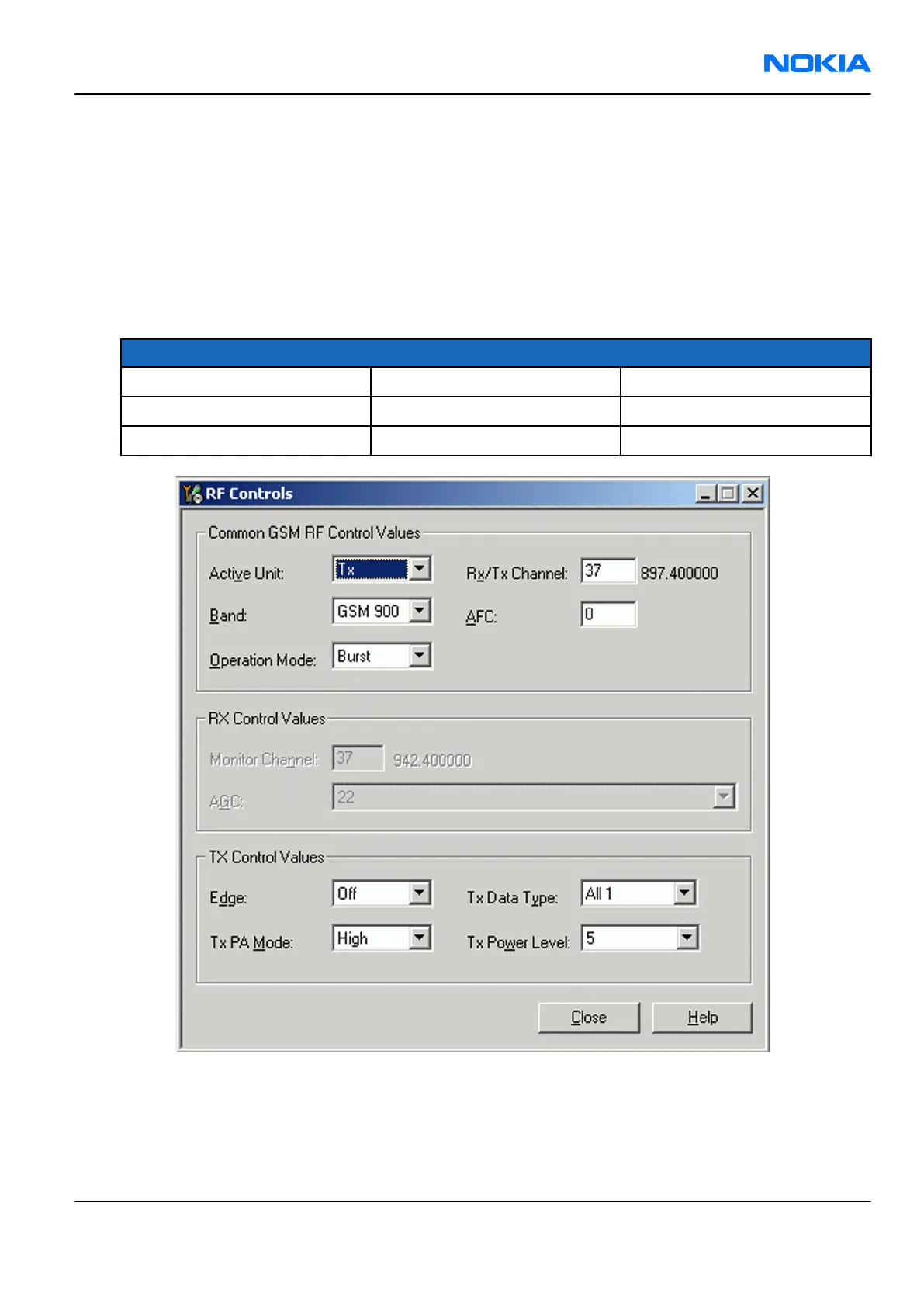

Figure 42 RF Controls window
General instructions for TX troubleshooting
Context
• Tx troubleshooting requires Tx operation.
RM-70
RF Troubleshooting and Manual Tuning Guide Nokia Customer Care
Issue 1 COMPANY CONFIDENTIAL Page 7 –11
