9. To perform tuning, click OK.

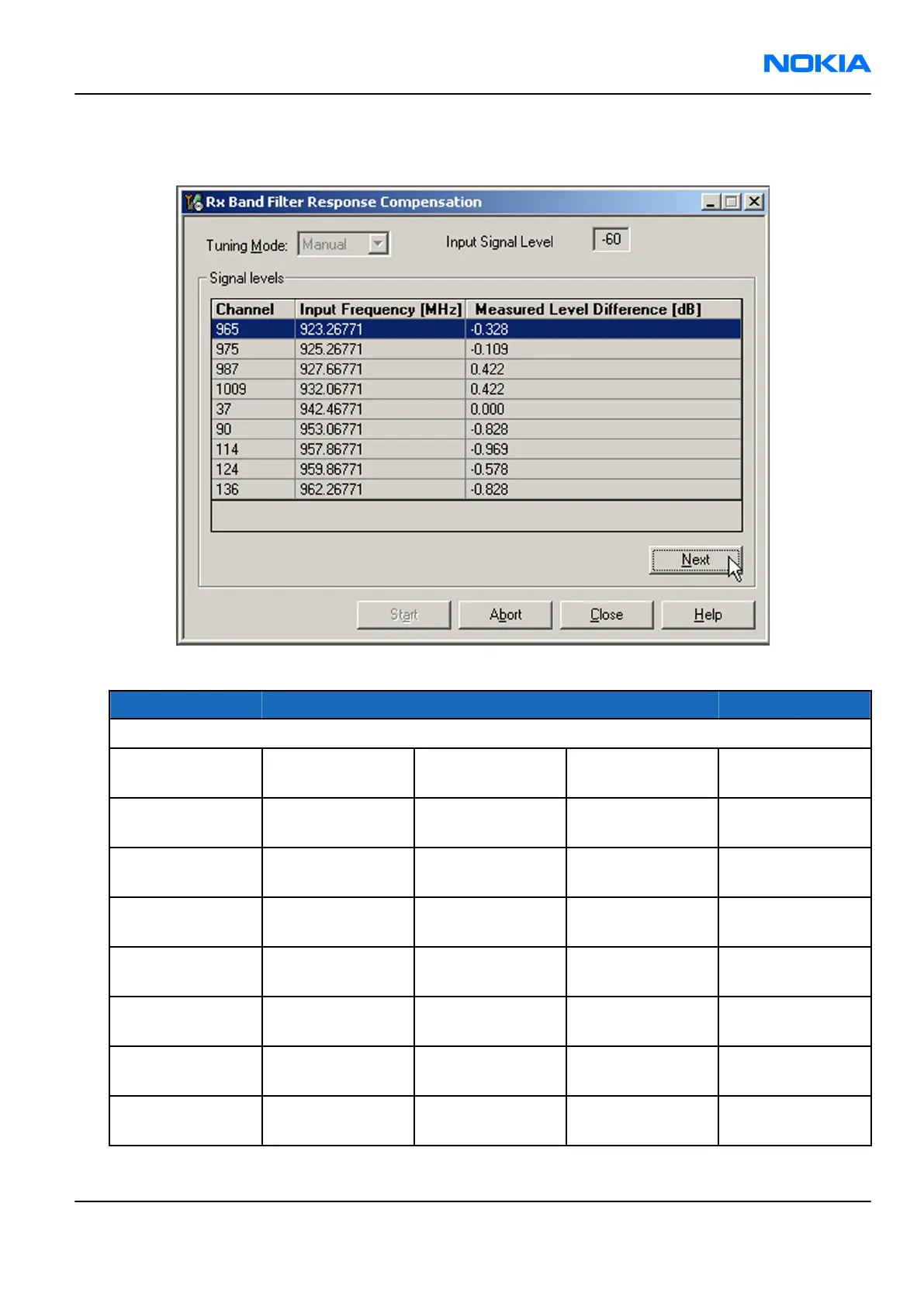

10. Go through all 9 frequencies. The following table will be shown:
11. Check that the tuning values are within the limits specified in the following table:
Min Typ Max Unit
GSM900
Ch. 965 /
923.26771 MHz
-6 -1 2 dB
Ch. 975 /
925.26771 MHz
-3 0 2 dB
Ch. 987 /
927.66771 MHz
-3 0 2 dB
Ch. 1009 /
932.06771 MHz
-2 0 2 dB
Ch. 37 /
942.46771 MHz
-2 0 2 dB
Ch. 90 /
953.06771 MHz
-2 0 2 dB
Ch. 114 /
957.86771 MHz
-3 0 2 dB
Ch. 124 /
959.86771 MHz
-3 0 2 dB
