Reference level offset sum cable attenuation with module jig
attenuation
Reference level 33dBm
A power meter with a peak power detector can be also used. Remember to take the attenuations into
account.
7. Adjust power for all bold power levels to correspond the Target dBm column by pressing + or – keys.
8. If all bold power levels are adjusted, click Next to continue with GSM900 EDGE.
9. Adjust power for all bold power levels to correspond the Target dBm column by pressing + or – keys.
Next action

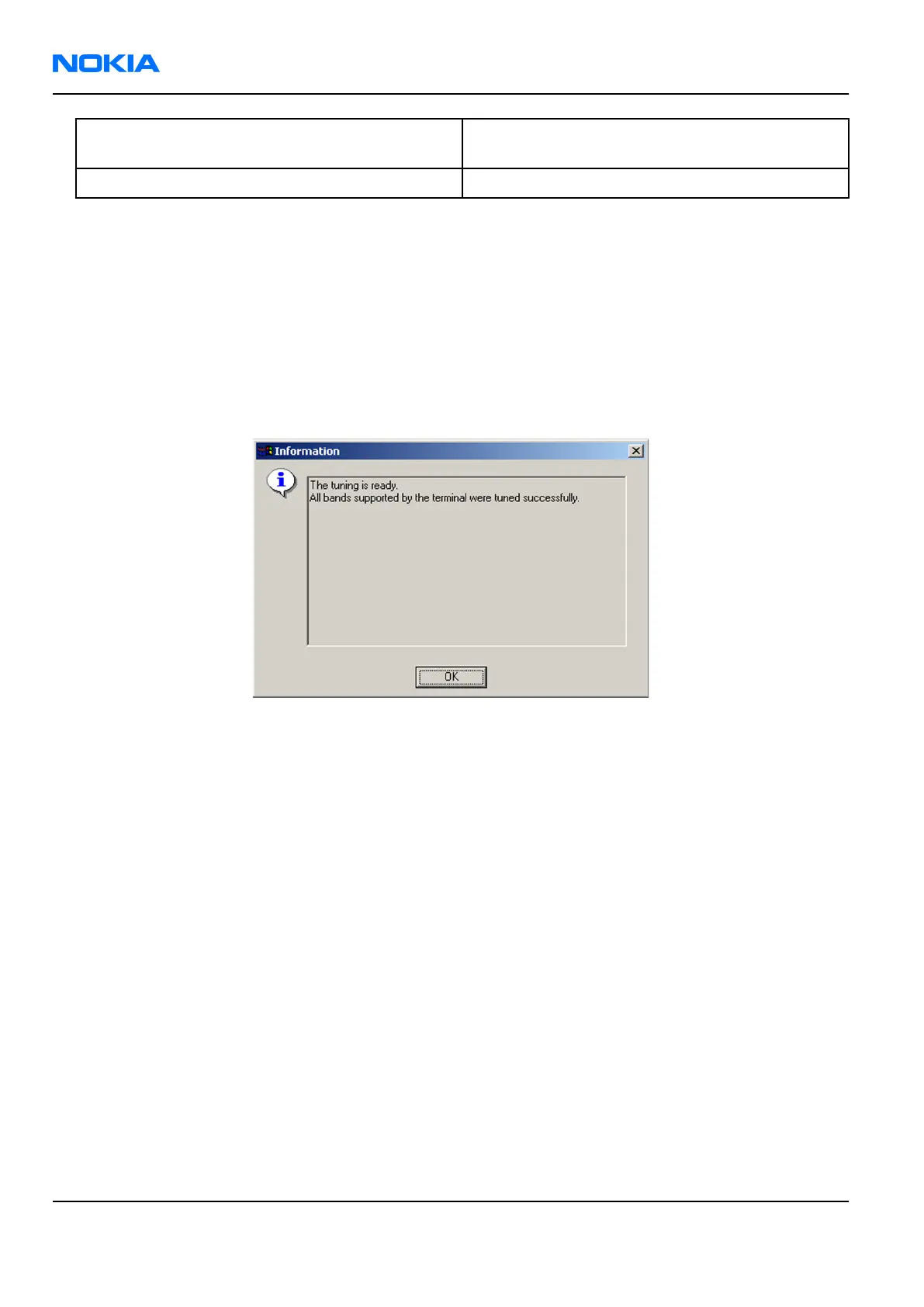

Continue tuning the bold power levels of the GSM1800 and GSM1900 bands. You will see this message, if
finished successfully:
RM-70
Nokia Customer Care RF Troubleshooting and Manual Tuning Guide
Page 7 –28 COMPANY CONFIDENTIAL Issue 1
Copyright © 2005 Nokia. All rights reserved.
