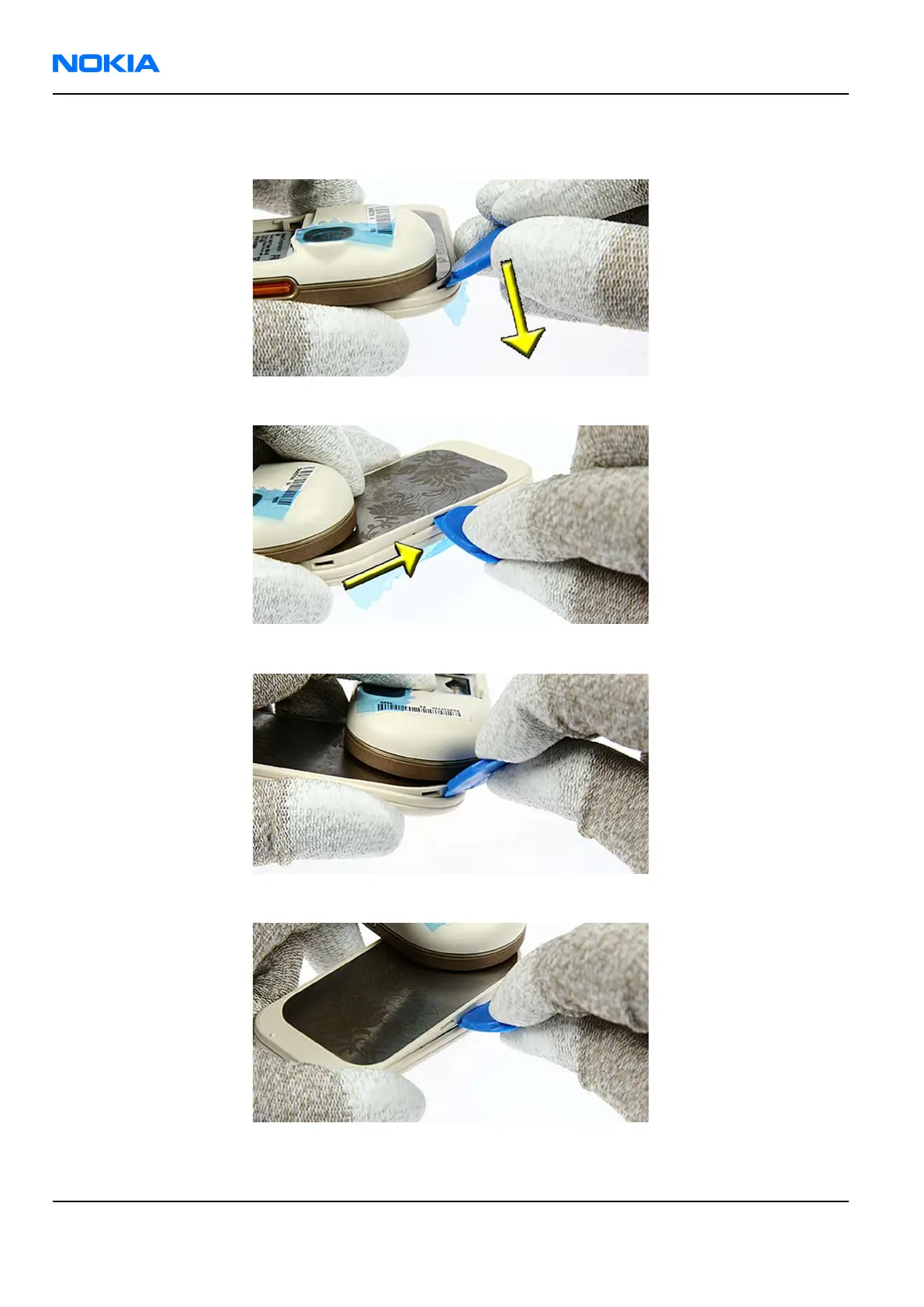

4. Turn the UPPER BLOCK to 90° from the LOWER BLOCK. Start opening the A-COVER ASSY at the round
side with the SRT-6.
5. Slide the SRT-6 around the covers and keep the gap open. Unlock the retaining clips separately.
6. Go ahead near the SWIVEL area.
7. This is the last clip to be unlocked.
