Leaf User Manual
P/N: 97-4000, Revision 08, Release date: 2020-11-10 Page 13 of 85
1. Swing the slit lamp illumination tower to the left side ~45 degrees from the center.

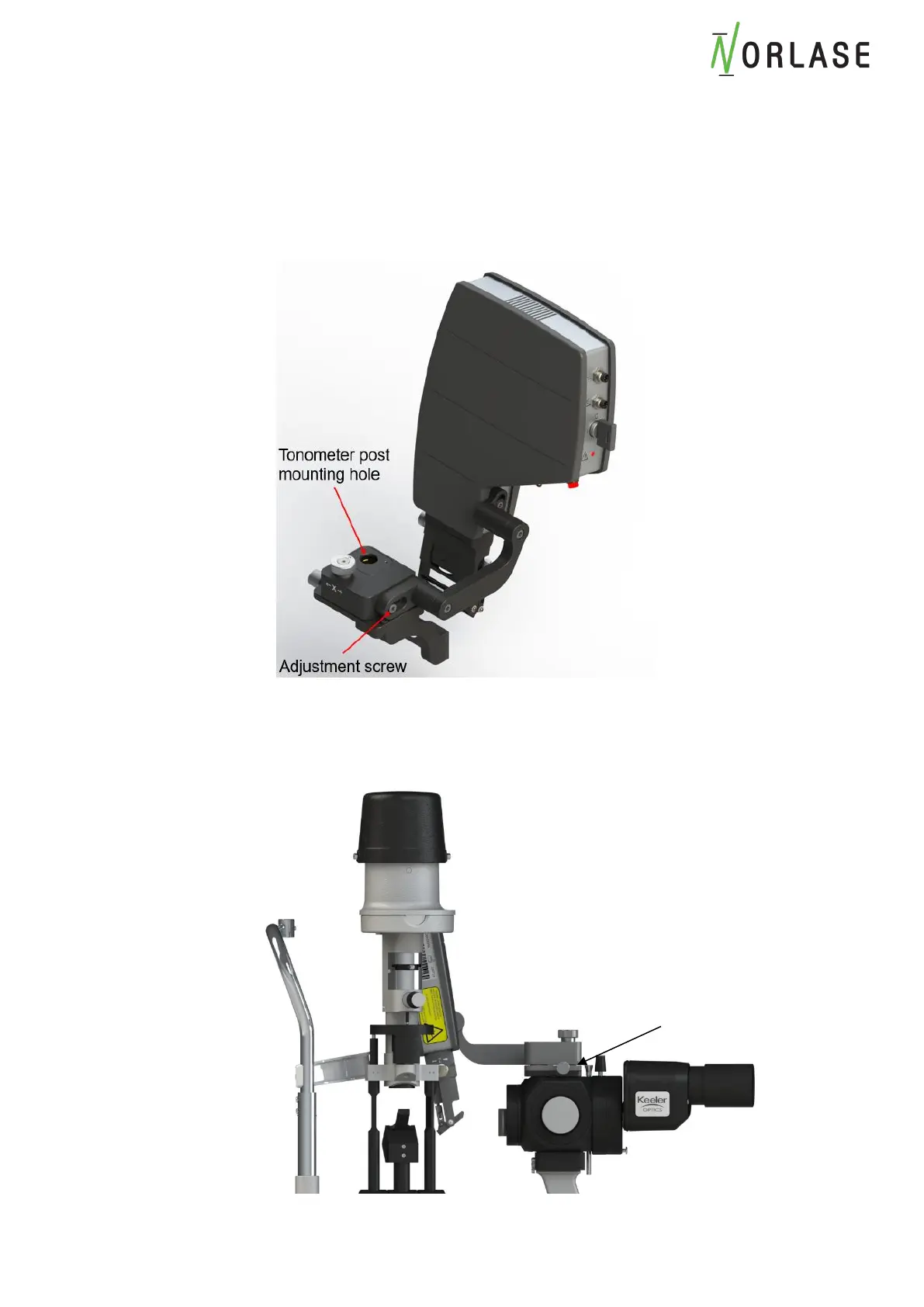

2. Carefully place the Laser on the tonometer mount post using the mounting hole in the
adapter plate. If the illumination tower does not clear the laser unit, loosen the adjustment
screw and reposition the laser unit. Then tighten the adjustment screw.
3. Make sure the plate is completely seated onto the tonometer mount and tighten locking screw.
4. Swing the illumination tower back in behind the laser.
