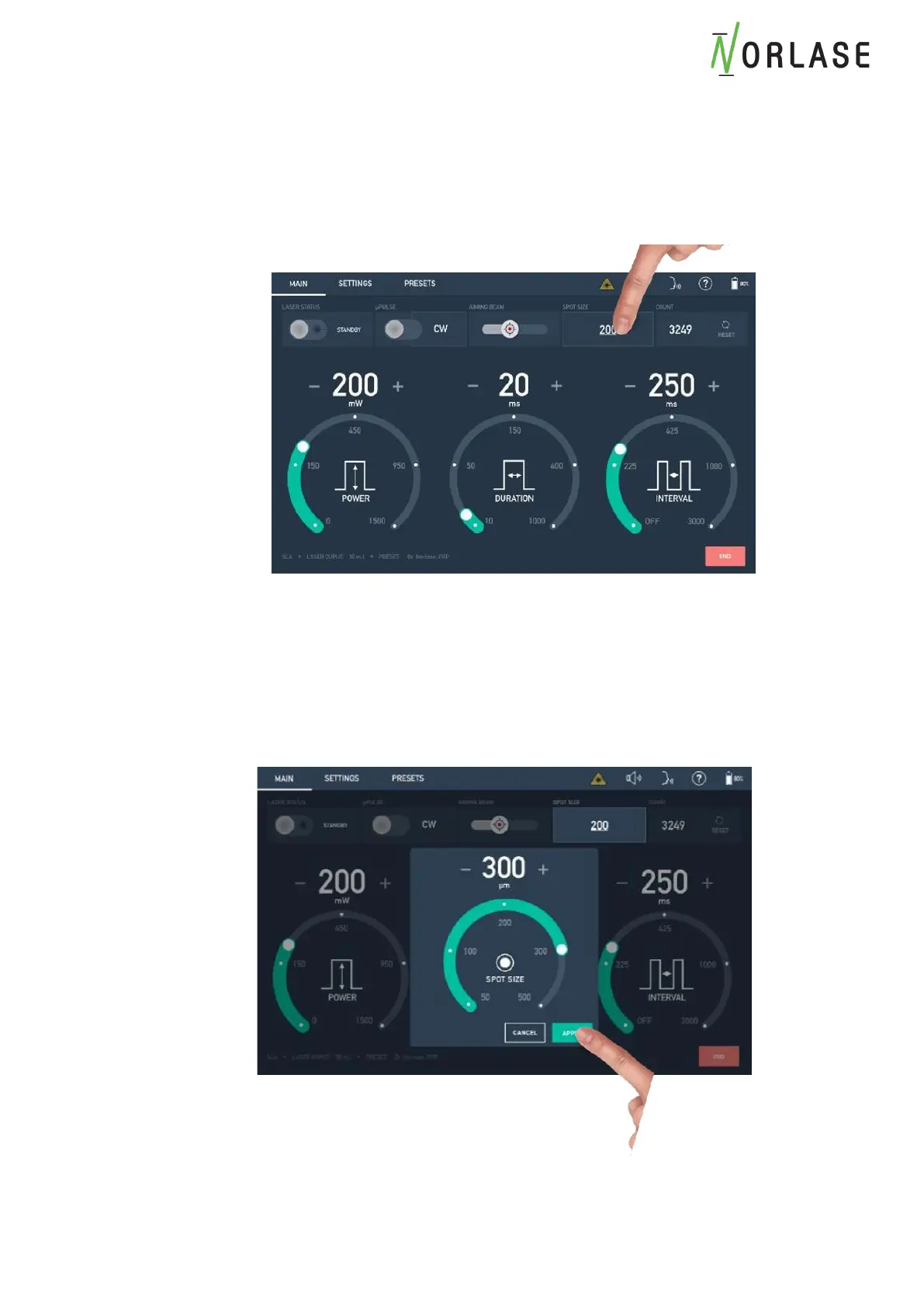

Changing the Spot Size Diameter
The Norlase Leaf is equipped with an electronic spot size adjustment selected from the User
Interface. To change the delivered spot size:
1. Select the User Interface toggle to enable the Spot Size popup
2. To change spot size, lightly press your finger along the active area of the arc and slide
until the desired setting is reached. The parameter selected will change colors to indicate
the region is being adjusted. Alternate methods of adjustment include touching and
holding a region along the arc for 2 seconds and the value will immediately jump to the
touch point setting on the scale. A setting may also be incremented to the next higher or
lower value by touching the “+” or “-“ next to each parameter.
3. Select “Apply” to change the Spot Size to the new value.
If the spot diameter is reduced after a power level has been selected, the following warning will
be displayed:
