Nortel 1000E - Connecting a Signaling Server to the TLAN Subnet; Procedure 17

Page 112 of 488 Connecting CS 1000E system components
553-3041-210 Standard 4.00 September 2007

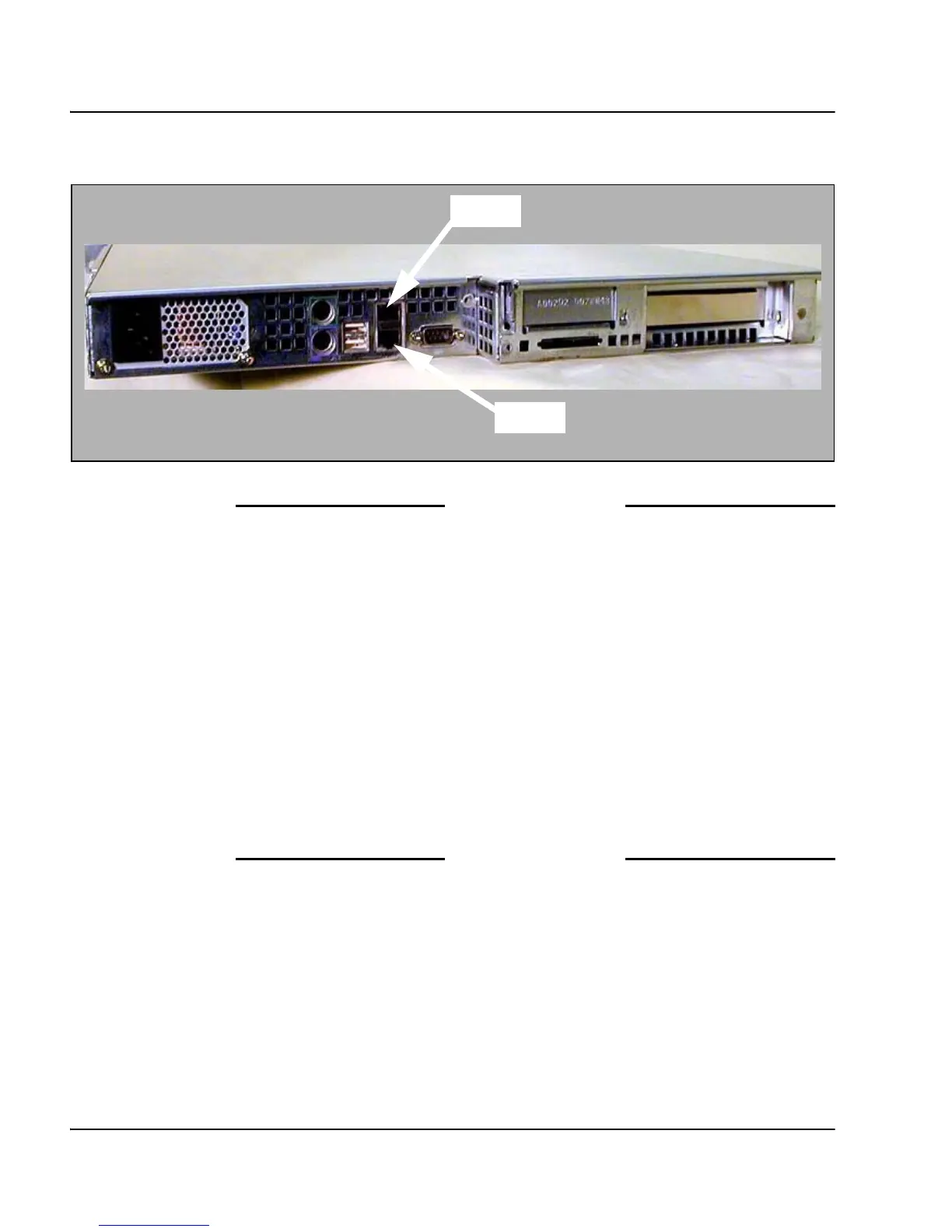

Figure 33
Signaling Server ELAN subnet and TLAN subnet connectors
End of Procedure
Connecting a Signaling Server to the TLAN subnet
Follow Procedure 17 to connect a Signaling Server to the TLAN.
Procedure 17
Connecting a Signaling Server to the TLAN subnet
1 Connect a standard CAT5 cable to the TLAN network interface (top)
RJ-45 jack at the back of the Signaling Server, as shown in Figure 33 on
page 112.
2 Connect the other end of the standard CAT5 cable to an RJ-45 TLAN
network interface on the data network switch (BayStack 470-24T).
End of Procedure
TLAN
ELAN
