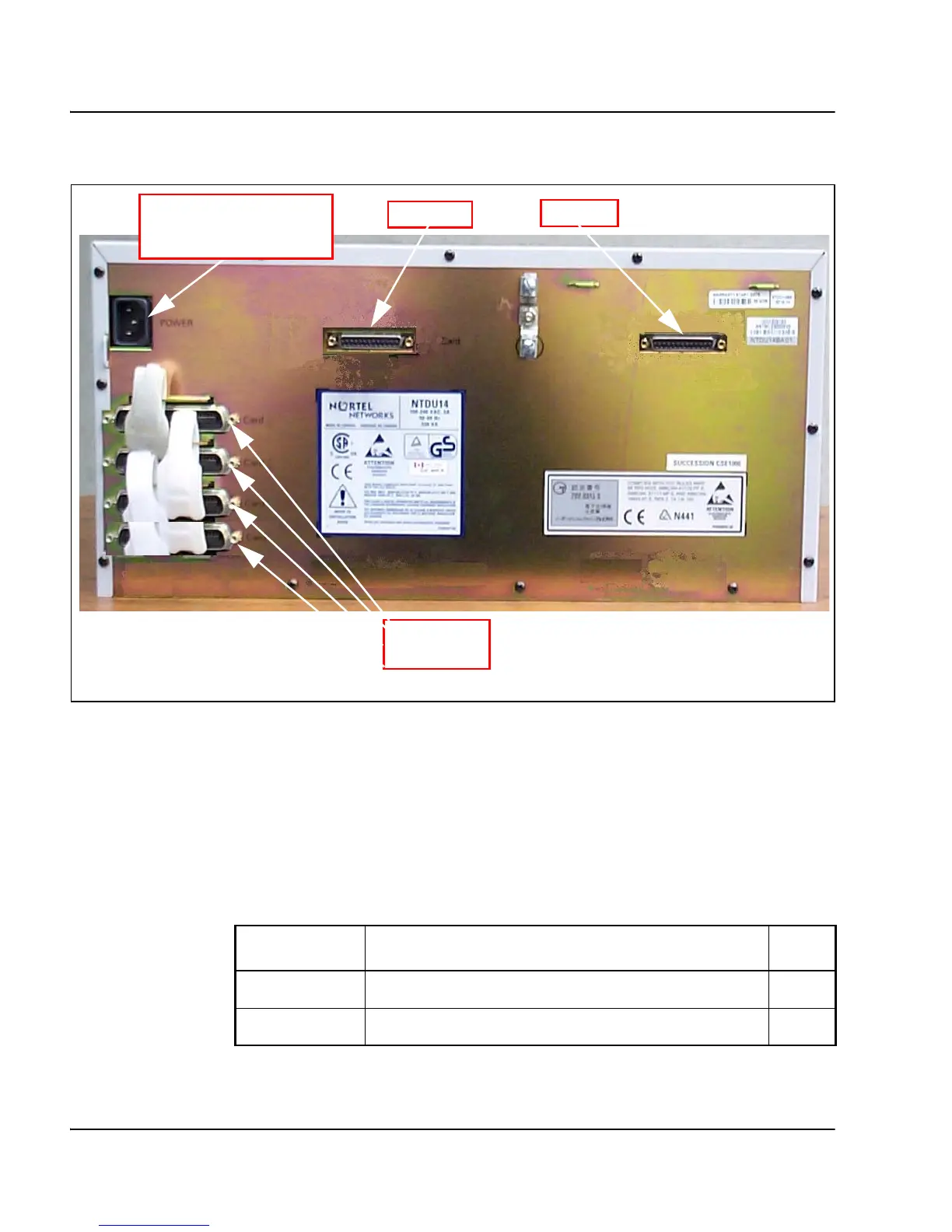

Figure 10
Connectors at the back of the Media Gateway Expander
19-inch Rack Mount Kit
A 19-inch Rack Mount Kit (NTTK09AA) is available for mounting a Media
Gateway and Media Gateway Expander in a 19-inch rack. It is described in
Table 6 on page 60
Table 6
NTTK09AA installation
Order Code Description Qty
P0904844 Left Rack Mount Bracket 1
P0904845 Right Rack Mount Bracket 1
DS-30X
CE-MUX
25-pair
connectors
C
a
r
d
9
C
ar
d
8
C
a
r
d
7
C
a
r
d
1
0
Universal AC power
cord connector
