Nortel 1000E - Connecting a Media Card to the TLAN Subnet; Procedure 20

Connecting CS 1000E system components Page 115 of 488
Communication Server 1000E Installation and Configuration

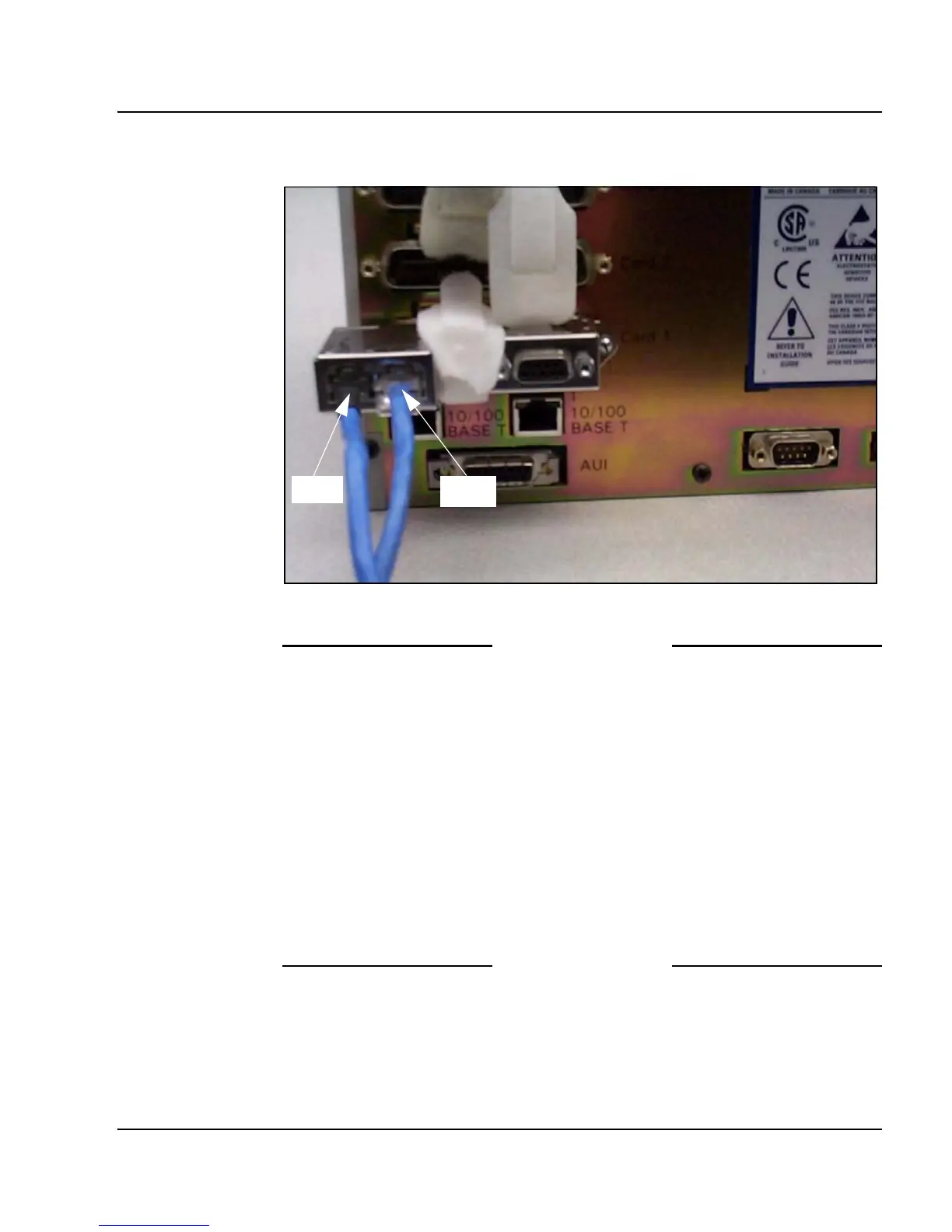

Figure 35
Shielded 50-pin to Serial/ELAN/TLAN adapter on the Media Gateway
End of Procedure
Connecting a Media Card to the TLAN subnet
Follow Procedure 20 to connect a Media Card to the TLAN subnet.
Procedure 20
Connecting a Media Card to the TLAN subnet
1 Connect a standard CAT5 patch cable to the TLAN network interface on
the adaptor (see Figure 35 on page 115).
2 Connect the other end of the standard CAT5 patch cable to an RJ-45
TLAN network interface on the BayStack 470 switch.
End of Procedure
TLAN
ELAN
