Rack-mounting the components Page 83 of 488
Communication Server 1000E Installation and Configuration
Rack-mounting a Signaling Server
This procedure describes how to install the Signaling Server hardware into
the 19-inch rack. Refer to Signaling Server: Installation and Configuration
(553-3001-212) for additional information.
Note: Save the packaging container and packing materials in the event
you need to package the server for reshipment.
Procedure 4
Preparing a Signaling Server for rack-mounting
1 Ensure that the following parts are included with the Signaling Server:
a. 2 – chassis support brackets (A)
b. 2 – rack-mounting brackets (B)
c. 6 – rack-mount bracket screws (10-25 x 1/4” panhead Phillips)
Refer to Figure 19.

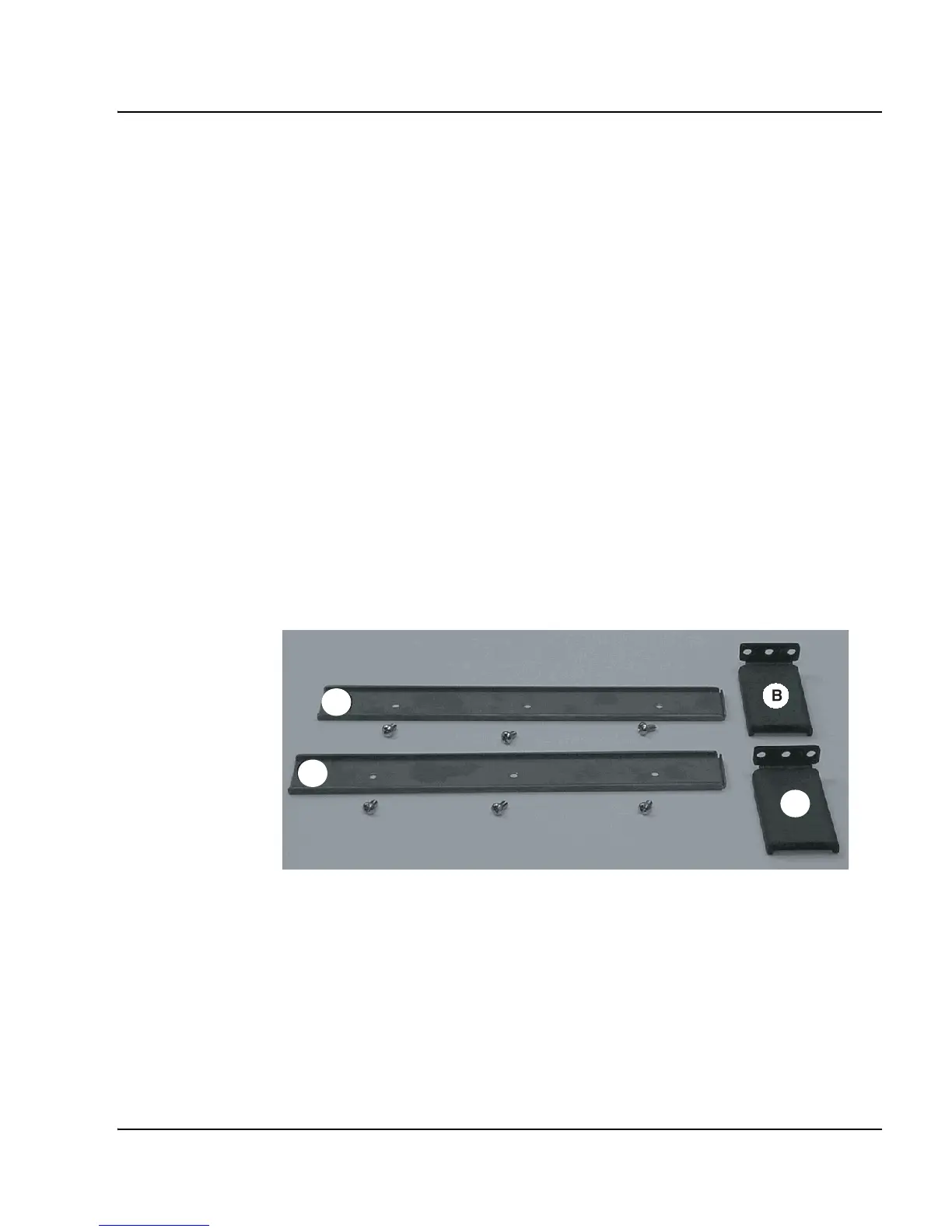

Figure 19
Signaling Server mounting accessories
A
A
B
