Connecting a Signaling Server to the ELAN subnet
Follow Procedure 36 to connect a Signaling Server to the ELAN subnet.
Procedure 36
Connecting a Signaling Server to the ELAN subnet
1 Connect one end of a standard CAT5 cable to the ELAN network interface
(bottom) on the back of the Signaling Server as shown in Figure 43.
2 Connect the other end of the standard CAT5 cable to an RJ-45 ELAN
network interface on the ELAN Layer 2 switch (BayStack 470-24T).

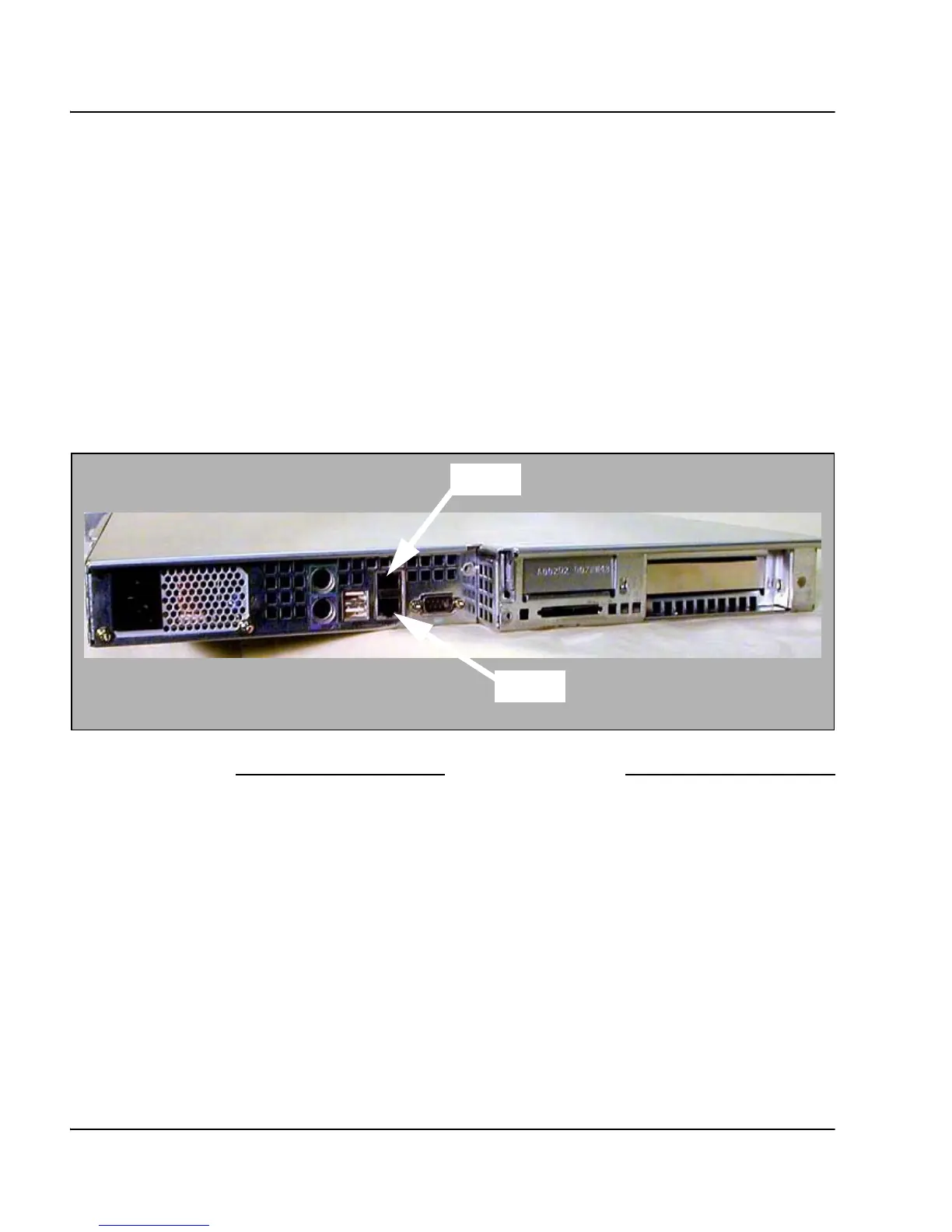

Figure 43
Signaling Server ELAN and TLAN network interfaces
End of Procedure
TLAN
ELAN
