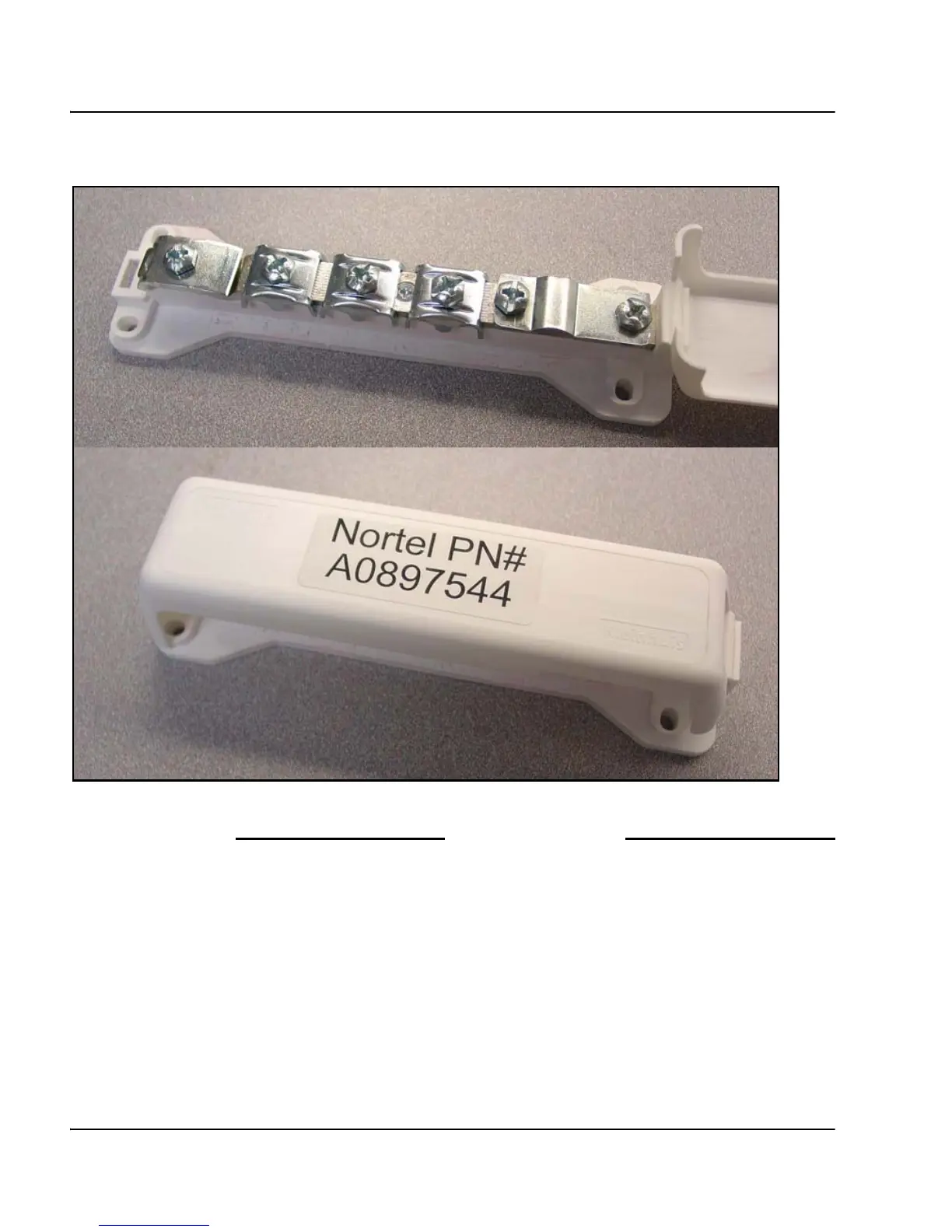

Figure 26
NTBK80 Ground Bar
End of Procedure
Follow Procedure 7 to install an NTDU6201 Ground Bar.
Procedure 7
Installing an NTDU6201 Ground Bar
1 Place the NTDU6201 Ground Bar near the equipment.
Note: The ground bar is a bridging point for ground wires from up to
48 components.
