Page 84 of 488 Rack-mounting the components
553-3041-210 Standard 4.00 September 2007
Note: The Front Mount Bracket assembly is not intended for use as a
slide rail system. The Signaling Server must be firmly attached to the rack.
2 Align the end of the rail with the flange (B) toward the rear of the Signaling
Server. See Figure 20 on page 84.

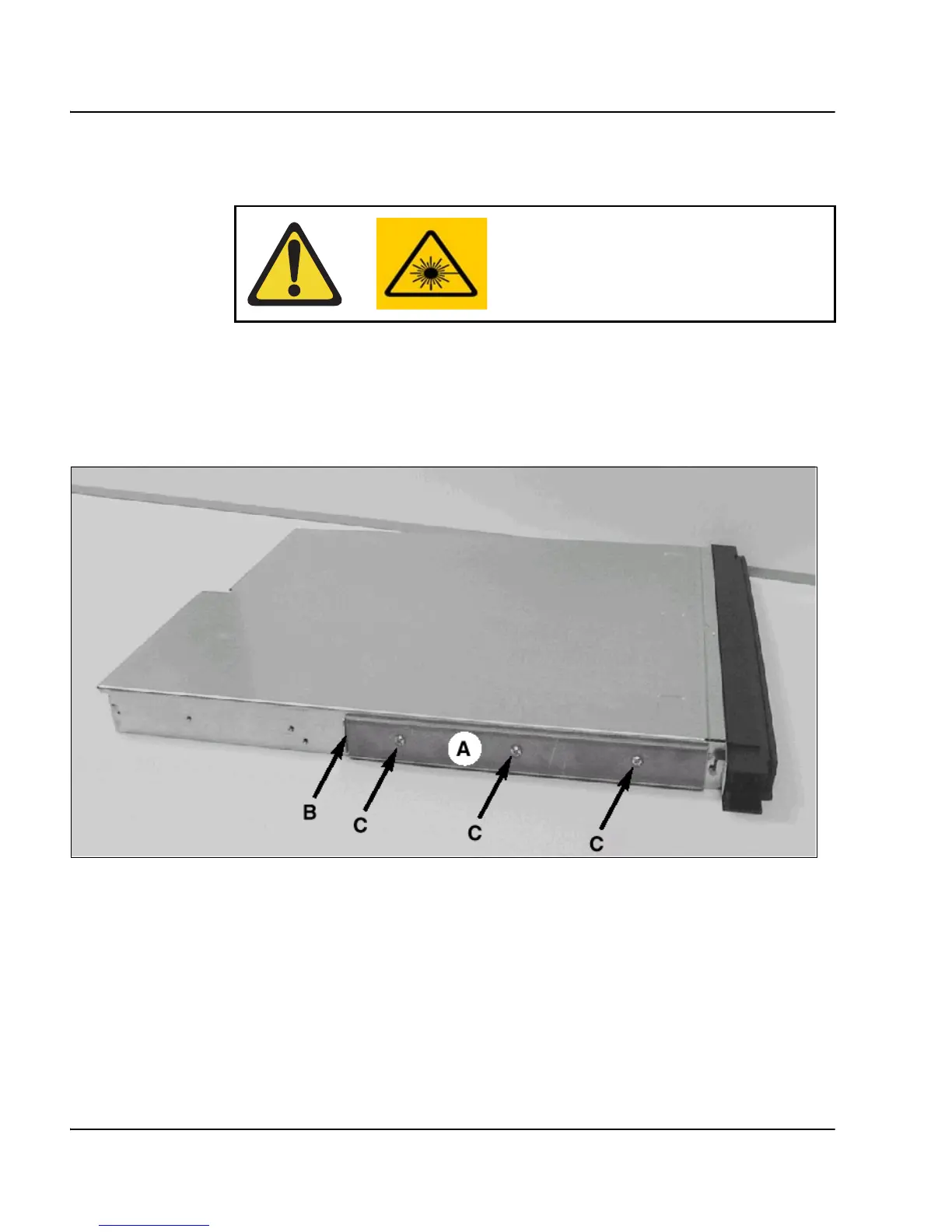

Figure 20
Chassis support bracket
3 Align the screw holes in the rack-mount rail to the mating holes in the side
of the Signaling Server chassis. Use three screws (C) on each side.
Note: Hand-tighten the screws to prevent cross-threading, then use a
Phillips screwdriver to secure them.
4 Attach the bezel door to the faceplate of the Signaling Server, as shown
in Figure 21 on page 85 and Figure 22 on page 85.
WARNING
