Installing the Main Distribution Frame Page 355 of 488
Communication Server 1000E Installation and Configuration
3 Attach labels on the cross-connect terminal to indicate the terminal blocks
assigned to the following:
• 25-pair cables from the system
•AUX wiring
•PFTUs
• Telephones and consoles
•Trunks
• Miscellaneous equipment

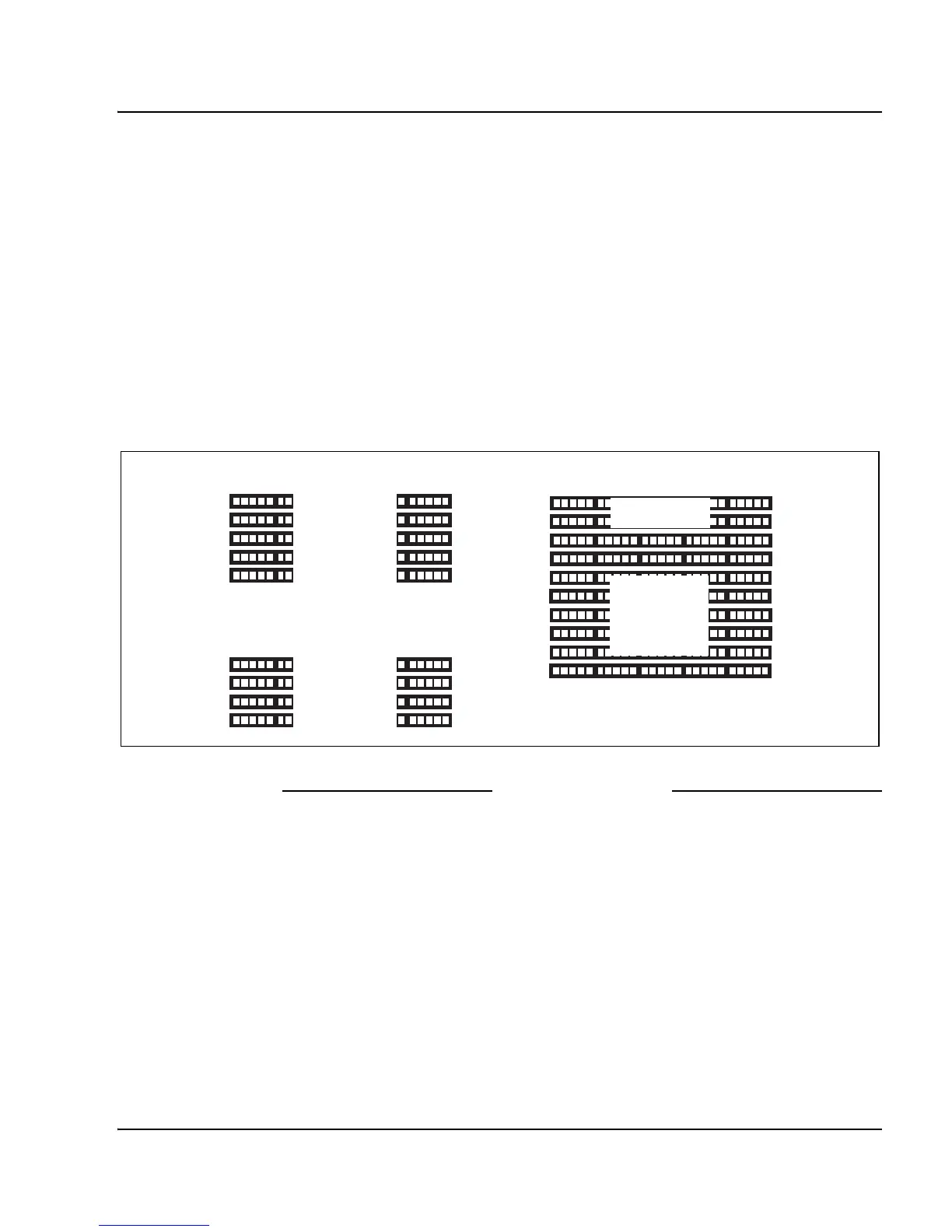

Figure 122
Typical BIX cross-connect terminal layout
End of Procedure
Media Gateway
Cable Card 1
Cable Card 2
Cable Card 3
AUX cable
PFTU
Telephones
Trunks
and
Miscellaneous
553-CSE9026A
Cable Card 4
Cable Card 7
Cable Card 8
Cable Card 9
Cable Card 10
Media Gateway Expansion
To Next Page
