System components Page 43 of 488
Communication Server 1000E Installation and Configuration

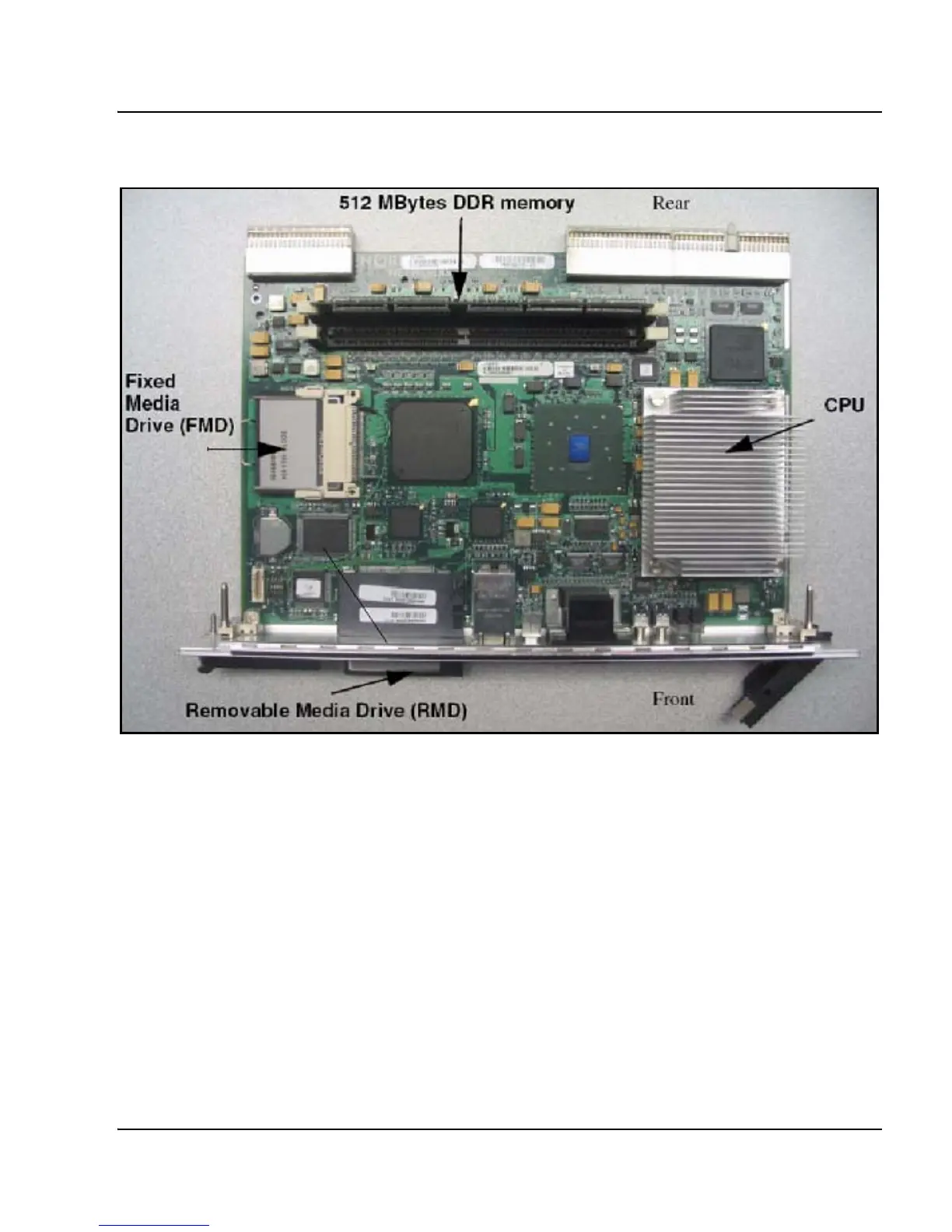

Figure 1
CS 1000E Core Call Server (top view)
The on-board CF is referred to as the Fixed Media Disk (FMD), and the
faceplate CF is referred to as the Removable Media Disk (RMD).
CP PIV has the following new hardware:
• A CP PIV processor board. See Figure 1 and Figure 2 on page 44.
• A blank panel.
Note: The front panel USB port on the CP PIV card is intended for
future applications.
The Call Server uses IP protocols to control all IP Phones, media services,
and interfaces to other gateways and applications.
