Page 474 of 488 Configuring MG 1000T survivability and alternate primary controller
553-3041-210 Standard 4.00 September 2007
3 Click Edit next to the desired node.
The Edit web page opens, as shown in Figure 100 on page 323.
4 Click LAN configuration.
The LAN configuration menu expands (see Figure 159 on page 474).

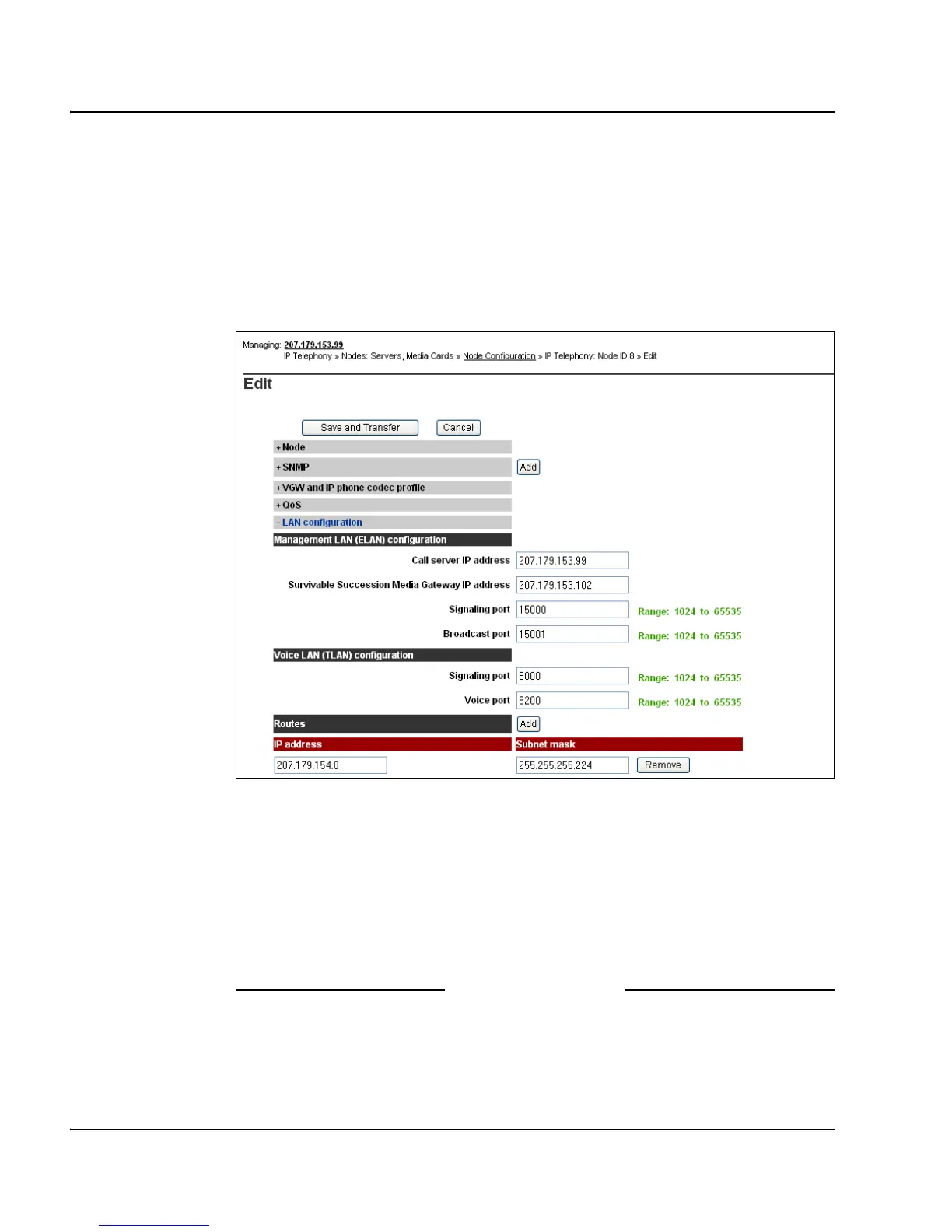

Figure 159
LAN configuration
5 Enter the Survivable Media Gateway IP address.
The IP address is the ELAN IP address of the survivable MG 1000T SSC
that this IP telephony node registers to if it loses the connection to the
MG 1000T Core.
6 Click Save and Transfer at the bottom of the Edit web page, then click
OK to save and transfer the changes.
End of Procedure
