30 Chapter 2 Getting started
NN46110-500

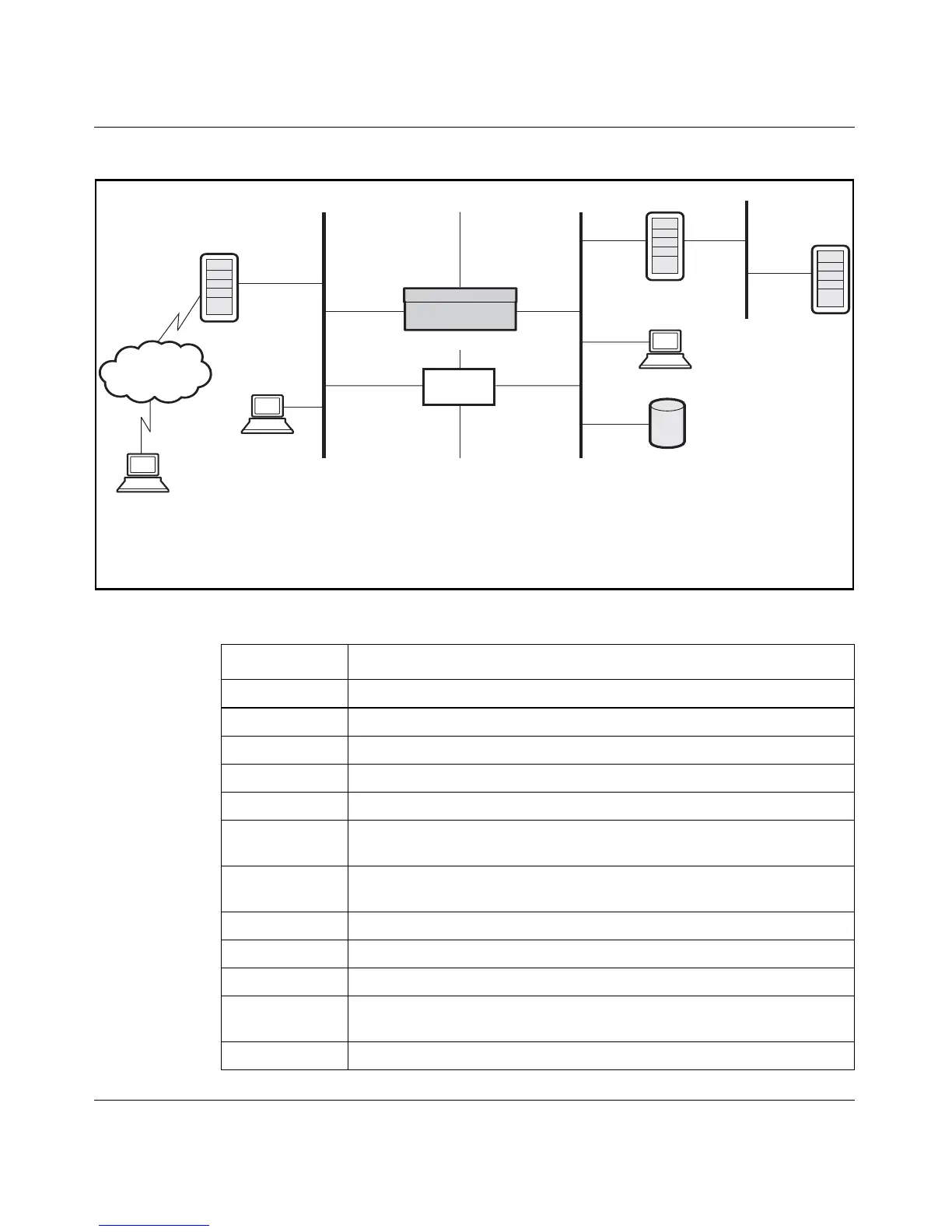

Figure 3 Sample IP addressing scheme
Table 1 Sample IP addressing associations
IP address Description (when applicable, where configured)
192.168.43.6 Dial-up networking to ISP (Internet access, ISP assigned)
192.19.2.30 Public default Internet VPN Router
192.19.2.33 Public LAN port IP address (remote user destination address)
192.19.2.32 Firewall public network address
10.2.3.2 Nortel VPN Router management IP address: System > Identity
10.2.3.3 Nortel VPN Router private LAN interface IP address: System > LAN
Edit IP address
10.2.3.4 Private network default VPN Router: System > Routing Add/Edit
Default Route
10.2.3.6 Sample partners FTP server for inventory and price list
10.2.3.7 Firewall private network address
10.2.3.8 DHCP server IP address
10.2.1.1 to
10.2.1.254
Private Network Addresses Assigned to Remote Tunnel Sessions:
DHCP pool: Servers > User IP Addr
172.19.2.30 ISP-assigned address
And
Nortel VPN Router
Existing
Firewall
Existing Public Default
Gateway Router
Existing Private Default
Gateway Router
Public
Data Network
192.168.43.6
192.19.2.30
192.19.2.33
192.19.2.32
Web Server
Remote User
172.19.2.30
10.8.4.6
10.2.4.56
10.2.1.23
-or-
DHCP Server
10.2.1.1
-To-
10.2.1.254
192.19.2.31
10.2.3.7
10.2.3.8
Class C
Subnetworks
255.255.255.0
Class A
Subnetworks
255.0.0.0
10.2.3.6
10.2.3.4
10.10.0.5
10.10.0.1
10.2.3.3
10.2.3.2
Public Private
