Chapter 2 Getting started 33
Nortel VPN Router Configuration — Basic Features

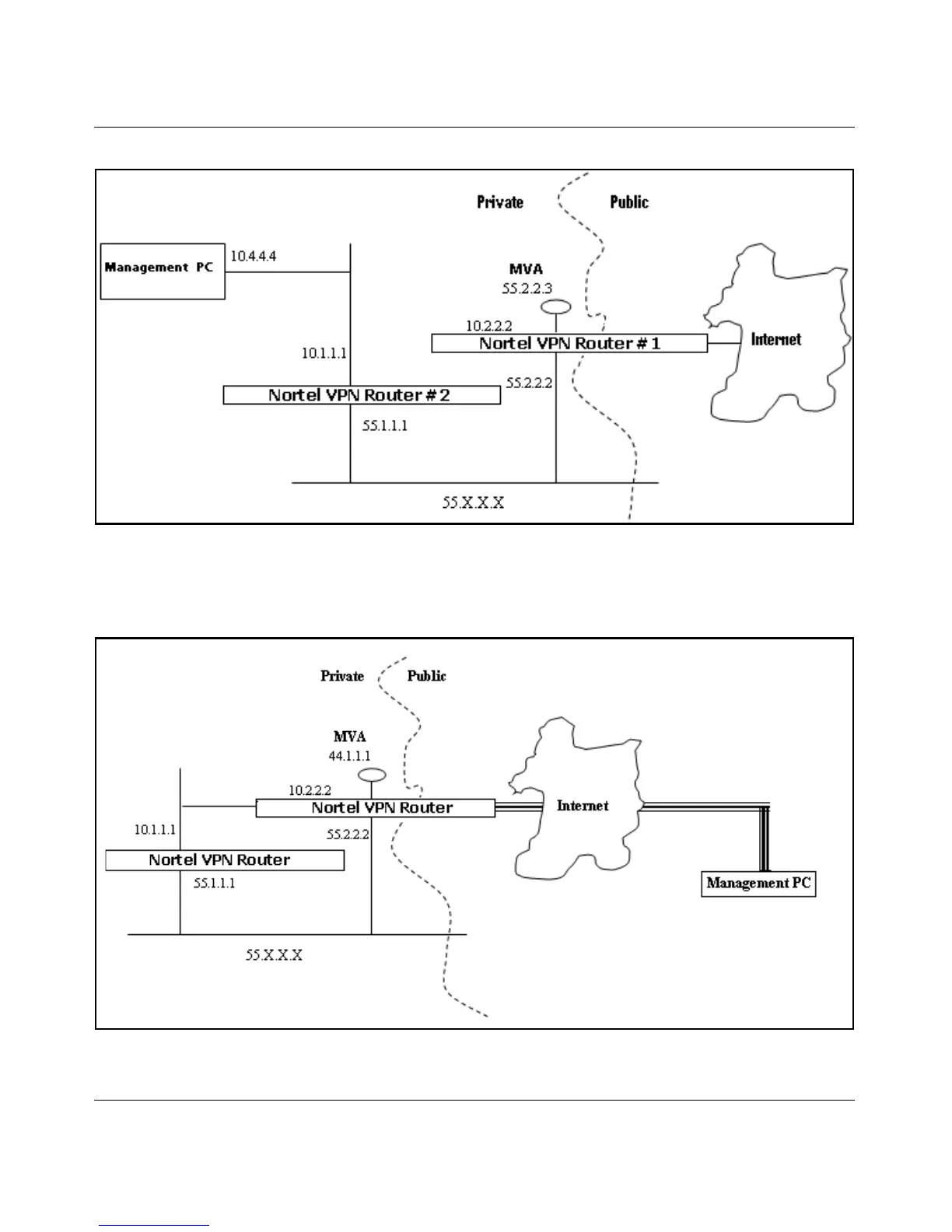

Figure 5 MVA on same subnet as private physical interface
Figure 6 shows MVA using CLIP to manage from a remote PC tunneled from the
public side.
Figure 6 MVA managing from a remote PC
