Section Four: Programming the AIM-200
Programming the AIM-200 involves two modes of operation: Auto-Program, (password
231-1332) and Program Edit (password 231-3112). A third function, Display Status, allows
the programmer to review the entire AIM-200 program. Program Clear (password 231-5678),
allows the clearing of an existing program from non-volatile memory.

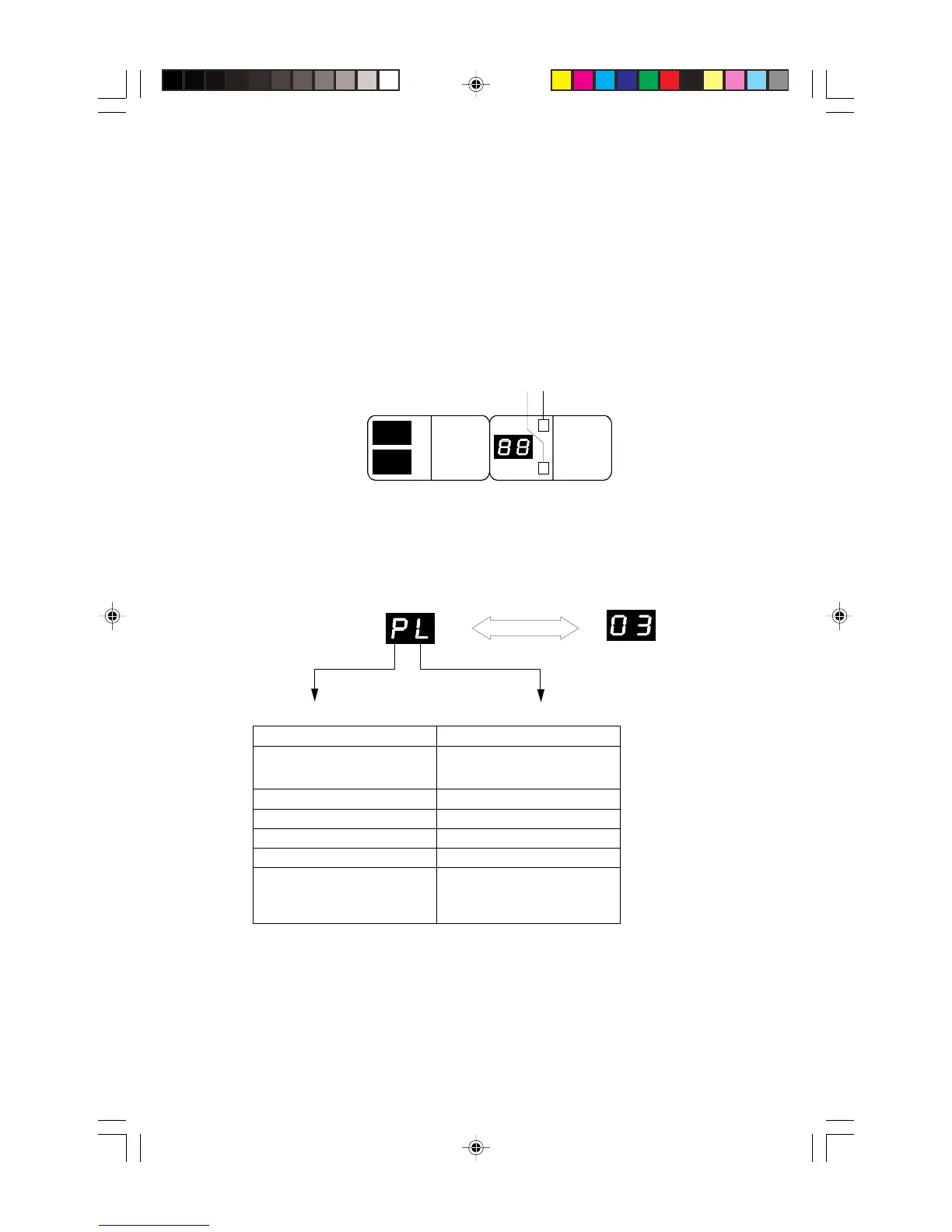

4.1 The Programming Display
Device Type
Green LEDs indicate whether the device is a detector or a module.
code3
DETECTOR
ADDRESS
MODULE
FORWARD
STEP
REVERSE
Green LEDs
Device
The device’s type and address are alternately displayed on the 2-digit 7-segment display.
Left Digit Right Digit
P = Photo Detector Blank = Normal Sensitivity (for
detectors), or Indicating Circuit
Selected (for CMXs)
I = Ion Detector L = Low Sensitivity (detectors only)
H = Heat Detector H = High Sensitivity (detectors only)
G = Monitor Module or Pull Station d = Disabled
C = Control Module O = Form-C Selected (CMXs)
E = No response from a device (the
AIM-200 is programmed for a device
which is in trouble or not physically
installed on the loop).
code4
Address
(01-99)
Address
(01-99)
