Appendix C: AIM-200 Point Annunciation
Note: For the following feature to be enabled, the AIM-200 requires software Part No. 73264
or higher.
The CPU can be programmed for an alternate method of annunciating the AIM-200. Up to
192 intelligent devices can be annunciated on a single AIM-200 with ACM or LDM series
annunciators, or the LCD-80 Liquid Crystal Display on the RS-485 interface. The System
5000 annunciates the AIM-200 installed directly to the right of the CPU. Note that an annun-
ciator cannot be used to execute manual ON/OFF control of intelligent AIM-200 points, only
standard System 5000 zones. The option provides annunciation of up to 256 points for the
System 5000, broken down as follows:

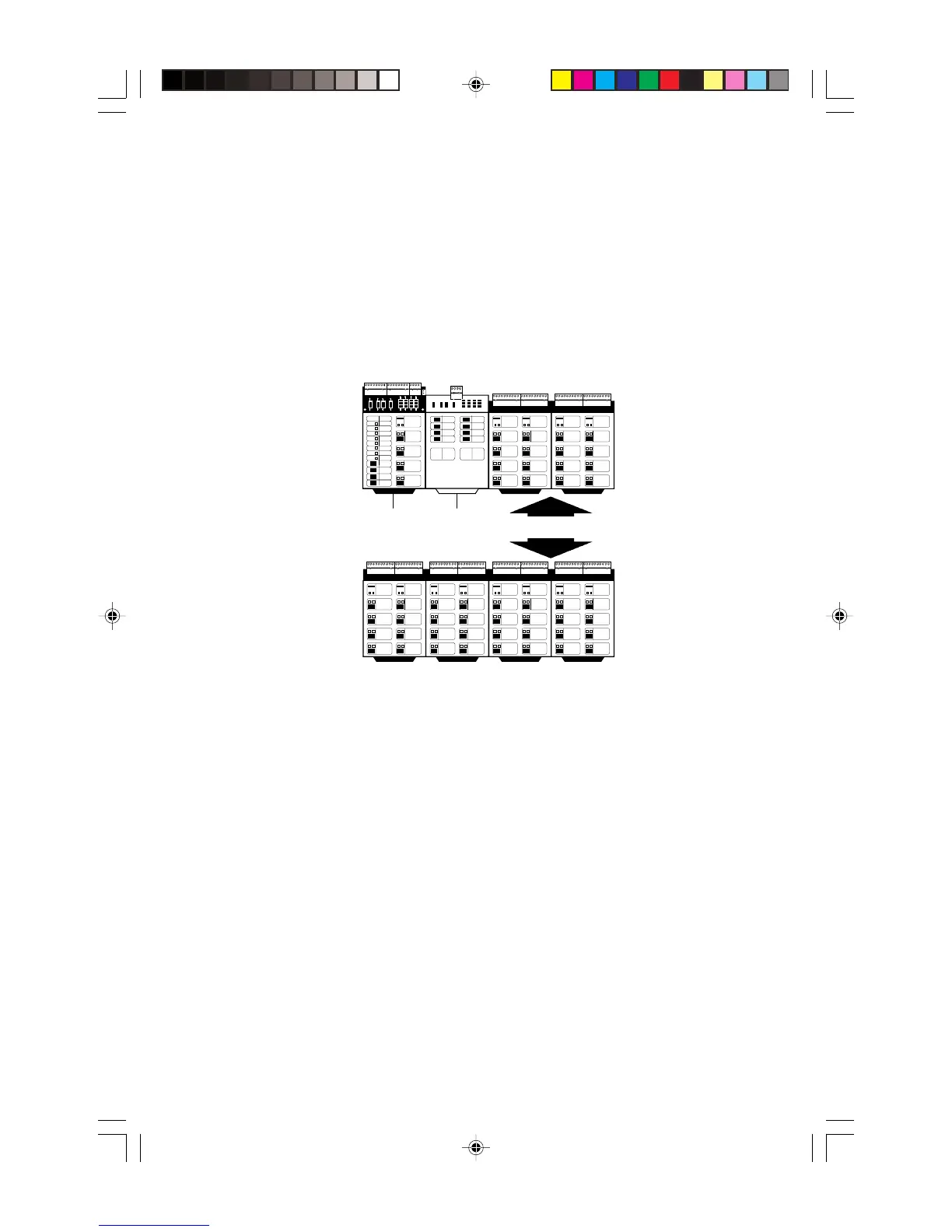

aim-200
AIM-200
8 CPU Points 8 Unusable
AIM-200 Points
48 Points Mapped to the
Next Six Modules Installed.
Annunciator Address 1:
8 CPU points (CPU point shift not an option).
8 unusable points.
48 points mapped to the next six modules installed in the System 5000 (which can also be
AIM-200s for annunciation of their eight software zones).
Annunciator Address 2:
AIM Intelligent detectors, addressed 1-64.
Annunciator Address 3
AIM Addressable Modules, addressed 1-64.
Annunciator Address 4
AIM Intelligent detectors, addressed 65-96, followed by AIM-200 Addressable Modules,
addressed 65-96.
The System 5000 Programming Manual provides programming instructions for this option.
Refer to program choice "AIM(256)."
Note: AIM-200 detector and module Addresses 97, 98, and 99 may be used, but cannot be
point-annunciated.
