5
Document 15949 Rev. E 4/12/95 P/N 15949:E
Section Two: Inventory
Card File
A special card file is attached to the bottom front of the AIM-200. Several
standard 4 in. by 2-1/4 in. cards are provided and may be marked with device
information by the installer. A reference card, which defines all display codes,
is included.

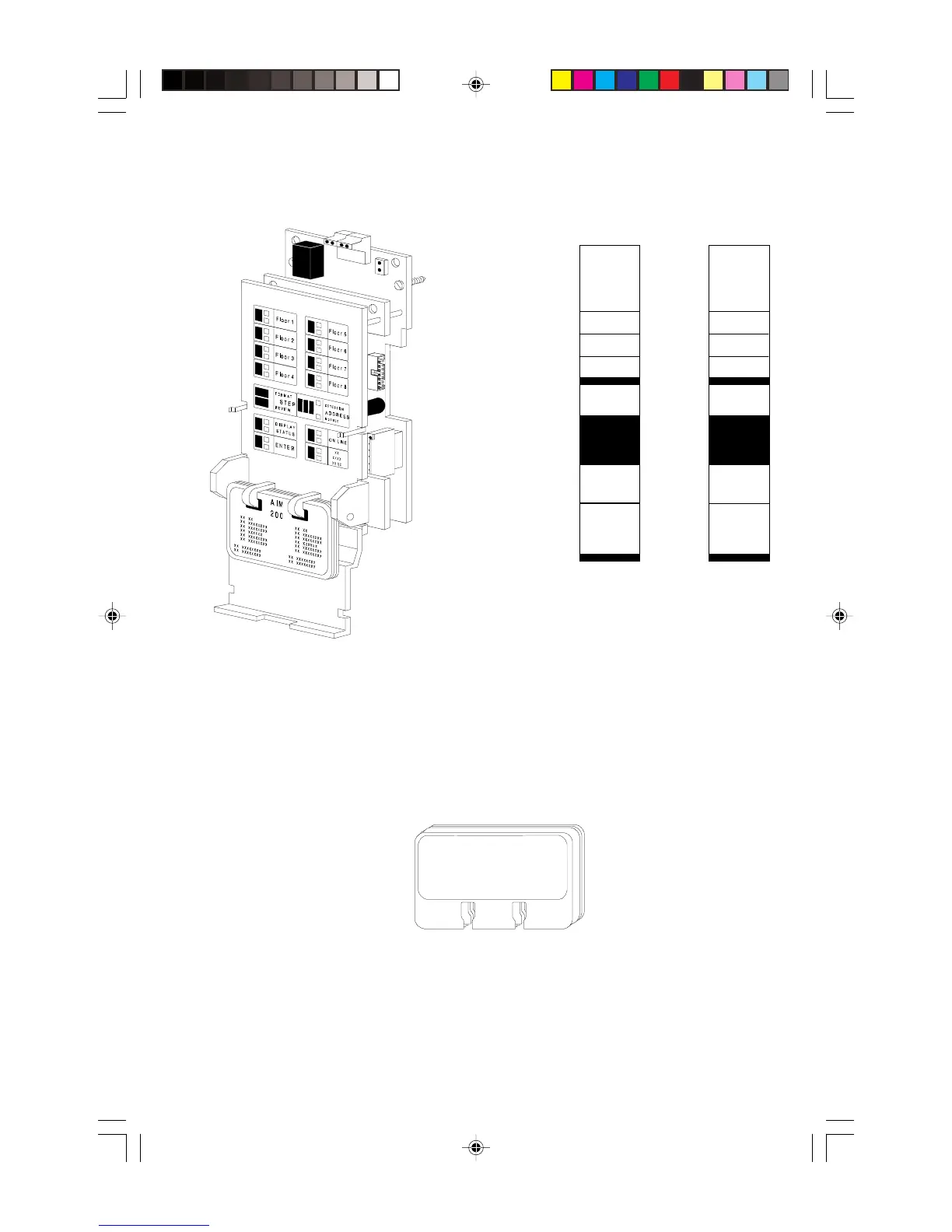

The AIM-200
Addressable Intelligent Module
The AIM-200 communicates with up to 99
intelligent detectors and up to 99 addres-
sable modules. The AIM-200 reports de-
vice alarm or trouble activity back to the
CPU as one of eight mapped zones.
aim200m
FOWARD
STEP
REVERSE
DISPLAY
STATUS
ENTER
AIMLABEL
DETECTOR
ADDRESS
MODULE
ON-LINE
SKIP
STYLE 6
LOOP FAULT
RESET
Label Inserts
The slide-in labels are printed with
identification for system-defined
LEDs and switches. Space is pro-
vided to type in custom informa-
tion for the eight user-defined
zones.
aimcard
1
1
1
1
1
AIM-200
Addressable
Intellig e nt Module
1
This module m o ditors 8 zones of fire detedtion devices. Ea ch
zone may consist of many individual detectors or other devices.
The address of the device in alarm or trouble (fault) is indicated by
the 2-digit display. If multiple addresses are displayed, press the
STEP switches to control the display. Additional information about
each device is provided behind this card. This module can
measure the condition and status of its detectors (intelligent).
Information and controls are provided behind all cards (authorized
individuals only).
