NOVA BIOMEDICAL BIOPROFILE FLEX2 - Spatial Considerations; FLEX2 + ESM Component Dimensions

3-2
BioProfile FLEX2 ESM Instructions for Use Manual
3.2 Spatial Considerations
This section serves to inform the End User of the FLEX2 and ESM component dimensions
and tubing specications so that the required space next to the ambr® system can be
prepared prior to install.
3.2.1 FLEX2 + ESM Component Dimensions
Table 3.1 FLEX2 + ESM Component Dimensions
Measurement FLEX2 Without Osmometer FLEX2 With Osmometer ESM
Height 23.5 in. (59.69 cm) 23.5 in. (59.69 cm) 6.9 in. (17.53 cm)
Width 16.75 in. (42.55 cm) 24.75 in. (62.86 cm) 9.7 in. (24.64 cm)
Depth 25.0 in. (63.50 cm) 25.0 in. (63.50 cm) 18.2 in. (46.23 cm)
Weight* less than 125 lbs. (56.7 kg) less than 145 lbs. (65.8 kg) 17.8 lbs. (8.1 kg)
*With applicable reagent cartridge(s) installed

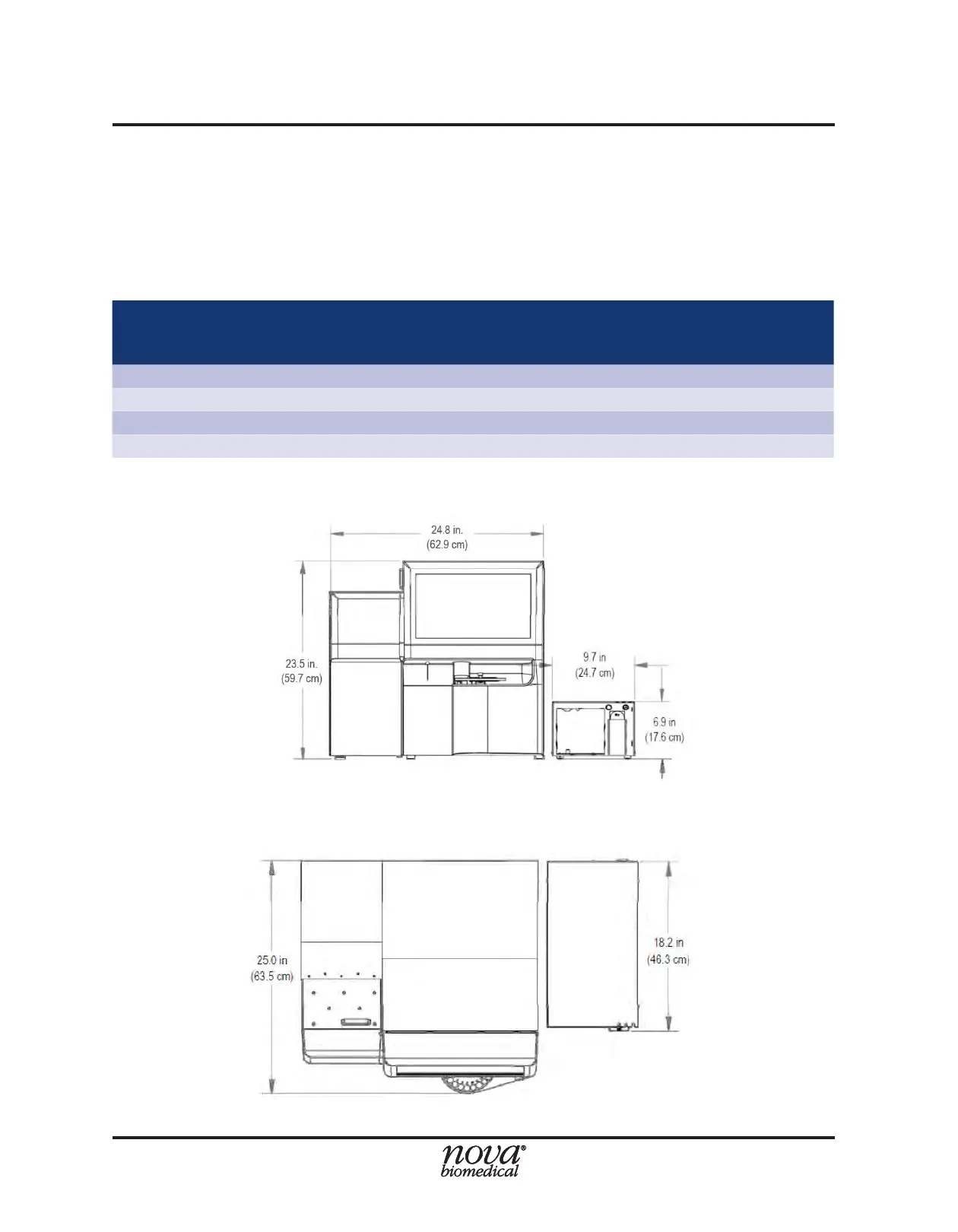

Figure 3.1 Front View- FLEX2 + Osm + ESM
Figure 3.2 Top View- FLEX2 + Osm + ESM
