NOVA BIOMEDICAL BIOPROFILE FLEX2 - Esm250;Ambr 250 Spatial Requirements

3-7
3 Implementation
3. Implementation
3.2.4 ESM250/ambr® 250 Spatial Requirements
The FLEX2 ESM250 sits on a shelf mounted directly to the left wall of the ambr® 250 BSC.
As with ambr® 15 integration, the FLEX2 must be placed on a table/bench to the left of the
ambr® 250 BSC, and FLEX2 positioning is constrained by the length of external tubing lines
listed in Table 3.2. The FLEX2 must be close enough to the BSC and ESM such that the
Sample (CF) and Waste (EF) uid lines are not stretched or crimped.
○ Ensure that the right side of the FLEX2 resides no further than 20 in. from the left
outer wall of the BSC.
○ The FLEX2 should be positioned such that the main front panel door is not impeded
by the BSC wall or ESM/shelf when opening or closing.
NOTE: The ESM will always sit on the shelf mounted to the left cover of the ambr®
250 regardless of whether an Analysis Module is present on the ambr® 250.
HEIGHT AT WHICH FLEX2 AND 250 TUBE OUTLETS ARE LEVEL
FLEX2 BENCH HEIGHT MAY BE INCREASED UP TO 36 in. (90 cm) DEPENDING ON CUSTOMER
REQUIREMENTS
42 in. (107 cm)
24.8 in. (63 cm)
51 in. (129.5 cm)
Sample Line (CF)
Outside Cabinet
24 in. (60 cm) Max

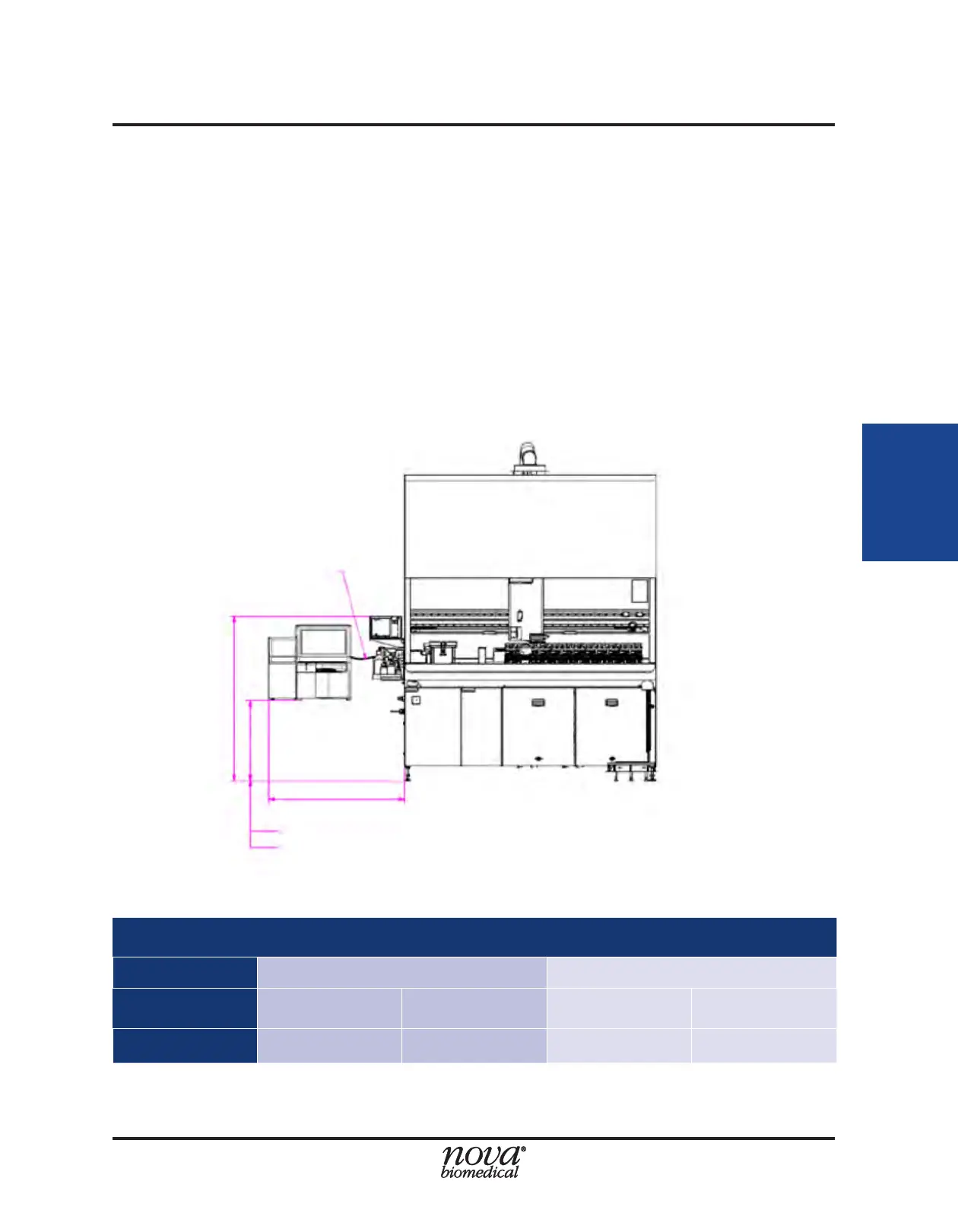

Figure 3.7 FLEX2 + Osmo + ESM integrated with ambr® 250 ht + AM
Table 3.5 Estimated Bench Space Needed to the Left Side of ambr250® Biosafety Cabinet
ambr® configuration No Analysis Module With Analysis Module
FLEX2
Configuration
FLEX2
w/o Osmo
FLEX2 +
Osmo
FLEX2 w/o
Osmo
FLEX2 +
Osmo
ESM on shelf 29 in. (73.0 cm) 37 in. (94.0 cm) 34 in. (86.0 cm) 42 in. (107.0 cm)
