OEM617D Technical Specifications Appendix C
OEM6 Family Installation and Operation User Manual Rev 12 136
C.1.1 Physical Description
PHYSICAL
Size 46 mm x 71 mm x 11 mm
Weight 24 grams
NOVATEL PART NUMBER
Generic assembly OEM617D 01019268
MECHANICAL DRAWINGS

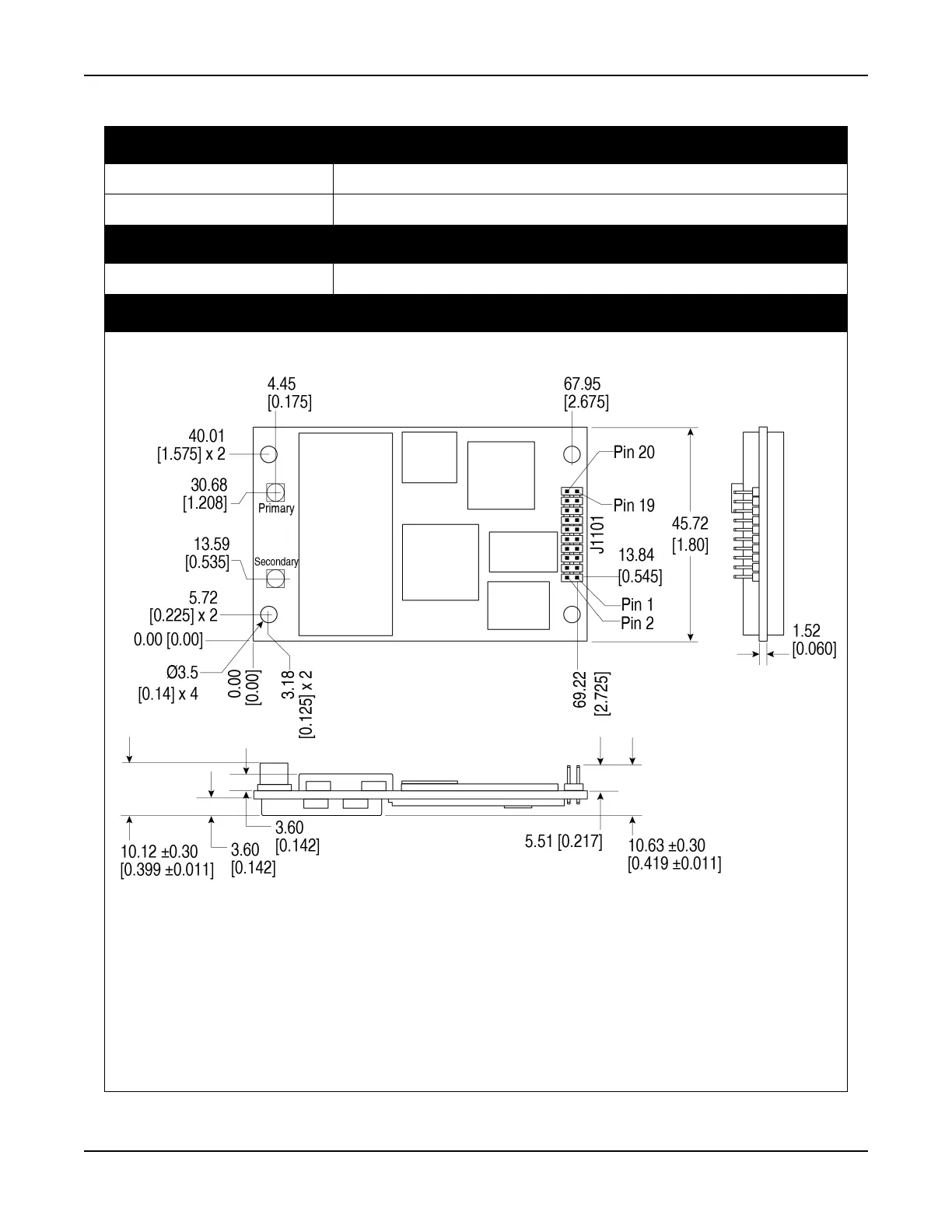

Figure 67: OEM617D Board Dimensions
Notes:
1. Dimensions are in millimeters [inches].
2. Connectors:
(a)Primary and Secondary: MMCX jack receptacle, straight
(Johnson P/N 135-3711-201 or Molex P/N 73415-2063 or equivalent)
(b)J1101: 2x10 header, 2 mm pitch
(Samtec P/N TMM-110-03-G-D)
3. Mounting holes are symmetrical.
