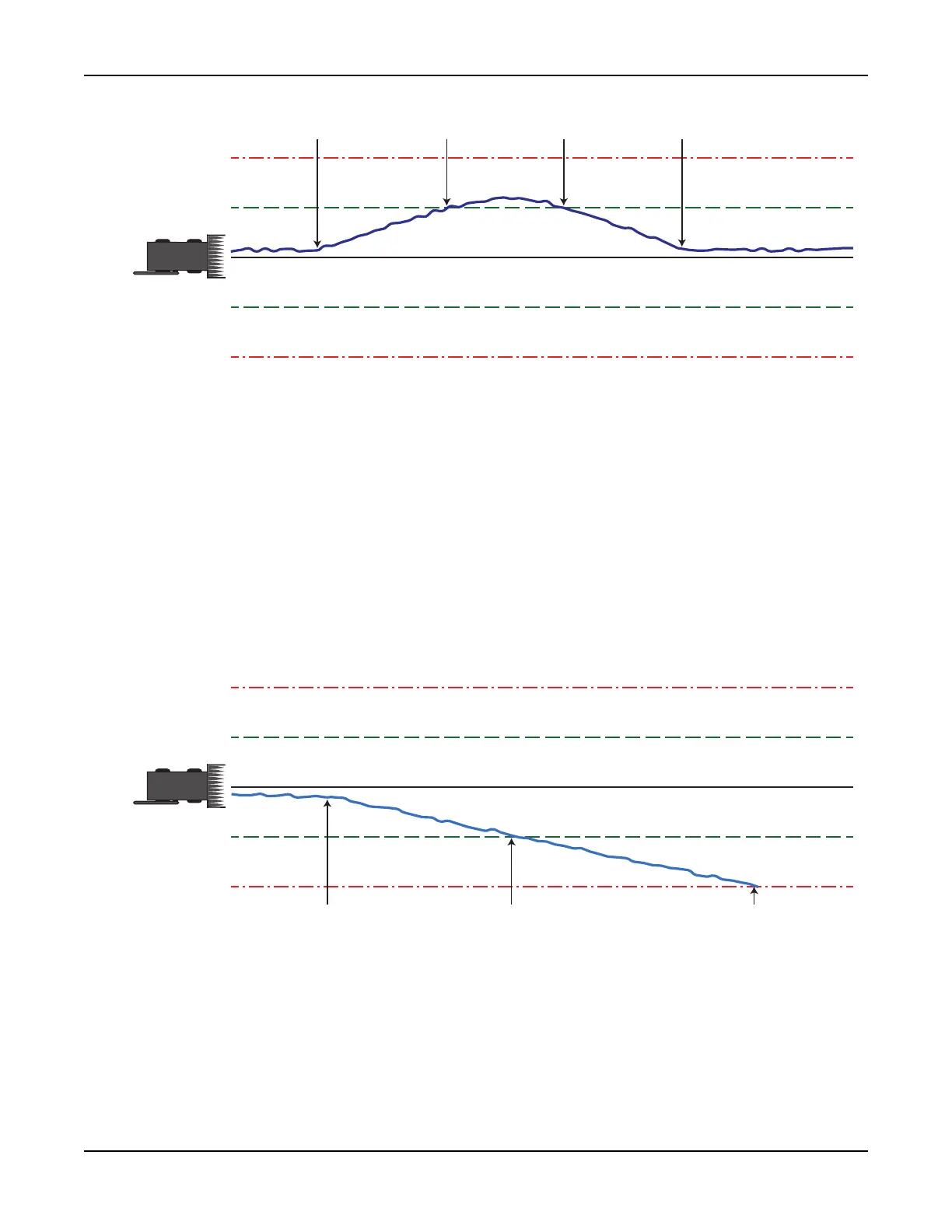

Figure 28: STEADYLINE UAL- Warning Limit Example
Figure 29: STEADYLINE UAL - Out of Bounds Example
A
Position type is OPERATIONAL.
Higher accuracy corrections are lost. The receiver changes to a lower accuracy solution.
STEADYLINE operates in Maintain mode while the solution accuracy remains within the Operational
limit.
B
The solution accuracy exceeds the operational limit. The position type changes to WARNING.
The STEADYLINE mode changes from Maintain to Prefer Accuracy.
C
The solution accuracy moves back within the operational limit. The position type changes to
OPERATIONAL.
The STEADYLINE mode remains in Prefer Accuracy mode.
D
The solution offset is removed.
The STEADYLINE mode changes from Prefer Accuracy to Maintain.
A
The position type is OPERATIONAL.
Higher accuracy corrections are lost. The receiver changes to a lower accuracy solution.
STEADYLINE operates in Maintain mode while solution accuracy remains within the Operational limit.
B
The solution accuracy exceeds the operational limit. The position type changes to WARNING.
The STEADYLINE mode changes from Maintain to Prefer Accuracy.
C
The solution accuracy exceeds the warning limit. The position type changes to OUT_OF_BOUNDS.
STEADYLINE is disabled.
Operational
Limit
Warning
Limit
Operational
Limit
Warning
Limit
ABCD
Operational
Limit
Warning
Limit
Operational
Limit
Warning
Limit
AB C
