In the example shown in Figure 38, Status LED Flash Sequence Example on page 85, the first flash in the
sequence is red, meaning a bit is set in the receiver error word. The next five flashes give a binary value of
00111. Converting this value to decimal results in a value of seven. Therefore, bit seven of the receiver error
word is set, indicating a problem with the supply voltage of the receiver’s power circuitry.

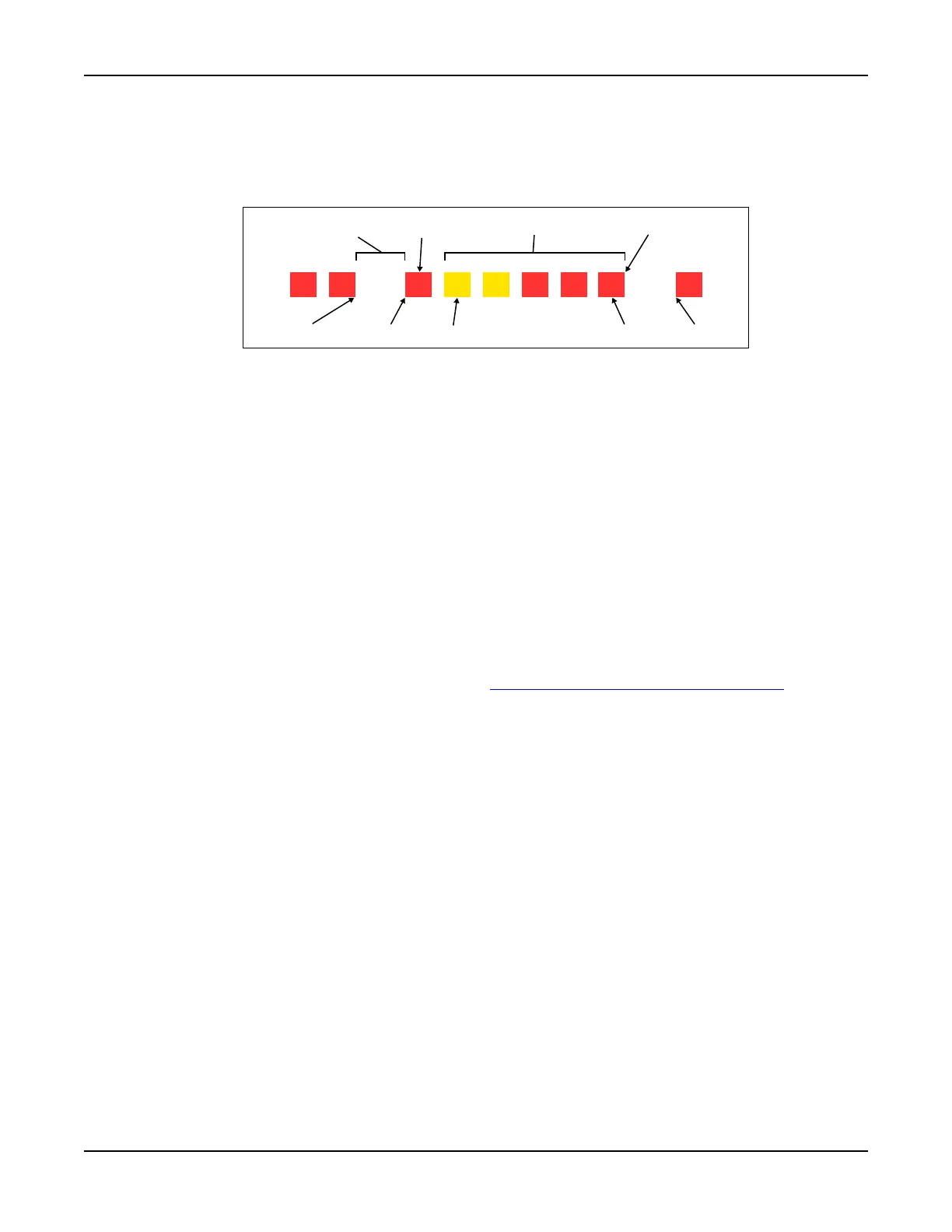

Figure 38: Status LED Flash Sequence Example
Refer to the RXSTATUS log and associated tables in OEM6 Family Firmware Reference Manual
(OM-20000129) for more information about this log and receiver error status.
Reference Description
1Red
2 Yellow
3 1 Second Pause
4 Word Identifier Flash
5 Bit Identifier Flashes
6 End of Sequence
7 End of Previous Sequence
8 Beginning of Sequence
9 Most Significant Bit of Binary Value
10 Least Significant Bit of Binary Value
11 Start of Next Sequence
65
4
3
789 1011
......
11 1 1 11 122
