1 - Master 1 ( Left ) & 2 ( Right ) Audio Outputs.
These 1/4 inch Jack sockets deliver a Stereo Line Level output signal for connection to a mixing desk or amplifier. The level of
these outputs is controlled by the Master Volume Knob on the front panel.
2 - Aux. Out 3 ( Left ) & 4 ( Right ) Audio Outputs.
These 1/4 inch Jack sockets deliver a Stereo Line Level output signal for connection to a mixing desk or amplifier. These outputs
can be used in addition with the Master Audio Outputs for more flexibility in live & studio applications.
3 - Headphones ( Output 5 & 6 ) Audio Outputs.
This 3.5mm Jack socket delivers a Stereo Headphone output & via a breakout cable ( not supplied ) provides Line Level output
signal for connection to a mixing desk or amplifier. These outputs can be used in addition with the Master Audio & the Aux 1
Outputs for even more flexibility in live & studio applications.
4 - MIDI IN
This connector is used to receive MIDI Data from an external device.
5 - MIDI OUT
This connector is used to transmit MIDI Data to an external device.
6 - MIDI THRU
This connector re-transmits MIDI Data received by the MIDI IN socket to an external device.
7 - Power On/Off Switch
This switch turns the Nova On & Off.
8 - Power Supply Socket
This socket is for the supplied power supply. CAUTION: Only use the supplied Novation Power Supply Model No KA60A.
9 - Input Sensitivity Switch
This switch selects the sensitivity of the 2 Audio Inputs. In the single dot position the sensitivity is greatest & is suitable for micro-
phones. In the 2 dot position the sensitivity is suitable for your average guitar. In the 3 dot position the sensitivity is suitable for con-
sumer audio electronics ( - 10dB ). In the 4 dot position the sensitivity is suitable for professional level signals ( + 4dB ).
10 - Audio Inputs I & 2
These 1/4 inch jack sockets allow external signals to be processed by the Nova’s synth engine and/or effects. Input 2 can also
double as an Expression pedal/Footswitch input.

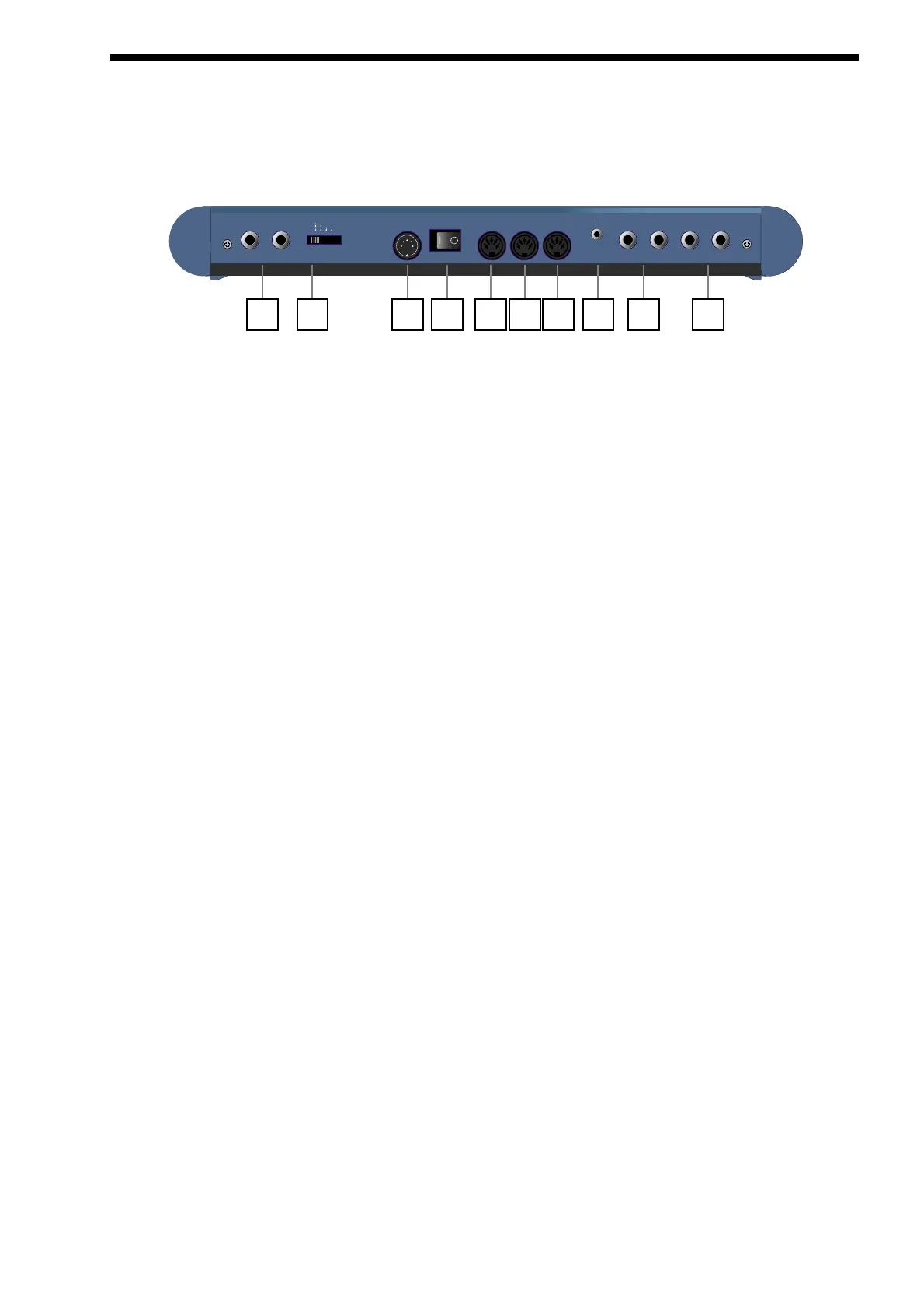

REAR PANEL
3
To Next Page
