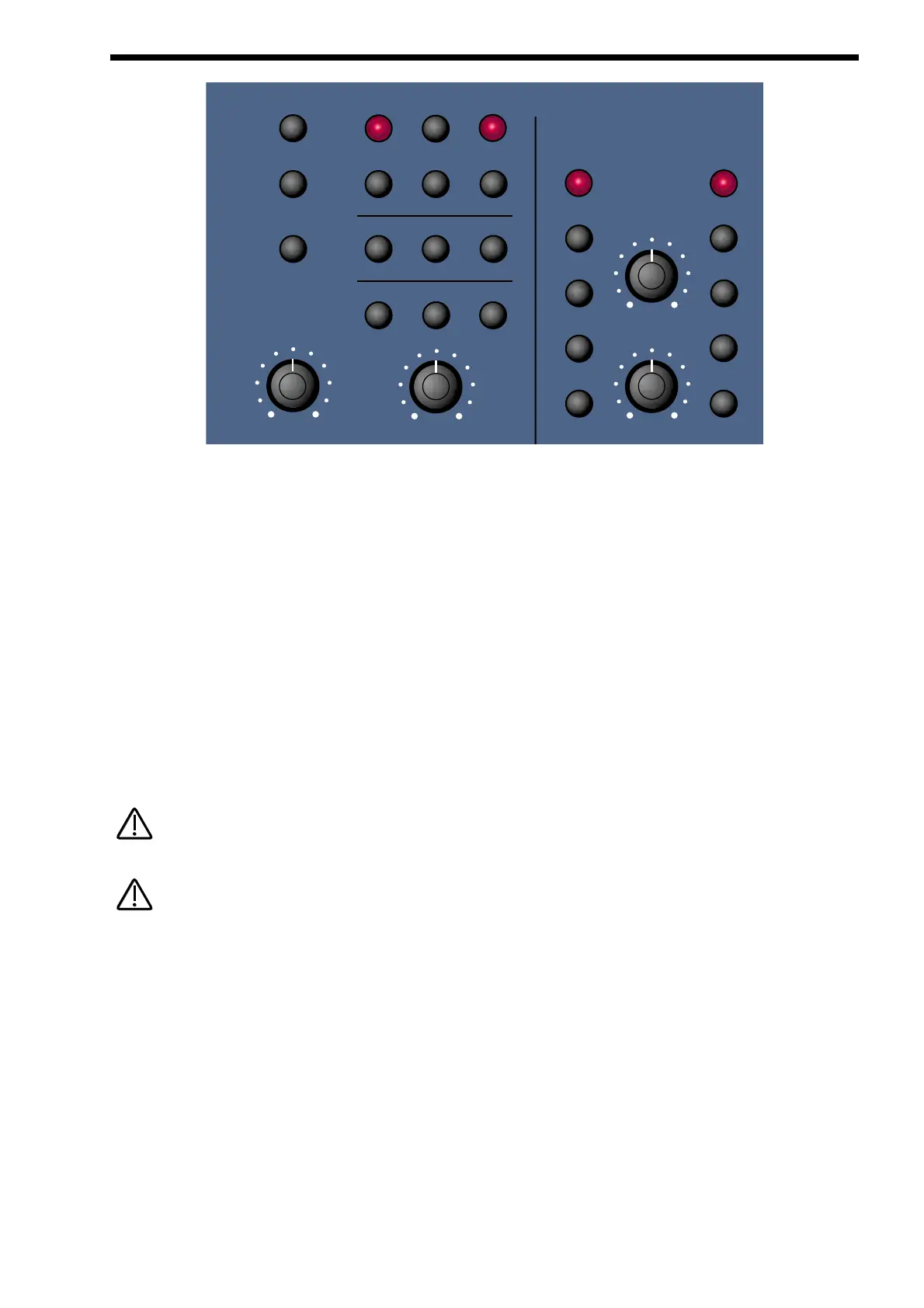

This section contains all the knobs & buttons associated with the Oscillators & Mixer.
Osc1 - Button
Osc2 - Button
Osc3 - Button
Noise - Button
1*3 - Button
2*3 - Button
All these buttons “select” which oscillator is going to be manipulated by the other parameters in this section. Osc 1 button selects
Oscillator 1, Osc 2 button selects Oscillator 2, Osc 3 button selects Oscillator 3, Noise button selects the Noise Generator, 1*3 but-
ton selects the output of the Ring Modulator between Oscillators 1 & 3 & the 2*3 button selects the output of the Ring Modulator
between Oscillators 2 & 3. For example, to adjust the “Octave” setting of Oscillator 1 press the “Osc 1” button, ( it will light up indi-
cating it is selected ) & then press the “Octave” button within the Tune Part of this section. Adjusting the “Tune” knob will now
change the octave setting of Oscillator 1. The display will change to indicate the parameter that has been selected & display the
newly edited value. The Display will stay like this until another parameter is adjusted, in which case it will change to display the
new parameter. To return to the display of the Program / Performance name & number press the appropriate Program or
Performance button.
Only one Oscillator or one of the Ring Modulators or the Noise Source can be selected / edited at one time.
Some parameters do not apply to all sound sources. i.e. The “Octave” parameter has no effect on the Noise generator. If this is
the case, the display will read “Not Available” when the control is adjusted.
Solo - Button
This button is similar to a “solo” button on a mixing console. Pressing this button activates the solo function ( The button is lit ) &
the currently selected sound source will be soloed. When the solo button is active ( lit ) the display will momentarily indicate that
the selected sound source has been soloed. To return to normal operation press the solo button again. ( unlit )
