NPS Y6000eco - Exhibit 7 - Fifth-Wheel Generator Exhaust Assembly

Exhaust
Pipe
Exhaust Pipe
Flange

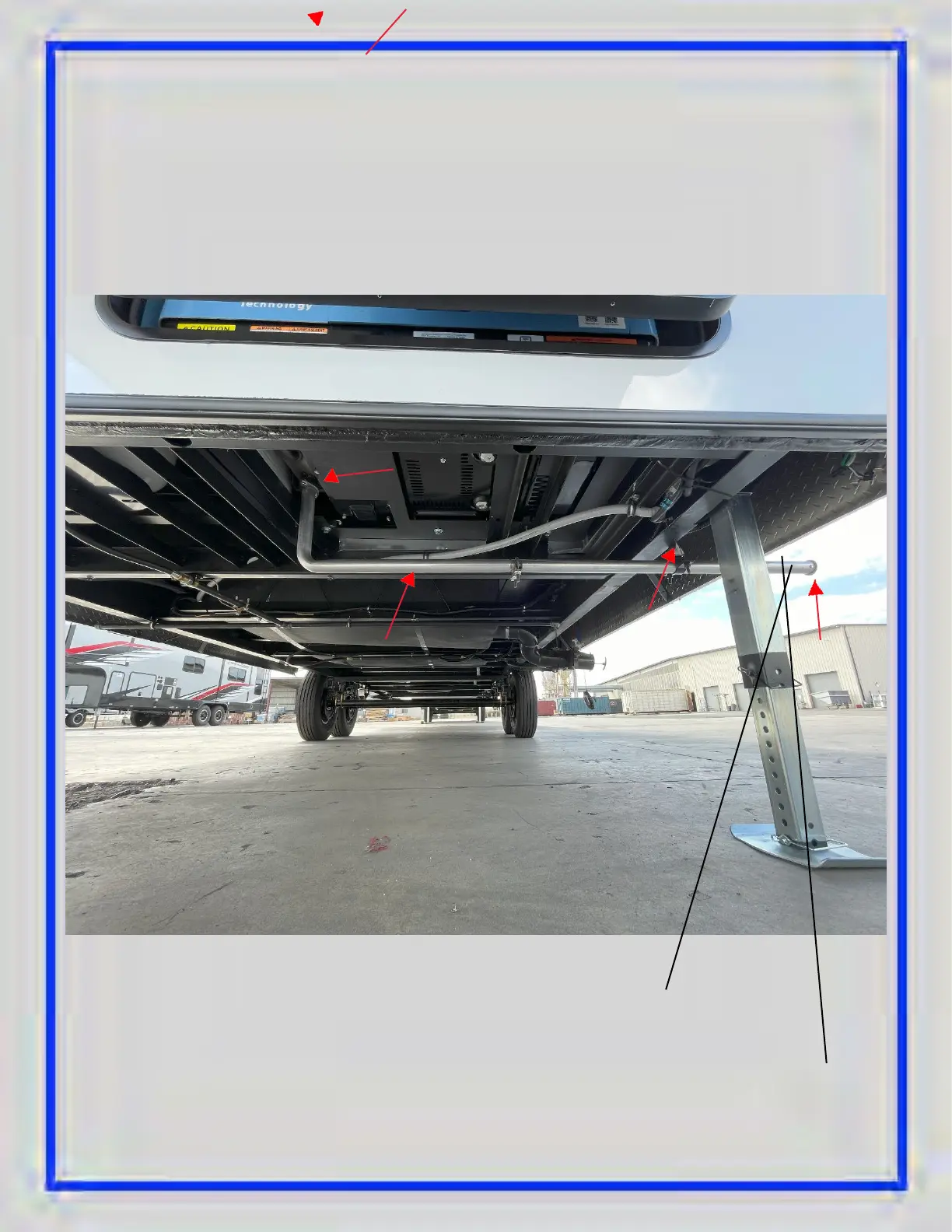

Exhibit 7 - Fifth-Wheel Generator Exhaust Assembly
–
Page 30 of 55 Rev. 1
End of Exhaust Pipe
must
extend no less than 25.4 mm
(1") beyond outer metal
skirting or
trim
Clearance minimum of 76.2 mm or (3") and
maximum of 101.6 mm or (4") from
bottom of fifth
-wheel skirting to top
of Exhaust
Pipe
Spark
Arrester
Exhaust
hanger
