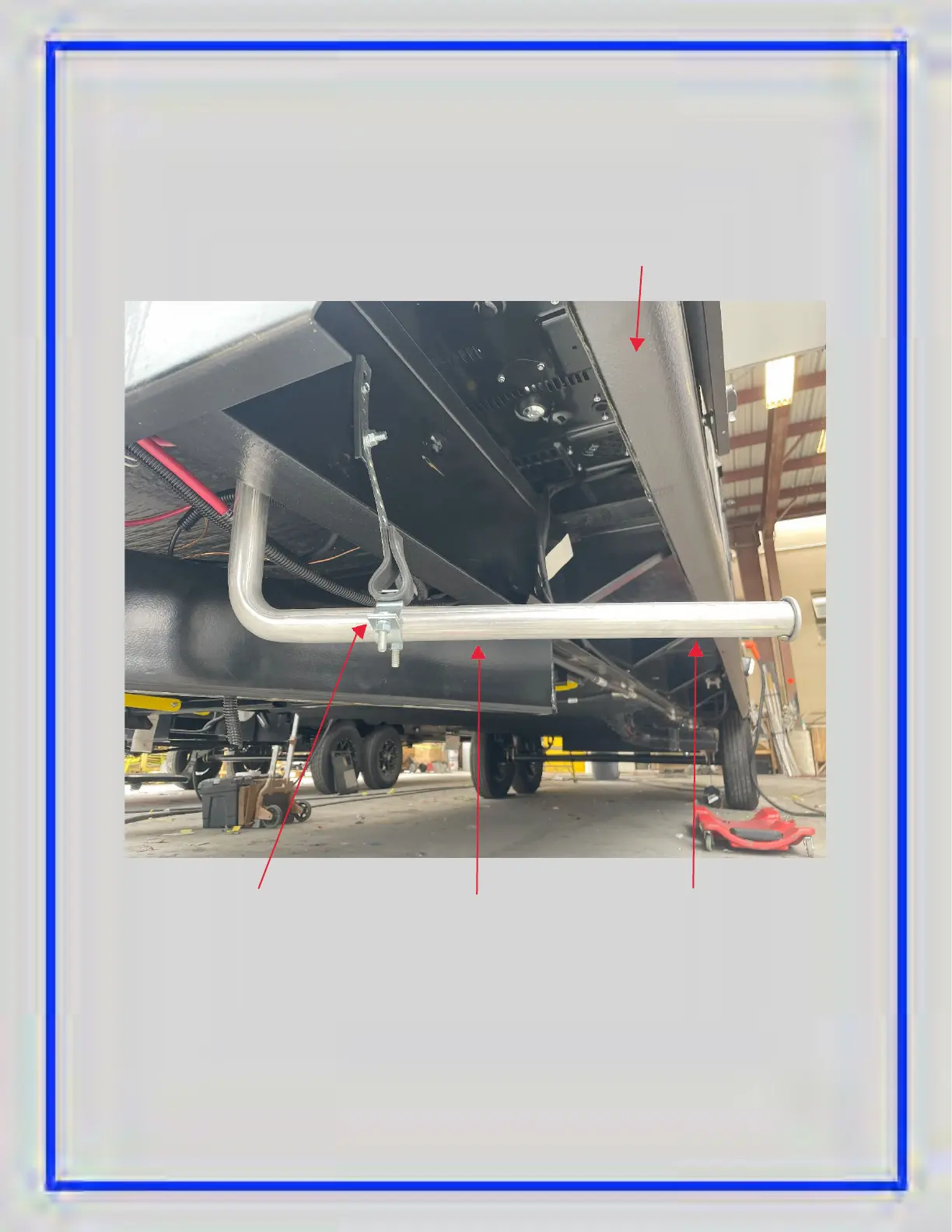

Exhibit 9 - Bumper-Pull Exhaust Assembly Configuration
Depending on the bumper-pull model, the trailer skirt may or may not need to be trimmed out around
the Exhaust Pipe to ensure proper minimum clearance distances. If skirting is trimmed, heat resistant
flexible rubber molding should be installed on the rough edge of the trimmed metal to prevent the
Exhaust Support Strap from being damaged by vibration against the trailer skirting. When possible,
downpipe should be used or omitted as necessary to maintain a clearance minimum of 76.2 mm or
(3") from bottom of bumper-pull skirting to top of Exhaust Pipe.
Page 32 of 55 Rev. 1
Strap
Minimum
clearance of 304.8mm
(12")
required from bottom of
Exhaust Pipe to Ground
To Next Page
