NPS Y6000eco - Exhibit 8 - Fifth-wheel Generator Exhaust Placement

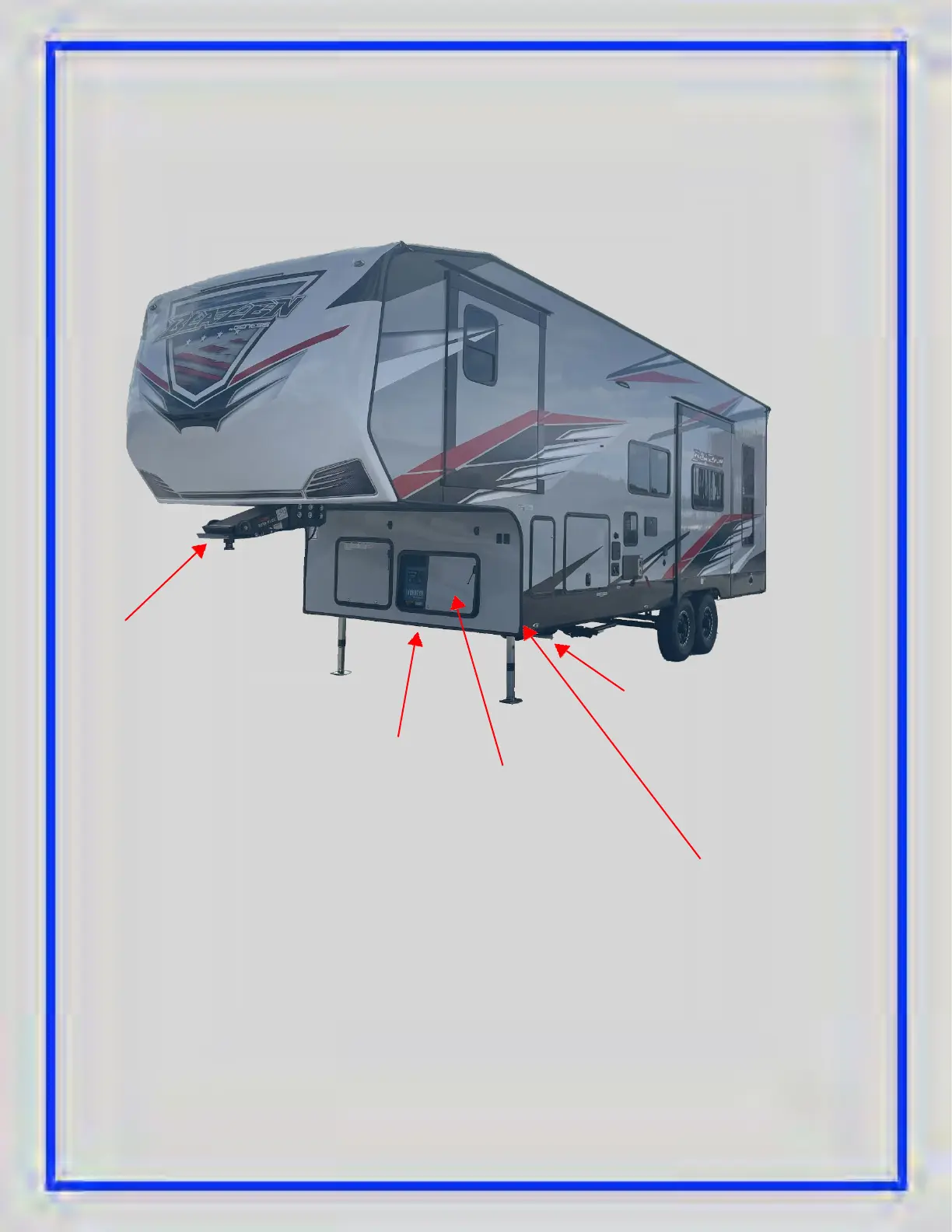

Exhibit 8 - Fifth-wheel Generator Exhaust Placement
Exhaust should be installed so the horizontal portion of the Exhaust Pipe is level. When possible,
downpipe should be omitted to maintain a clearance minimum of 76.2 mm or (3") and maximum of
101.6 mm or (4") from bottom of fifth-wheel skirting to top of Exhaust Pipe. See Exhibit 7.
Page 31 of 55 Rev. 1
Fifth-wheel
Tow Hitch
Fifth-wheel
Skirting
Exhaust Pipe and
Exhaust Support
Strap
Generator
Fifth-wheel Generator
Service Access
Door
