3 Handling of this device
3.1 Name of each parts of this device

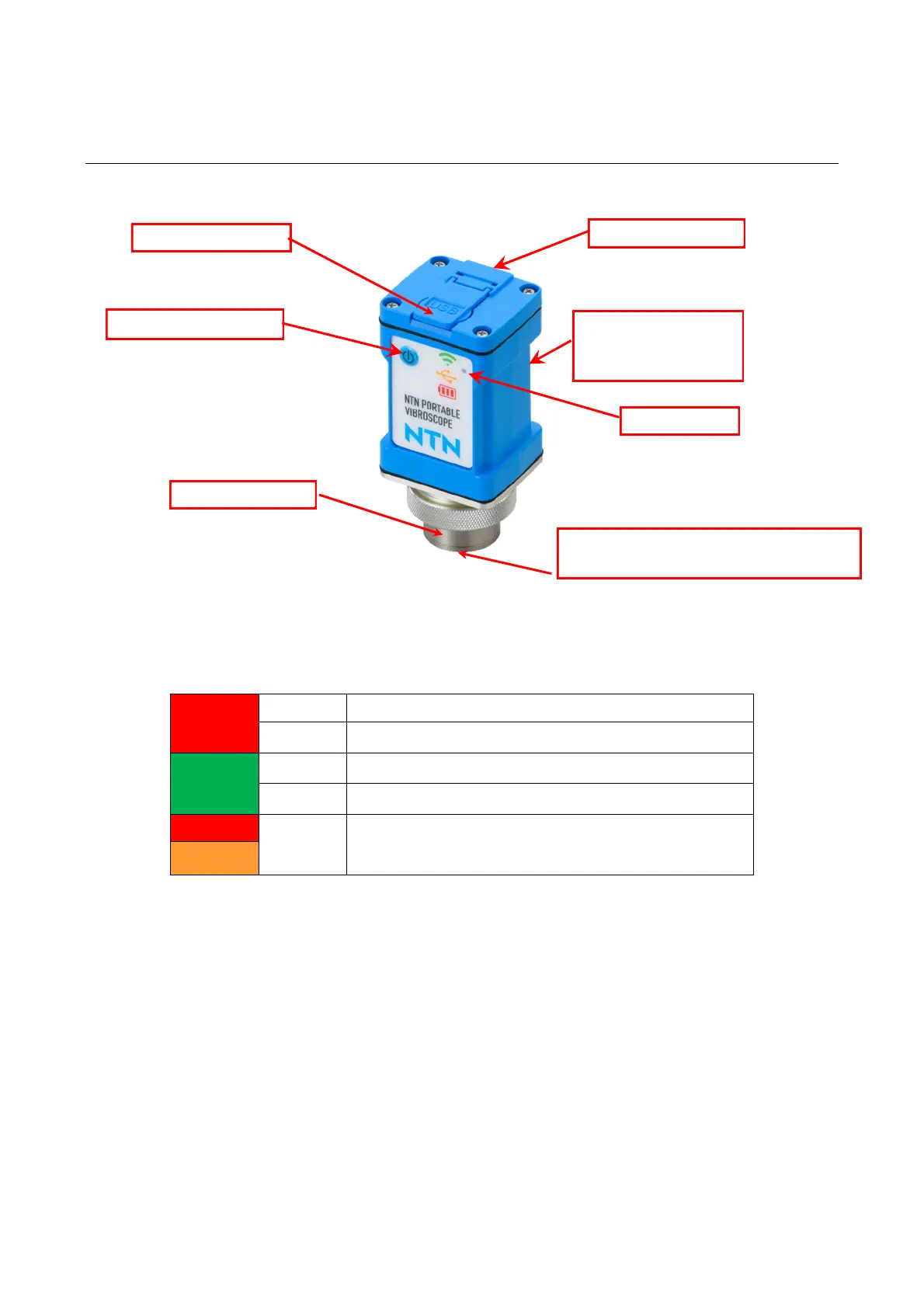

Figure 3.1 Name of each parts
Table 3.1 Color and state of LED display lighting
Red
Lighting
Error generated
Blinking
Wi-Fi waiting
Green
Lighting
Wi-Fi connection established (Data is not sent yet)
Blinking
Wi-Fi connection established (Data is being sent)
Red
Alternate
blinking
During charging
Orange
Power supply button
LED display
USB connector lid
Vibration sensor
Mounting screw (bottom)
Screw hole: M6 x P1.0, Depth: 4mm
Strap hole (back)
Nameplate (back)
Serial number
SSID
