3.2 How to put in and detach chargeable battery
Use 2 chargeable batteries of size AAA (Ni-MH battery) for this device. Moreover,
use mixed batteries of old/new ones or different types. There is a possibility of causing
the breakdown.
Insert the battery into this device with correct + - poles.
D
etach the battery of the measuring instrument when you do not use this device for a long
time. The measuring instrument might be damaged by the battery liquid leakage etc.
The battery box upper lid is detached by removing screws at 4 positions while power supply is turned
off. Then remove the screws at 2 positions and detach the battery box middle lid. Insert the 2 chargeable
batteries of size AAA with taking care of the direction of +- poles. After inserting the batteries, insert the
packing to secure each lid firmly.
When detaching the battery, remove the screws at 4 positions and detach the battery box upper lid
while turning off the power supply. Moreover, remove the screws at 2 positions and detach the battery
box middle lid to detach 2 chargeable batteries of size AAA. When this device is not used for a long time,
keep it with detaching the battery.

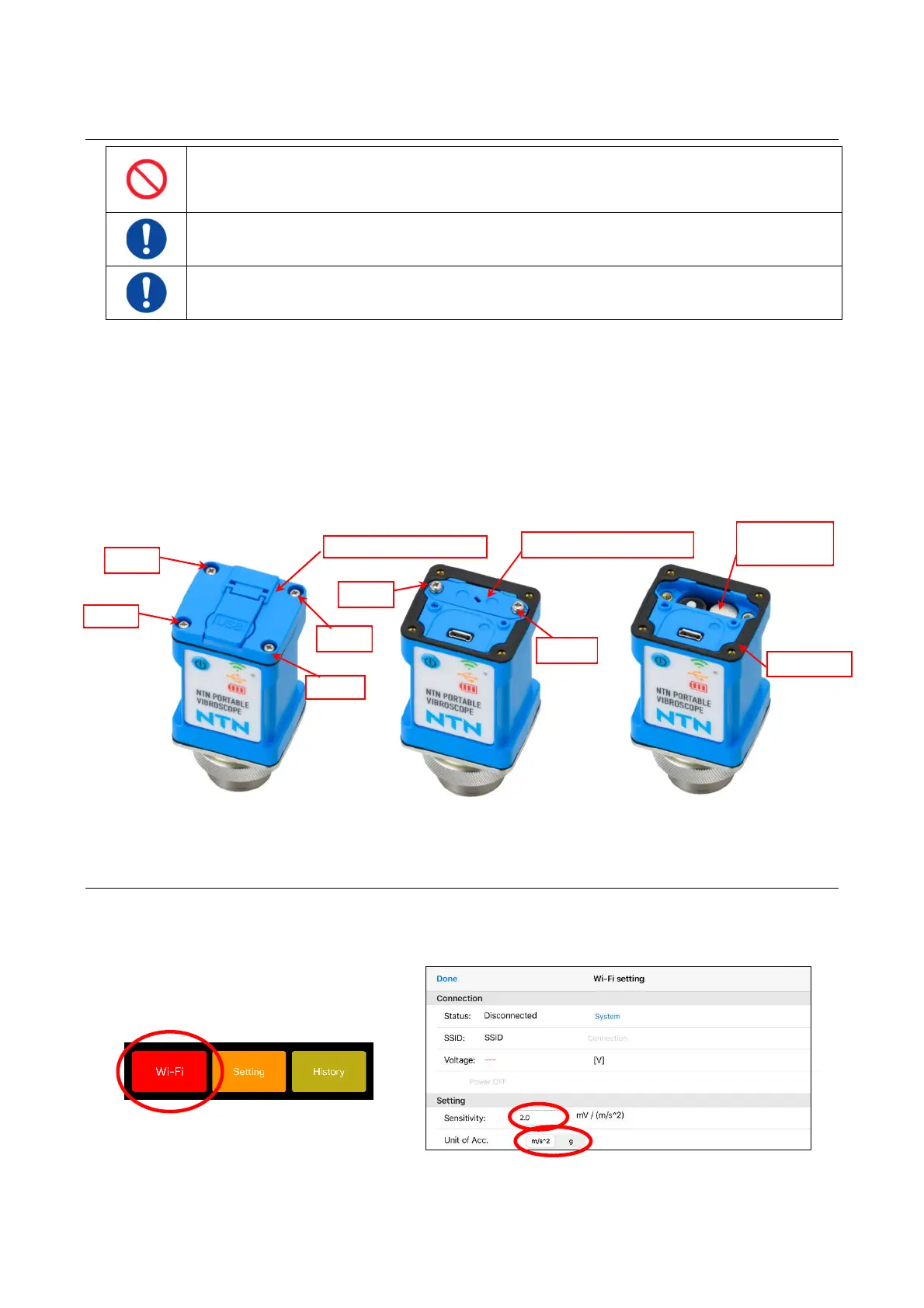

Figure 3.2 How to put in and detach chargeable battery
3.3 Input of device sensitivity and selection of unit of acceleration
This device needs to be used after inputting sensitivity described on inspection report from “Wi-Fi”
button on menu screen of application to correct measurement error. Unit of acceleration also needs to
be selected on the same screen before measurement.
Figure 3.3 Screen of input of sensitivity and select of unit of acceleration
Battery box middle lid
Screw
Screw
Screw
Screw
Screw
Screw
battery
Packing
