40
5 Specification
5.1 Outside dimensions
The external dimensions are described in the figure below. (mm)

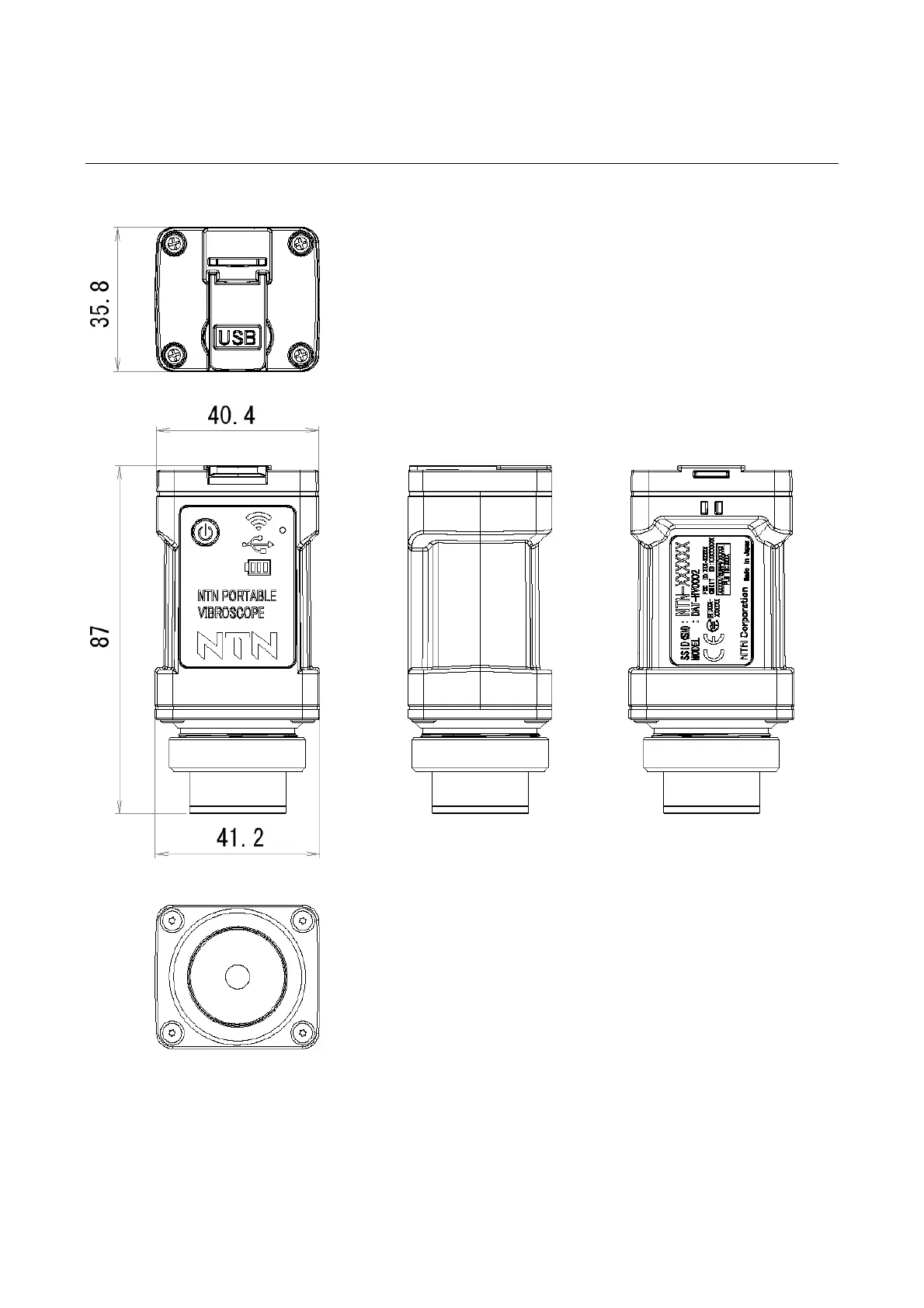

Figure 5.1 External dimensions
