Nucomm CHANNELMASTER TX7 - Figure 4-10: RS232;RS485 Connector Pin-Outs; Figure 4-11: Firewire Input Connector (Optional)

Revision 1.03
Installation 4-9
Function
Pin #
RS232 RS485
1 N/C N/C
2 RX / IN RX/A
3 TX / OUT TX/A
4 N/C N/C
5 GND GND
6 N/C TX/B
7 N/C N/C
8 N/C RX/B
9 +11Volts +11Volts

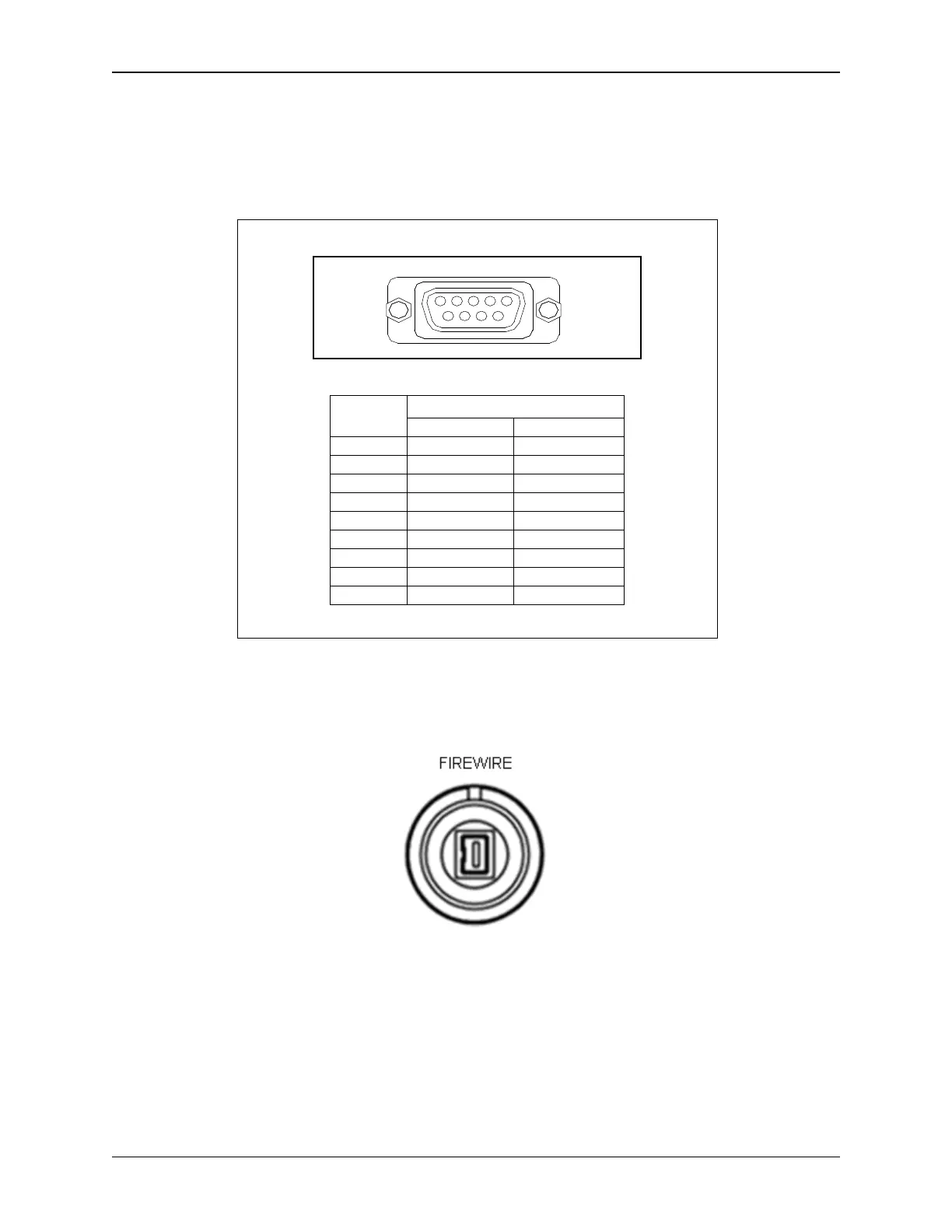

Figure 4-10: RS232/RS485 Connector Pin-Outs
Figure 4-11: Firewire Input Connector (Optional)
(Contact Nucomm for availability of this option.)
1
6
9
5
RS 232 (DB9
-
F)
