Nucomm CHANNELMASTER TX7 - Figure 4-14: 3-PIN XLR Input Pin Assignments (2 Audio Inputs)

Revision 1.03
4-12 ChannelMaster TX7 Transmitter
LEFT XLR CONNECTOR PIN-OUTS
XLR PIN-
OUT
SIGNAL DESCRIPTION
2 A1+ Analog 1 / AES 1 +
1 A1 GND Analog 1 Ground
3 A1- Analog 1 / AES 1 -
SHELL SHELL Earth (Chassis) Ground
RIGHT XLR CONNECTOR PIN-OUTS
XLR PIN-
OUT
SIGNAL DESCRIPTION
2 A2+
Analog 2 + , Optional Phantom
Power Output
1 A2 GND Analog 2 Ground
3 A2-
Analog 2 - , Optional Phantom
Power Output
SHELL SHELL Earth (Chassis) Ground

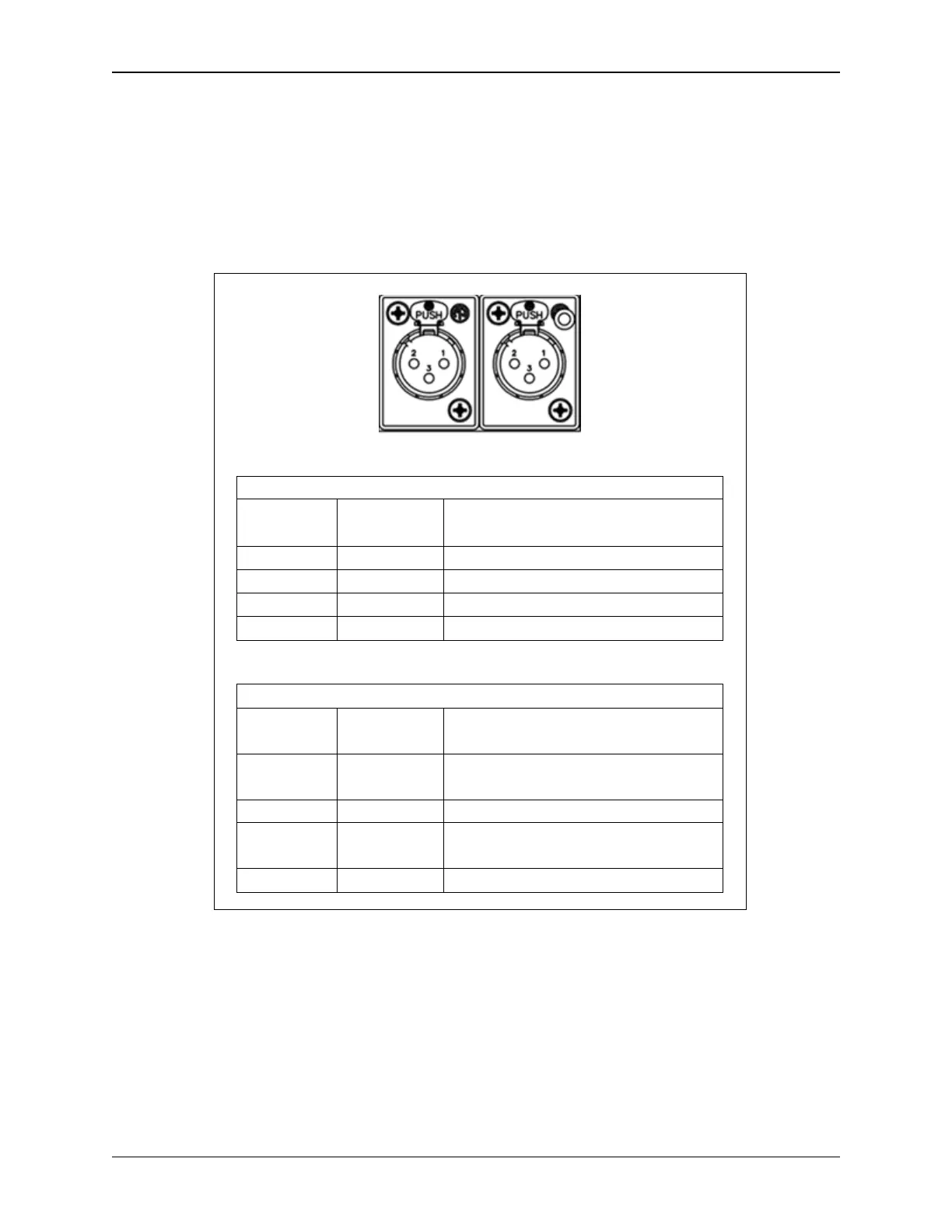

Figure 4-14: 3-PIN XLR Input Pin Assignments (2 Audio Inputs)
