Revision 1.03

4-10 ChannelMaster TX7 Transmitter

CMTX7 Front Panel Connector Mating Plug

Nucomm P/N: 512-M2014-015

Detoronics P/N: DT02H-14-15PN

Nucomm P/N 512-F3012-015

Mil-C-26482, Series 1

P/N: MS3116J-14-15S

CM Transmitter Audio Cable

CM Transmitter 17-Pin

Audio Connector

PIN-OUT

XLR

PIN-OUT

XLR

Signal

DESCRIPTION

J 2 A1+ Analog1/AES1

H 1 A1 GND Analog1/AES1 Ground

G 3 A1- Analog1/AES1

M 2 A2+ Analog2

L 1 A2 GND Analog2 Ground

K 3 A2- Analog2

F 2 A3+ Analog3/AES2

E 1 A3 GND Analog3/AES2 Ground

D 3 A3- Analog3/AES2

C 2 A4+ Analog4

B 1 A4 GND Analog4 Ground

A 3 A4- Analog4

I - - Not Connected

SHELL SHELL SHELL Earth (Chassis) Ground

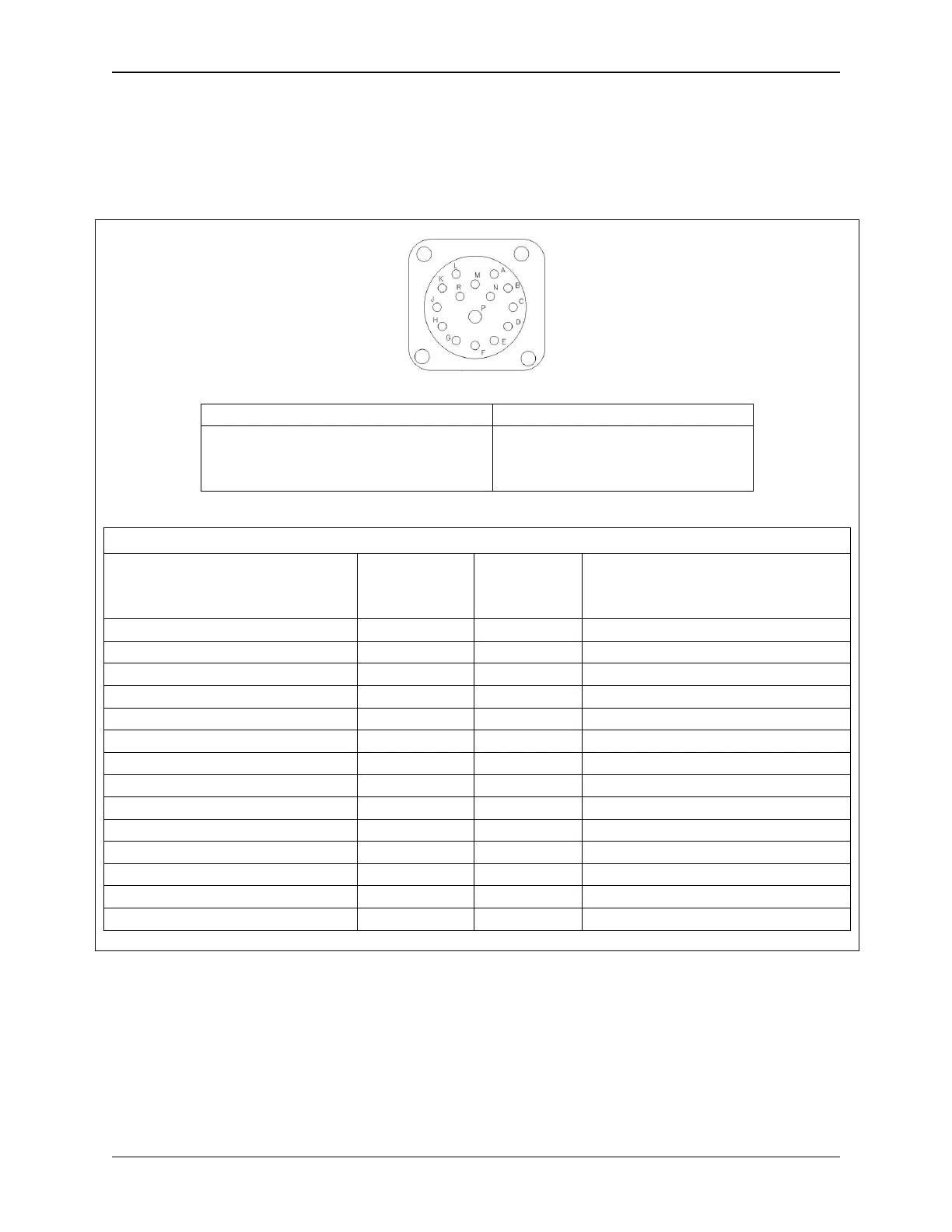

Figure 4-12: Audio Cable Connections
