Nvidia ConnectX-6 Dx User Manual

25
4.
5.
1.
2.
a.
b.
c.
d.
3.

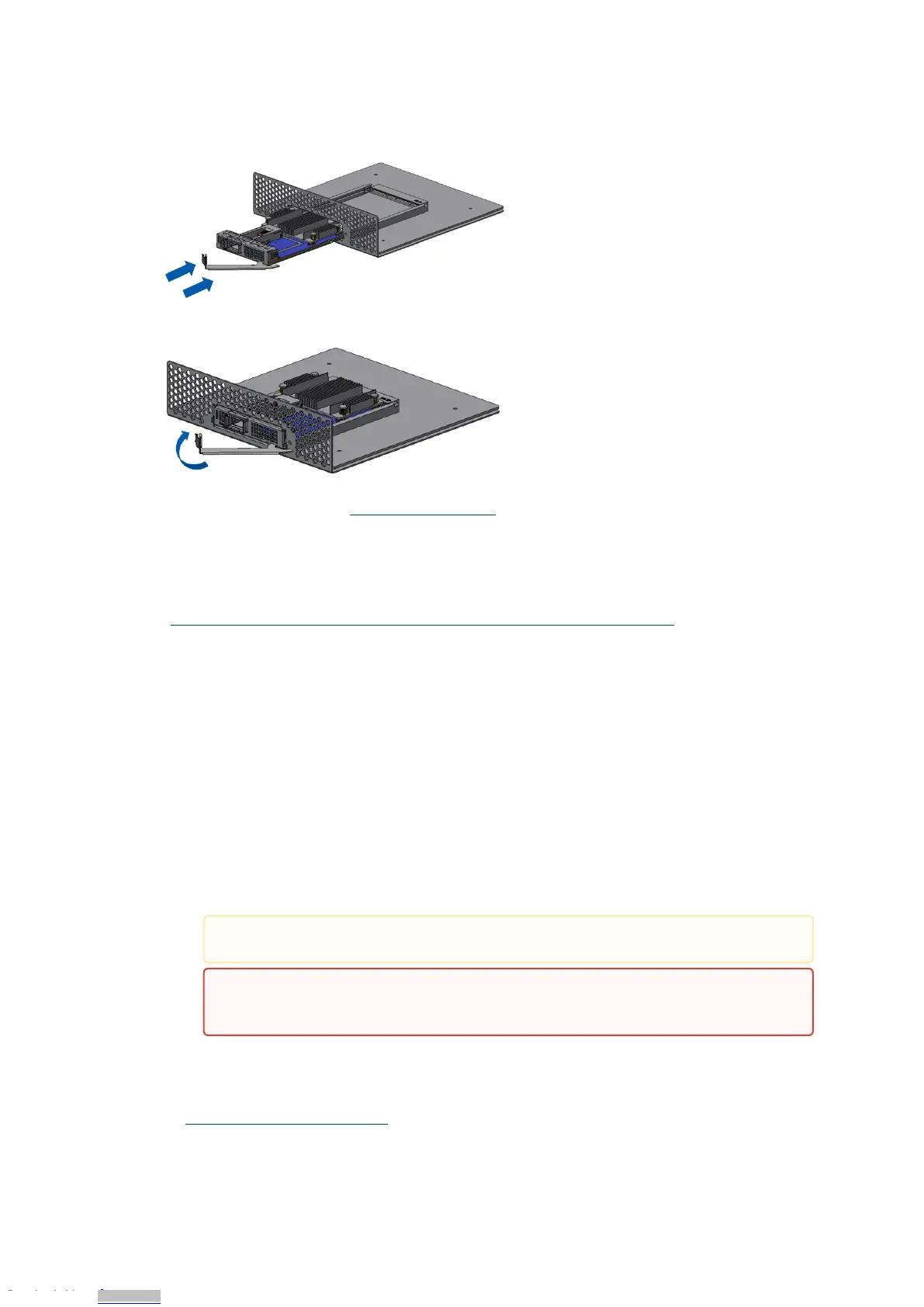

Push the card until connectors are in full mate.
Make sure the ejector latch is open before inserting the card.
To secure the card, close the ejector.
Cables and Modules
To obtain the list of supported NVIDIA cables for your adapter, please refer to theCables Reference
Tableathttp://www.nvidia.com/products/interconnect/cables-configurator.php.
Cable Installation
All cables can be inserted or removed with the unit powered on.
To insert a cable, press the connector into the port receptacle until the connector is firmly
seated.
Support the weight of the cable before connecting the cable to the adapter card. Do
this by using a cable holder or tying the cable to the rack.
Determine the correct orientation of the connector to the card before inserting the
connector. Do not try and insert the connector upside down. This may damage the
adapter card.
Insert the connector into the adapter card. Be careful to insert the connector straight
into the cage. Do not apply any torque, up or down, to the connector cage in the
adapter card.
Make sure that the connector locks in place.
After inserting a cable into a port, the Yellow or Green LED0 indicator will light when the
physical connection is established (that is, when the unit is powered on and a cable is
plugged into the port with the other end of the connector plugged into a functioning port).
SeeAdapter Card LED Operations.
To uninstall the adapter card, seeUninstalling the Card.
When installing cables, make sure that the latches engage.

Always install and remove cables by pushing or pulling the cable and
connector in a straight line with the card.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Nvidia ConnectX-6 Dx Specifications

General

Product Name	Nvidia ConnectX-6 Dx
Category	Adapter
Network Interface	Ethernet, InfiniBand
Port Speed	200Gb/s
Form Factor	Low Profile
PCIe Interface	PCIe 4.0 x16
Operating Temperature	0°C to 55°C
Product Type	Network Adapter
InfiniBand Support	Yes
RoHS Compliance	Yes
Virtualization Support	SR-IOV
Data Link Protocol	Ethernet, InfiniBand
Ports	2
Ethernet Standards	IEEE 802.3
Security Features	IPsec, TLS
