64
Environmental
Temperature Operational 0°C to 55°C
Non-operational -40°C to 70°C
Humidity Operational 10% to 85% relative humidity
Non-operational 10% to 90% relative humidity
Altitude
(Operational)
3050m
Regulatory
Safety
CB / cTUVus / CE
EMC CE / FCC / VCCI / ICES / RCM
RoHS RoHS compliant
a.ConnectX-6 Dx adapters supplement theauto-negotiation specification to get better bit error
rates and longer cable reaches. This supplemental feature only initiates when connected to another
NVIDIA Ethernetproduct.
b. Typical power for ATIS traffic load.
c. For both operational and non-operational states.

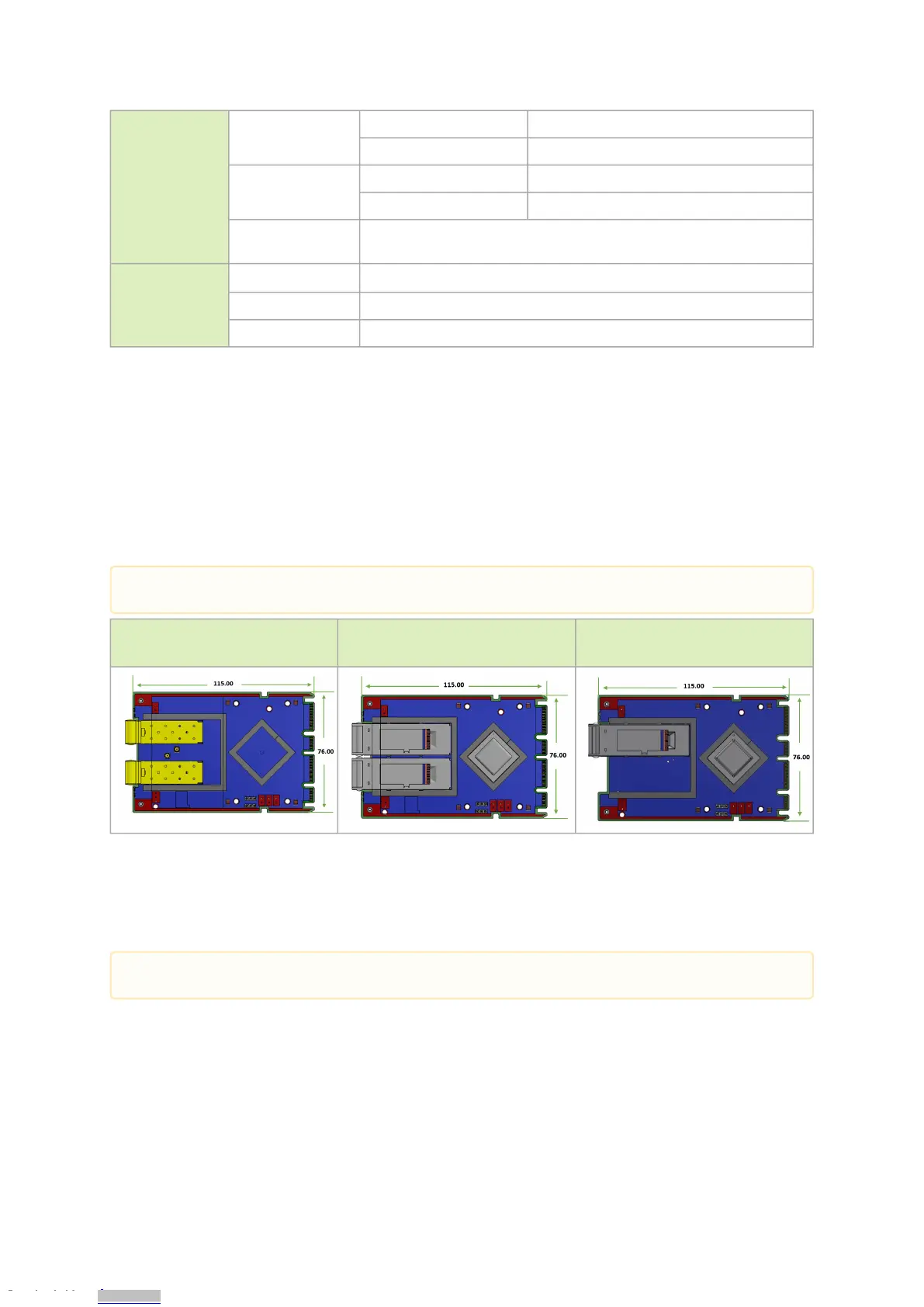

Board Mechanical Drawing and Dimensions
ConnectX-6 Dx SFP28/SFP56
OCP 3.0
ConnectX-6 Dx Dual-Port QSFP56
OCP 3.0
ConnectX-6 Dx Single-Port
QSFP56 OCP 3.0
Bracket Mechanical Drawings and Dimensions
All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.
All dimensions are in millimeters. The bracket's mechanical tolerance is +/- 0.25mm.
