27
5.
1.
2.
3.
1.
2.
3.
4.
In theValue display box, check the fields VEN and DEV (fields are separated by '&'). In the
display example above, notice the sub-string "PCI\VEN_15B3&DEV_1003": VEN is equal to
0x15B3 – this is the Vendor ID of NVIDIA; DEV is equal to 1018 (for ConnectX-6 Dx) – this is a
valid NVIDIA PCI Device ID.
Card Extraction Instructions
Safety Precautions
The adapter is installed in a system that operates with voltages that can be lethal. Before
uninstalling the adapter card, please observe the following precautions to avoid injury and prevent
damage to system components.
Remove any metallic objects from your hands and wrists.
It is strongly recommended to use an ESD strap or other antistatic devices.
Turn off the system and disconnect the power cord from the server.
Cards Extraction Instructions

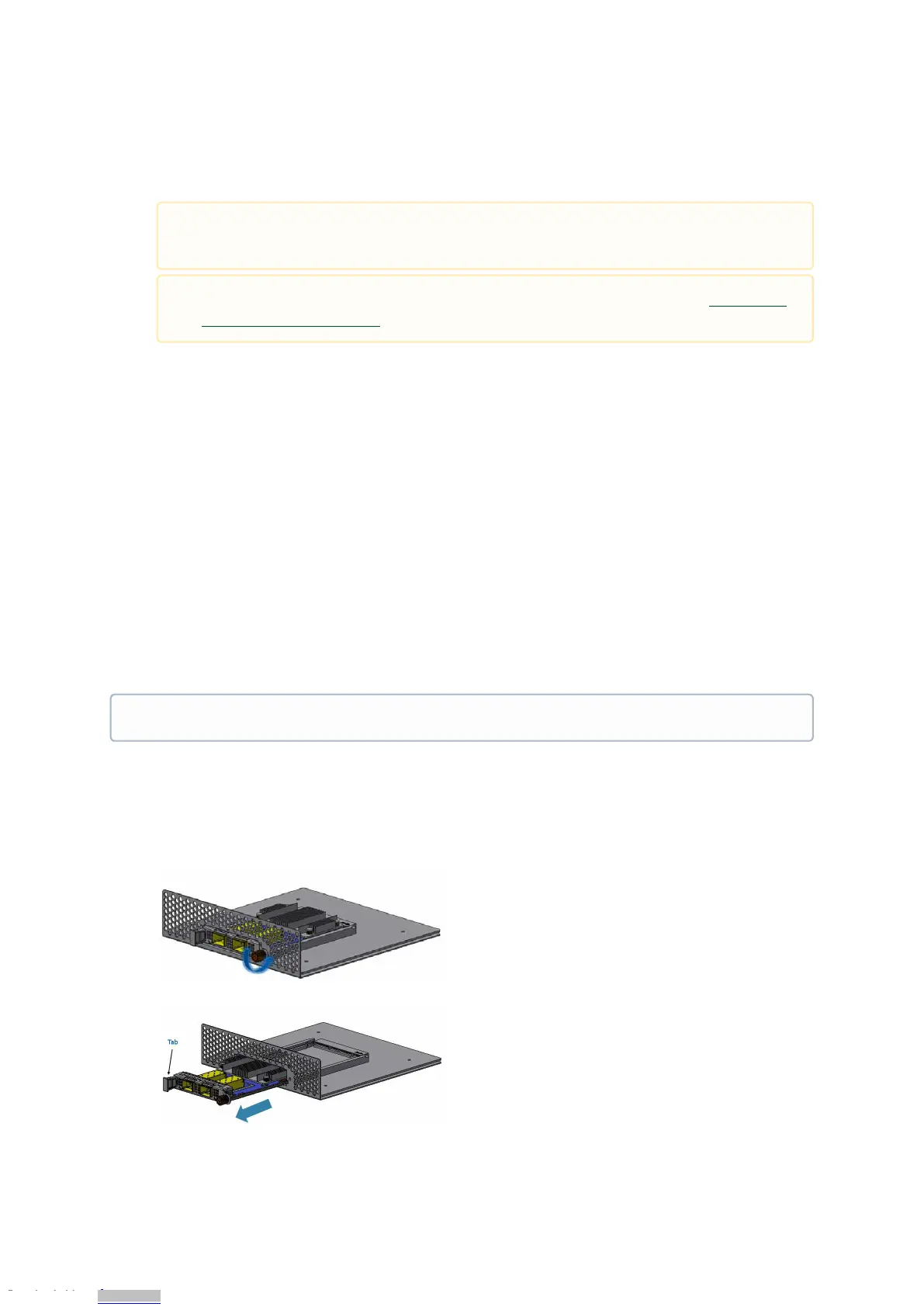

Cards with Thumbscrew (Pull-tab) Bracket
Verify that the system is powered off and unplugged.
Wait 30 seconds.
Rotate the captive screw counterclockwise.
While holding the tab, carefully pull out the adapter card.
If the PCI device does not have an NVIDIA adapter ID, return to Step 2 to check
another device.
The list ofNVIDIA PCI Device IDs can be found in the PCI ID repository at http://pci-
ids.ucw.cz/read/PC/15b3.
Please note that the following images are for illustration purposes only.
