Nvidia ConnectX-6 Dx User Manual

28
1.
2.
3.
1.
2.
3.
4.

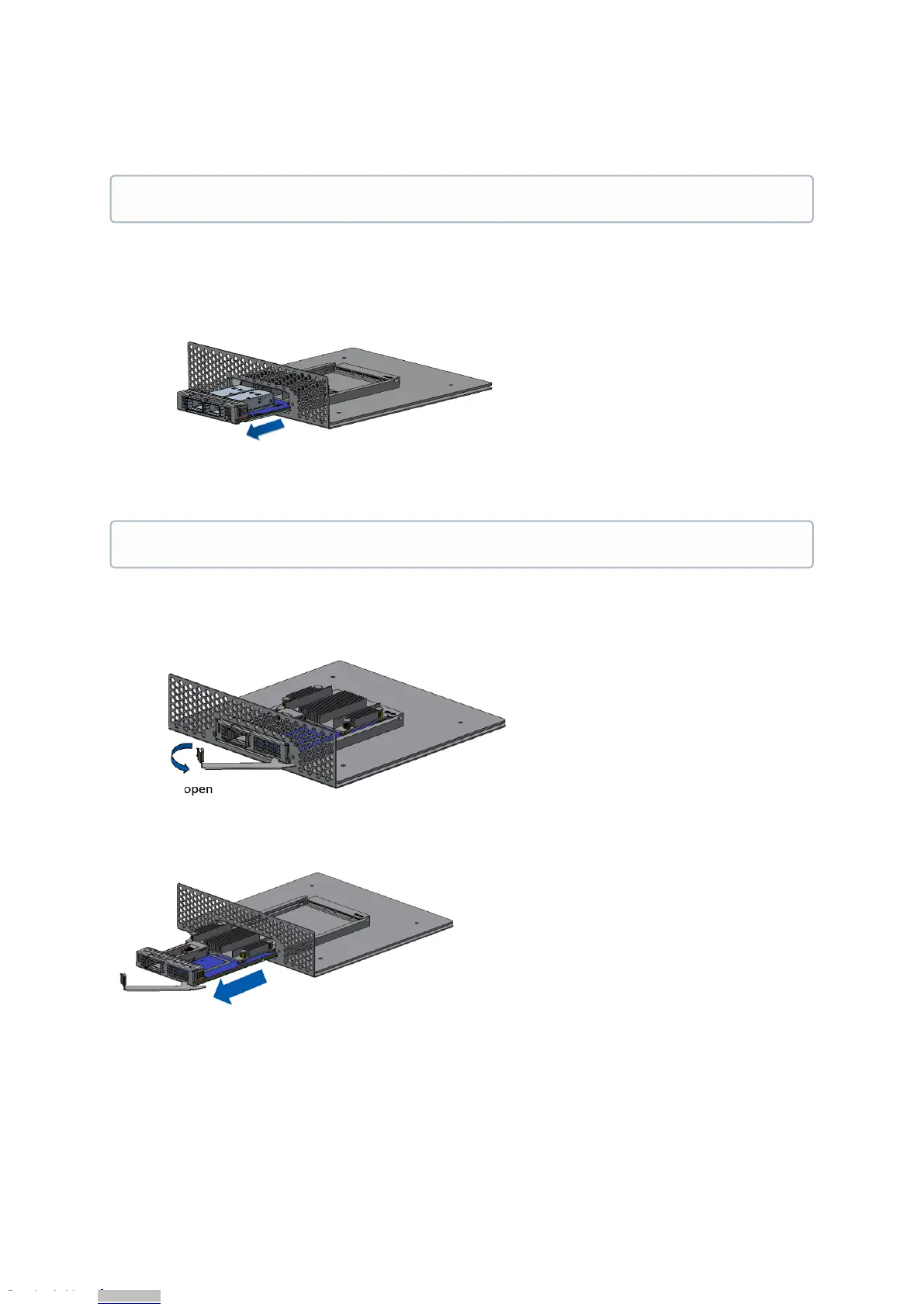

Cards with Internal-Lock Bracket Extraction
Verify that the system is powered off and unplugged.
Wait 30 seconds.
Gently extract the adapter card from the server.
Cards with Ejector Latch Extraction
Verify that the system is powered off and unplugged.
Wait 30 seconds.
Open the ejector latch.
Gently extract the adapter card from the server.
Please note that the following images are for illustration purposes only.

Please note that the following images are for illustration purposes only.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Nvidia ConnectX-6 Dx Specifications

General

Product Name	Nvidia ConnectX-6 Dx
Category	Adapter
Network Interface	Ethernet, InfiniBand
Port Speed	200Gb/s
Form Factor	Low Profile
PCIe Interface	PCIe 4.0 x16
Operating Temperature	0°C to 55°C
Product Type	Network Adapter
InfiniBand Support	Yes
RoHS Compliance	Yes
Virtualization Support	SR-IOV
Data Link Protocol	Ethernet, InfiniBand
Ports	2
Ethernet Standards	IEEE 802.3
Security Features	IPsec, TLS
